Based on Xilinx's ZYNQ Ultrascale+ MPSoC series FPGA chip design, Used in industrial fields such as factory automation, machine vision, industrial quality inspection, etc.
Supports both Base, Medium, and Full modes
2 SDR connectors
Supports PCIE 3.0 X8 X4 X1 mode, compatible with PCIE 2.0, with a maximum theoretical bandwidth of 8GB/s
INTEL CPU platform、AMD CPU platform、NVDIA Jatson platform

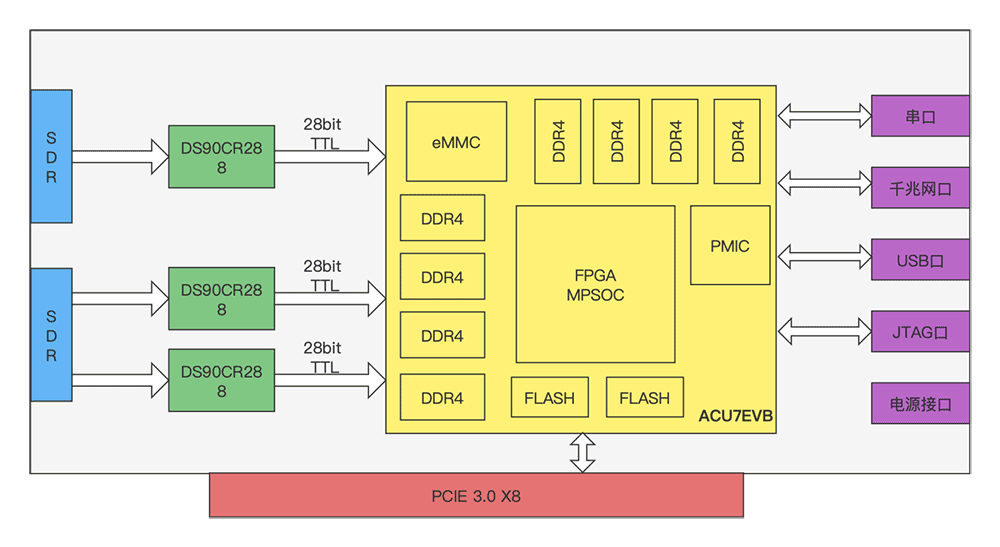

·Design of XYNQ Ultrascale+MPSoC Series FPGA Chip Based on Xilinx Company
·Simultaneously supports Base, Medium, and Full modes, with a maximum clock frequency of 85Mhz
·Supports PCIE 3.0 bus X1/X4/X8
·Supports H.264/H.265 encoding and decoding
·Supports programmability and can incorporate custom algorithms
·Support V4L2 calls
·Supports low latency
·Support external black field trigger signal input
Data bandwidth up to 7Gbit/s
Supports PCIE 3.0 X8 X4 X1 mode, compatible with PCIE 2.0, with a maximum theoretical bandwidth of 8GB/s
2 SDR connectors
Up to 600K programmable logic unit, capable of completing various complex video preprocessing
Support Linux operating system, using V4L2 framework driver
Supports AXI interface extension of peripherals and supports the use of MSI interrupts by peripherals
Supports standard IIC and UART devices
Support video formats：YUV2、RGB888
Supports memory mode, supports USERPTR and MMAP
Support camera configuration and query operations
Provide display of upper computer DEMO
HIKROBOT Industrial Camera MV-CH050-10CC
The platform has tested the Intel 12th generation Core i5-12400 processor
Testing the AMD Ryzen 9 5900X processor
Tested Xavier and Orin architectures
Board Size
Standard full height dimensions
interface
Dual SDR female connector
Host Operating System
Tested Linux kernel version: 5.4.0-91-generic
Software support
Support Linux operating system, using V4L2 framework driver
Supports AXI interface extension of peripherals and supports the use of MSI interrupts by peripherals
Supports standard IIC and UART devices
Memory mode supports USERPTR and MMAP
Supports configuration and query operations through IIC bus
Support common operations：
VIDIOC_DQBUF
VIDIOC_QBUF
VIDIOC_STREAMOFF
VIDIOC_STREAMON
VIDIOC_REQBUFS
VIDIOC_QUERYBUF
VIDIOC_QUERYCAP
VIDIOC_QUERYCTRL
VIDIOC_G_PARM
VIDIOC_S_PARM
VIDIOC_G_FMT
VIDIOC_S_FMT
VIDIOC_G_CTRL
VIDIOC_S_CTRL
operation temperature
-40℃ - +70℃
Working humidity
10% - 90%
storage temperature
-40℃ - +85℃
Storage humidity
10% - 90%
