Model
FH9712Price
$ 3600
Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Board XUZU2CG
4 channels12bit 250M AD9613 Acquisition LPC FMC Board
Xilinx Kintex UltraScale FMC HPC Optical fiber FPGA Development board XCKU040
FMC to 4-way MIPI module LPC interface FMC sub board
PANGOMICRO SoM Boards Logos SeriesPGL22G Learning board image
Supports 16 GMSL2/GMSL1 cameras, up to 8MP resolution cameras, using Anfeno Z Code FAKRA Gauge Coaxial Connector

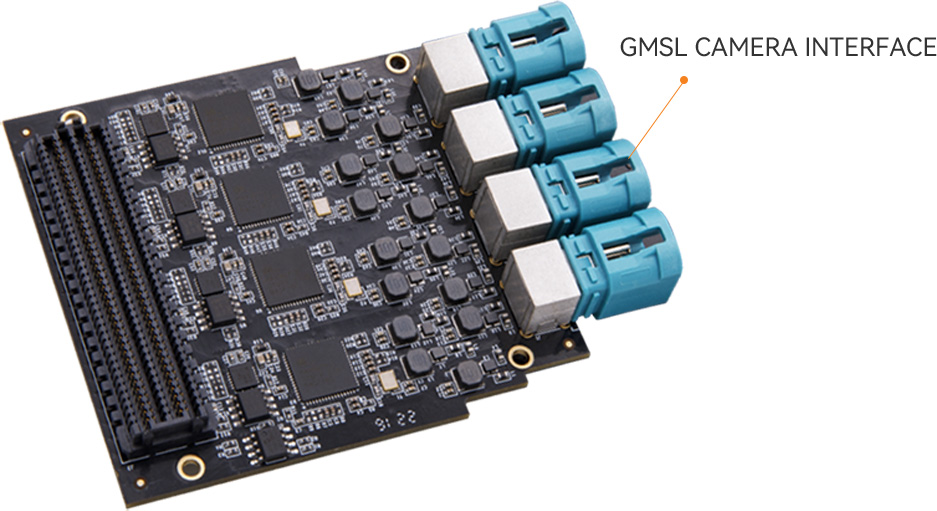

GMSL1/2 Camera Input
Supports 16-channel camera, up to 8MP resolution camera
Cable length support
Up to 40m (3Gbps) in GMSL1 mode
Up to 20m (6Gbps) in GMSL2 mode
Gauge connector
Use Anfeno Z Code FAKRA Gauge Coaxial Connector
Input Image Format
Supports RAW8 / 10 / 12 / 14 / 16 / 20, RGB565 / 666 / 888, YUV422 8 / 10bit video image formats. Remote camera can be configured via I2C
FMC interface
Standard HPC connector
Currently, the FH9712 module can only adapt to Z7-P, Z19, Z19-P three development boards

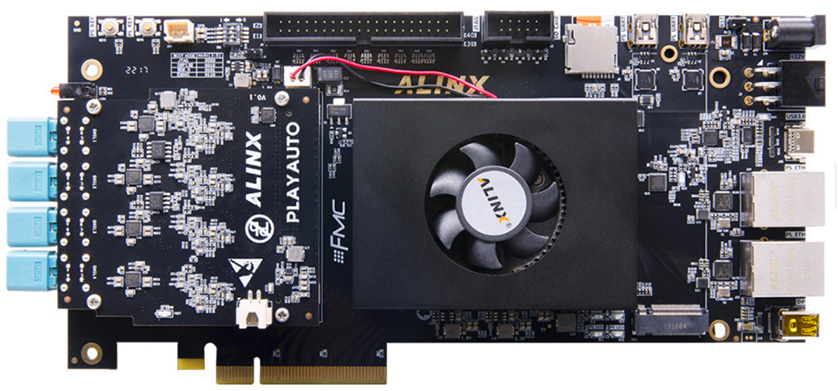

Installation diagram for FH9712 module and Z7-P
Automatic Driving System, Data Acquisition Vehicle, Automatic Power Change Station
Autopilot System
Data Acquisition Vehicle
Automatic station change
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
