XILINX Zynq-7000 SoC FPGA Development Board XC7Z020

    XC7Z020

    • Model

      AX7020
    • Email

      David.ding@alinx.com
    • Ean

      6971390270578
    • Price

      $ 280

    Related


    Zynq Entry-Level Board

    Supports Python Development



      Techinal Support

      Supporting Verilog HDL Demos and Docuemnts All Doucments Saved in Dropbox, after buy the board, email to get it.

      Course S1 Basic Tutorial
      01: Software Package Introduction and FPGA Board Inspection
      02: Introduction to ZYNQ
      03: Vivado development environment
      04: PL's "Hello World" LED experiment
      05: HDMI output experiment
      06: Experience ARM, bare metal output "Hello World"
      07: PS lights up the LED lights of the PL
      08: PS timer interrupt experiment
      09: PL key interrupt experiment
      10: Ethernet Experiment (LWIP)
      11: Custom IP experiment
      12: Use VDMA to drive HDMI display


      13: Curing Programes
      14: Install Virtual Machine and Ubuntu System
      15: Ubuntu installs the Vivado software for Linux
      16: Petalinux tool installation
      17: NFS service software installation
      18: Customizing Linux with Petalinux
      19: Develop Linux programs using the SDK
      20: GPIO experiment under Linux
      21: HDMI display under Petalinux
      22: Use the Debian desktop system
      23: Making QSPIFlash boot Linux
      24: NFS service software installation

      Course S2 SDK Application Tutorial
      01: PS side MIO operation—light up the LED Light
      02: PS side MIO operation—Key interrupt
      03: PS side UART read and write control
      04: Use of XADC
      05: PL read and write PS DDR data
      06: Realize PS and PL data interaction through BRAM
      07: Use of dual core AMP
      08: Use of Free RTOS under ZYNQ
      09: DMA loop test
      10: Use of DMA--DAC waveform generator ( AN108 )
      11: Use of DMA--ADC oscilloscope ( AN108 )
      12: Use of DMA--ADC oscilloscope ( AN926 )
      13: Use of DMA--ADC oscilloscope ( AN706 )




      14: Use of the SG DMA based on ADC
      15: Use the SG DMA based on DAC module ( AN9767 ) module ( AN926 )
      16: OV5640 camera acquisition display (1)
      17: OV5640 camera acquisition display (2)
      18: Binocular camera Ethernet transmission
      19: Use of 7 inch LCD module
      20: Use of 7-inch touch screen disaply
      21: SD card read and write operation BMP picture display
      22: SD card read and write operation camera capture
      23: Ethernet Transmission ADC Acquisition Based on AN926 Module
      24: Ethernet Transmission ADC Acquisition Based on AN706 Module
      25: Ethernet Transmission--ADC Acquisition Based on AN108 Module
      26: Remote update QSPI Flash based on UDP/TCP

      Course S3 Linux Application Tutorial
      01: Getting to Know HLS
      02: Status Indicator LED
      03: Floating Point Coprocessing
      04: Video Color Bar
      05: Video Frame Buffer Read and Write Management
      06: Image Scaling Overlay


      07: Character Overlay
      08: Image Contrast Adjustment
      09: Auto Focus
      10: Edge Detection
      11: Corner Detection
      12: Fast Fourier Transform

      Course S4 Linux Application Tutorial
      01: QT application on ZYNQ
      02: OpenCV Application(USB Camera Display)
      03: Binocular Camera Module OpenCV Display
      04: Touch screen module application
      05: AXI DMA Read and Write Test


      06: DMA-based ADC Waveform Display (AN926)
      07: DMA-based ADC Waveform Display (AN706)
      08: Autorun petalinux application
      09: Appendix-Linux Common Commands

      Course S5 PYNQ Tutorial
      01: PYNQ Introduction
      02: PYNQ Get Started Quickly
      03: USB camera edge detection and face recognition


      04: Custom Overlays based on register operations
      05: Custom Overlays Contained DMA Operations
      06: ADC acquisition and display the waveform

      Course S6 PYNQ Tutorial
      01: Character Device
      02: A new way of writing character devices
      03: Device Tree and of Function
      04: Pinctrl and gpio subsystem
      05: Concurrent Processing
      06: Gpio input
      07: Timer
      08: Interrupt
      09: Blocking IO
      10: Non-Blocking IO
      11: Asynchronous IO
      12: Platform
      13: Platform and Device Tree


      14: MISC device driver
      15: Input subsystem
      16: pwm Drive
      17: I2C Driver
      18: USB Driver
      19: SPI Drive
      20: Uart Driver
      21: Block Device Driver
      22: NIC driver
      23: DMA Driver
      24: Multi-touch screen driver
      25: LCD Drive



      Product Package






      AN831 Collection Package

      AN9767 Collection Package

      AN706 Collection Package

      AN9238 Collection Package

      Video package

      Luxury Package

      FPGA Board

      AN831





      AN9767





      AN706





      AN9238





      Binocular camera





      7-Inch LCD






      Package supporting module, click to learn more


      AN831
      Audio Module


      AN9767
      Dual-Channels DA Module


      AN706
      8-Channels AD Module


      AN9238
      Dual-Channels AD Module

      AN5642
      Binocular Camera Module


       7-Inch Capacitive
      LCD Screen


      Key Features

      ·FPGA Board



      Product Parameters

      Main Parameters

      FPGA Board

      AX7020

      FPGA Chip

      XA7Z020-1CLG400I / XC7Z020-2CLG400I

      Kernel

      Dual-Core ARM Cortex-A9

      RAM

      DDR3 1GB, 32bit Bus, Data Rate 1066Mbps

      Logic Cells

      85K

      Look-Up Tables ( LUTs )

      53,200

      CLB Flip-Flops

      106,400

      Multiplier

      220

      Block RAM

      4.9Mb

      PS MIO

      8

      PL IO

      94

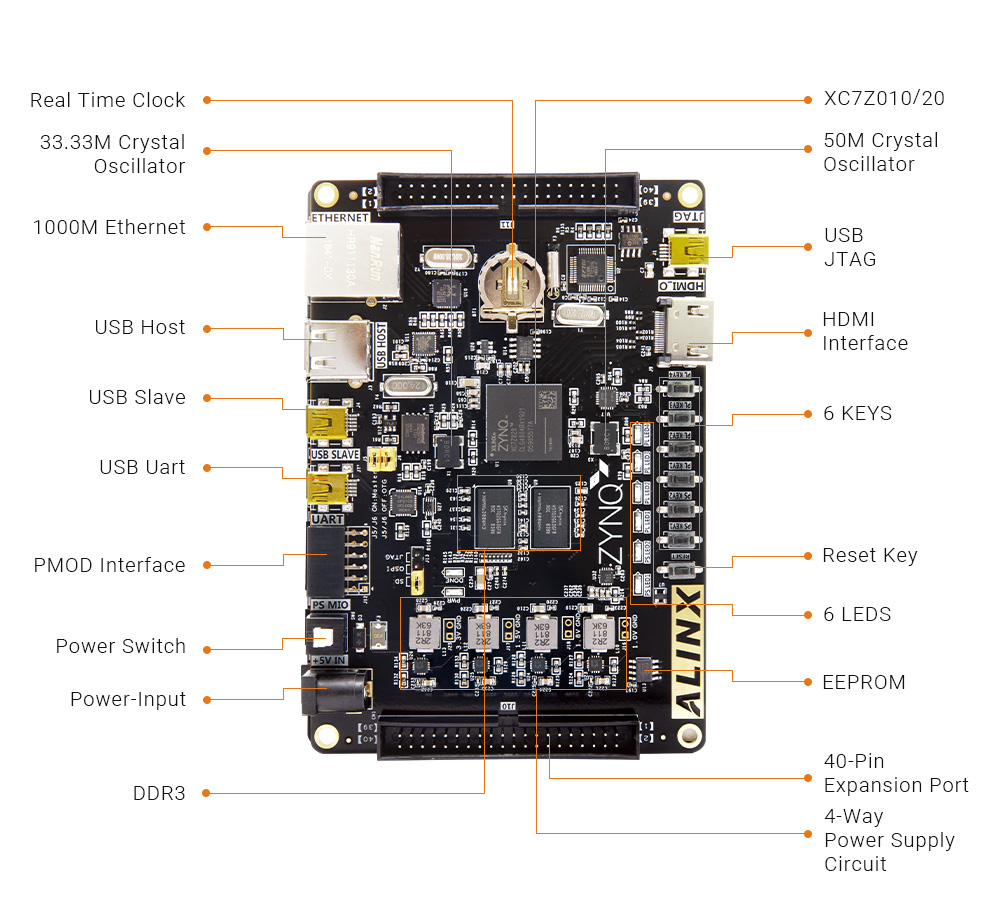

      Interface and Function

      JTAG

      1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader Use USB Cable and Onboard JTAG, Debug and Download ZYNQ System

      Gigabit Ethernet

      10 / 100 / 1000M Adaptive Ethernet Interface with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment

      HDMI

      HDMI Image and Video Output Interface, Supports 1080@60Hz

      USB HOST

      Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

      USB OTG

      Used for OTG Communication with PC or USB Device

      USB Uart

      Used for Serial Communication with PC or External Devices

      Real Time Clock

      RTC with a Battery Holder, The Battery Model is CR1220 (Voltage 3V, buy it yourself)

      EEPROM

      EEPROM 24LC04 with IIC Interface

      LED

      6 User LEDs, 2 Controlled by PS, 4 Controlled by PL

      Keys

      7 Keys, 1 CPU Reset Key, 2 PS Control keys, 4 PL Control Keys

      Crystal Oscillator

      33.333Mhz, Provide Stable Clock Source for the PS System
      50MHz, Provide Extra Clock for PL Logic

      TF Card Slot

      Insert Micro SD TF Card, Store Operating System Image and File System

      PMOD

      12-Pin Connectors ( 0.1 inch Pitch ) , Expand the MIO of ZYNQ PS System

      Expansion Port

      Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the IOs of ZYNQ PL Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules

      Power Supply Parameters

      Voltage Input

      +5V DC

      Current Input

      Max. Current 2A

      Package List

      FPGA Board

      1

      TF CARD

      1

      Mini USB Cable

      2

      Card Reader

      1

      5V Power Adapter

      1

      Transparent Protection Board

      1

      Structure Size

      Size Dimension

      5.12 inch x 3.54 inch

      Number of Layers

      8-Layer PCB, Reserved Independent Power Layer and GND Layer



      With a Super Combination of Memory DDR3

      Linux Operating System Dual-Core ARM Cortex-A9

      CPU Main Frequency 767MHz ; RAM 1GB




      No Xilinx Downloader Required Plug in and Use, Reliable and Stable

      JTAG Debugging Directly Onboard USB JTAG Debug Interface

      Integrated Download and Debug Circuit Complete Functions and Fast Speed



      AI Intelligence / Industrial Automation

      Camera Acquisition System

      Intelligent Identification, Medical Security, Vehicle Digital, Industrial Control, Smart Grid


      Dual Lens Camera Module On-Board Demo

      The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the ZYNQ Development Board. The ZYNQ Development Board Runs the Linux Operating System, and the Video Data is Displayed Using QT to Realize Binocular Display Simultaneously.

      Data Collection Display

      Signal Data Acquisition System

      AN9767 / AN706 Module On-Board Demo


      The Signal Source Output Signal is Connected to the AN9767 / AN706 Module, and is Displayed to the Monitor through the HDMI Interface of the ZYNQ Development Board. Run the Linux Operating System and use QT to Draw Waveform Data. The Whole Process Involves Data Transmission Between PL and PS, and Software Development under the Linux System.


      The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
