XC7K325
Model
AV7K325Ean
6971390270066Price
$ 1320
XILINX Zynq-7000 PCie FMC HPC FPGA Development Board XC7Z100
Xilinx Kintex UltraScale FMC HPC Optical fiber FPGA Development board XCKU040
XILINX Zynq-7000 SoC FPGA Development Board XC7Z020
Xilinx Zynq UltraScale+ MPSoC XCZU2CG FPGA Development Board
Xilinx Zynq UltraScale+ MPSoC XCZU3EG FPGA Development Board
Two 4K@30Hz HDMI Input, Two 4K@30Hz HDMI Output PCIE 2.0 x8, 10G SFP x4
Supporting Verilog HDL Demos and Docuemnts. All Doucments Saved in Dropbox, after buy the board, email to get it.
00. Vivado 2017.4 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. LM75 Temperature Test Experiment
07. SD Card Read and Write Experiment
08. HDMI Programming Output Experiment
09. DDR3 Read Write and Simulation Experiment
10. Recording and playback Experiment of AN831 Module
11. SD Card Music Player Experiment
12. Character Display Experiment
13. SD Card Read BMP Picture Display Experiment
14. OV5640 Camera Display Experiment
15. SOBEL Edge Detection Experiment
16. AD7606 Waveform Display Experiment
17. ADDA Testing Experiment
18. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
19. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
20. GTX Fiber Optic Communication IBERT Testing Experiment
21. GTX Fiber Optic Data Communication Experiment
22. Video Image GTX Fiber Optic Communication Testing Experiment
23. PCIe Speed Test Experiment
24. PCIe HDMI Input Experiment
25. PCIe HDMI Output Experiment
26. PCIe Xdma Interface Experiment Testing Experiment
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
Downloader Cable USB
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
4.3-inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
*Learn More about the Core Board, Click to View >
FPGA Chip
XC7K325T-2FFG900I
PCIe Gen2
1
Logic Cells
326,080
Transceiver
16x 12.5Gb/s max
Look Up Tables (LUTs)
50,950
CLB Flip-Flops
407,600
Block RAM
16,020Kb
DSP
840
Temperature class
Industrial Grade, -40℃-85℃
XADC
1x 12bit 1Mbps AD
Speed Grades
-2
Active Differential Crystal
2
DDR3
4x 512MB DDR3, 64 bit Bus, Data Rate1600Mbps
QSPI Flash
128Mbit, Used as FPGA User Data Storage
Ｃrystal Oscillator
200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver
Transceiver
16 GTP, each up to 12.5Gb/s, Used for SFP and PCIe Data Communication
PCIe 2.0 x 8
Used for PCIe communication with computer motherboard Single Channel Communication Rate can be up to 8Gbps
SFP X 4
The Receiving and Transmitting speed of Each Channel is up to 10Gb/s
JTAG
Standard JTAG Port for Debug and Download of FPGA Program
HDMI
2 HDMI Input / Output each, Supports up to 4K@30Hz
USB Uart
Used for Serial Communication with PC or External Devices
SATA Interface
2 SATA Interface, External Hard Disk
SD Card
1 Micro SD Card Slot, Support the SD Mode and SPI Mode
LED
2 LED In the Core Board, 5 LEDs in the Carrier Board
Keys
2 User Keys
40-Pin Expansion Ports
Reserved 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).
Voltage Input
+12V DC
Current Input
Max. Current 3A
FPGA Board
1
DC Fan ( Fixed on the Board )
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1

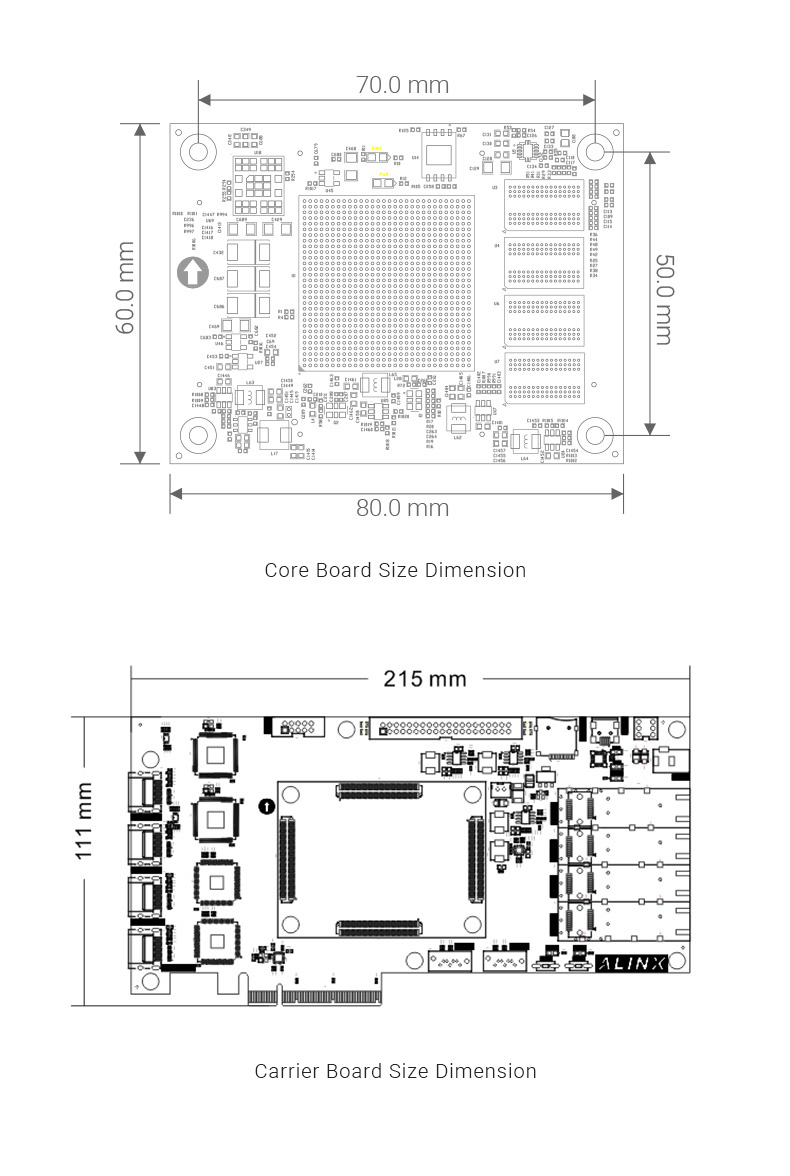

Size Dimension
Core Board 3.15 inch x 2.36 inch, Carrier Board 8.46 inch x 4.37 inch
Number of Layers
8-Layer Core Board PCB, 4-Layer Carrier Board PCB Reserve Independent Power Layer and GND Layer
SFP Communication, PCIe Accelerator Video Processing, High-Data Transmission
Core Board + Carrier Board Customers Can Directly Use the Core Board in their Design

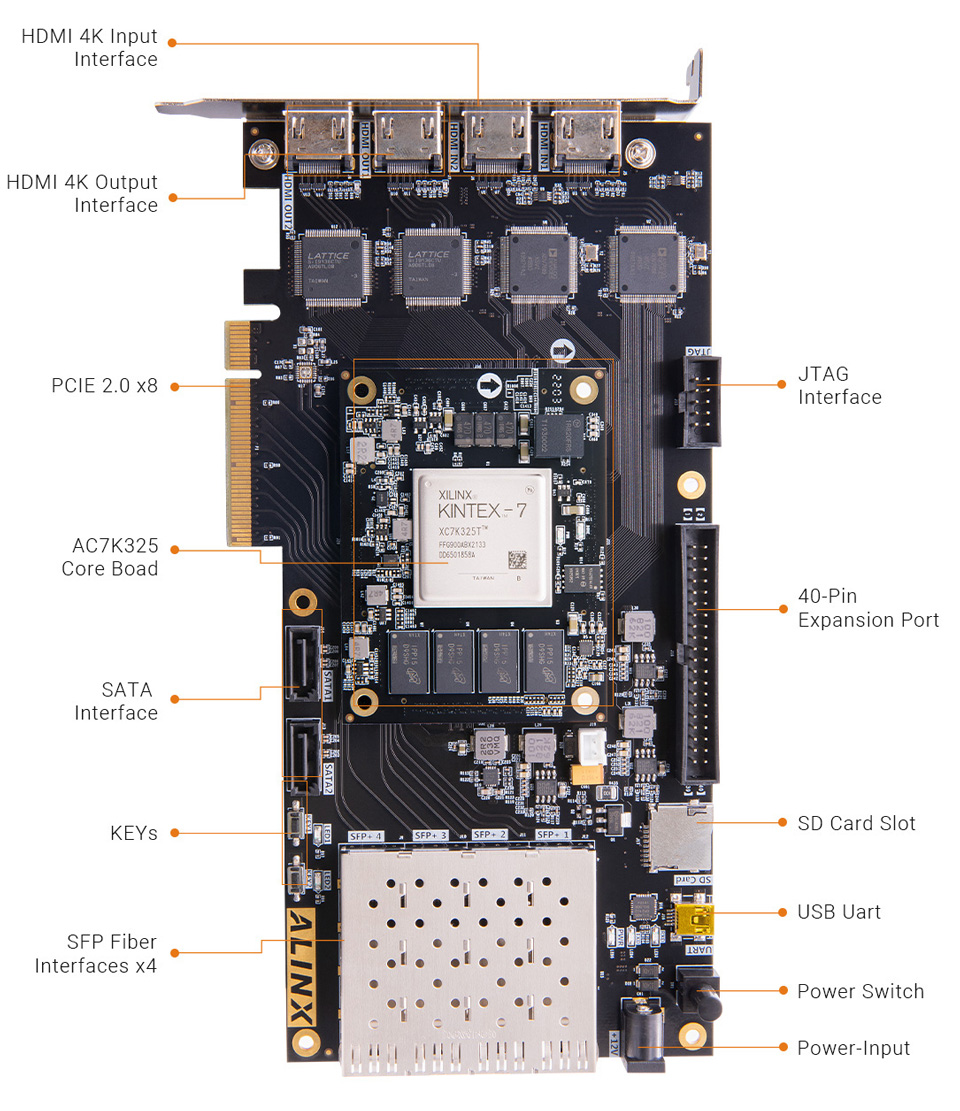

Rich Interfaces in the Carrier board. PCIe x4, 4 SFP, USB Uart, SD Card Slot 2 HDMI Output, Supports 4K@30Hz Output 2 HDMI Input, Support 4K@30Hz Input
Meet the Various PCIe High-Speed Data Transmission Video Image Processing and Industrial Control Requirements
Verify PCIE Solutions and Accelerate PCIE Development
The video signal (4K) is collected through the HDMI input interface, uploaded to the computer through the PCIE interface, and the upper computer displays the collected video image in real time
The Host Computer Grabs the Computer Desktop, and Transmits it to the FPGA through the PCIE Interface. The FPGA Outputs through the HDMI Interface, and the Monitor Displays in Real Time
Meet Various PCIe High-Speed Data Transmission, Video Image Processing and Industrial Control Requirements
Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid
Dual Lens Camera Module On-Board Demo
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.
AN9767 / AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module,
and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,
Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
