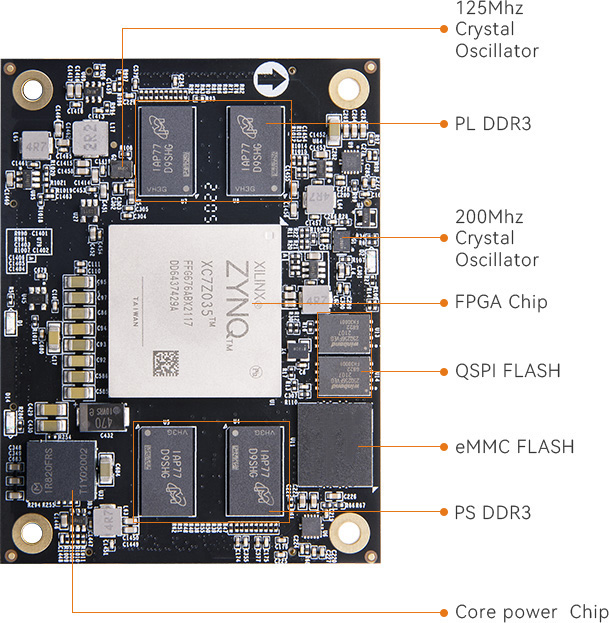

Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z035

Core Board

AC7Z035B

FPGA Chip

XC7Z035-2FFG676I

Chip CPU

2x ARM Cortex-A9, Dominant frequency 800MHz

PL side memory

1GB DDR3, Data rate 1600Mbps

PS side memory

1GB DDR3, Data rate 1066Mbps

Speed Grades

-2

Chip Level

Industrial Grade

Working Temperature

-40°C~85°C

Number of logical units

275k

Lookup table

171900

trigger

343800

Multiplier

900

transceiver

8 -Channels, PCIE Gen2 x8

Block RAM

17.6Mbit

MIO

37

PL IO

144

Adjustable voltage IO

96

LVDS differential pair

48 pairs

EMMC FLASH

8GB EMMC flash chip is used to start the storage configuration and system files

QSPI Flash

Two 256Mbit QSPI flash for FPGA user data storage

AD converter

ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps

Crystal oscillator

One crystal oscillator 33.333mhz provides clock input for PS terminal
A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller
A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver

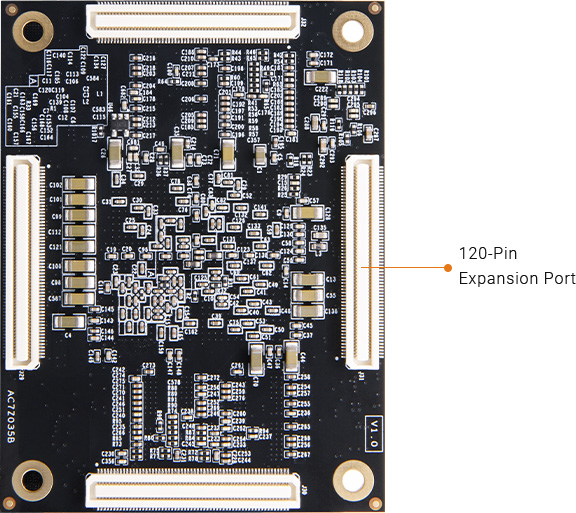

Expansion port

Four 120 pin Panasonic industrial grade connectors

Voltage Input

5V power supply
