Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU3EG

XCZU3EG

Model
ACU3EG
Email
David.ding@alinx.com
Temperature class
-40℃~85℃
Ean
6971390275931
Price
$ 520

Details
Download
Service

Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

4x ARM Cortex-A53, 2x ARM Cortex-R5

core board is equipped with mali-400 MP2 GPU 16nm FinFET+ Programmable Logic Satisfy Network Communication, High-Speed Data Exchange and Storage Industrial Control, Deep Learning, AI Intelligence, Cloud Computing, 4K Video Transmission Processing, and Aerospace Applications

·ARM CPU
4x ARM CORTEX-A53 + 2x ARM CORTEX-R5
·GPU
Mali?-400 MP2 GPU
·5GB DDR4
PS 4GB DDR4, PL 1GB DDR4
·FLASH Storage
8GB EMMC FLASH, 256Mbit QSPI FLASH

key Features

Corresponding Development Board

·AXU3EG

*Learn about the corresponding development board, Click to see details>>

Product Performance

Main Parameters

Core Board Chip

ACU3EG

FPGA Chip

XCZU3EG-1SFVC784I

Processor Core

4x ARM Cortex?-A53, 1.2GHz; 2x Cortex?-R5, 500MHz

GPU

Mali?-400 MP2

RAM

PS DDR4 4GB, 64bit, 2400Mbps
PL DDR4 1GB, 16bit, 2400Mbps

QSPI FLASH

256Mbit

EMMC FLASH

8GB

Speed Grades

-1

Chip Level

Industrial Grade

Working Temperature

-40°c~85°

Logic Cells

154K

CLB Flip-Flops

141K

Look Up Tables (LUTs)

71K

DSP slice

360

Block RAM

7.6Mb

HP I/O

HD I/O

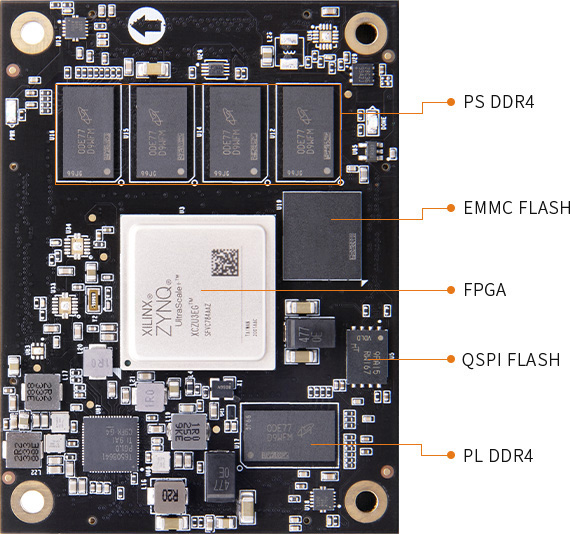

Interface and Function

QSPI Flash

56Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as Large-Capacity Storage System

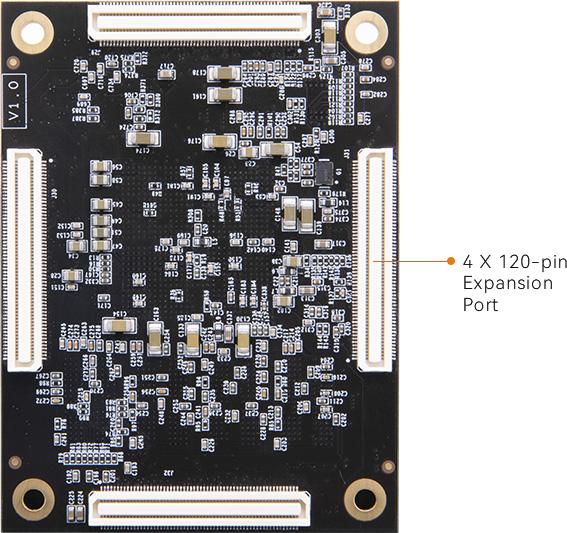

40-120 Pin Expansion Ports

Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator

33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input

+5V DC

Package List

FPGA SoM Board

Structure Size

Size Dimension

3.15 inch x 2.36 inch

Connector Height

0.12 Inch

Number of Layers

16-Layer Core Board PCB


XILINX VITIS-AI DPU

AI Recognition and Detection, Deep Computational Learning

Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things

Vehicle Identification

Infrared Vehicle Recognition

Pedestrian Recognition

Indoor Person Recognition

Fire Detection

Hard Hat Detection

Concrete Defect Detection

PCB Defect Detection

Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM

EG SoM-Industrial Grade Chip Dual ARM Application Processor

4x ARM Cortex-A53, 1.2GHz；2x Cortex?-R5, 500MHz; PS 4GB DDR4, 64bit, Data rate 2400Mbps; PL 1GB DDR4, 16bit, Data rate 2400Mbps

Get Started Quickly, Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
