AD9627
Model
FL9627Temperature class
-40℃~85℃Ean
6971390274590Price
$ 340
Xilinx Kintex UltraScale+ FPGA Core Board Evaluation Boards & Kits SOM PCIE3.0 GTY XCKU5P ACKU5
XILINX Kintex-7 3G- SDI SFP PCIE FPGA Development Board XC7K325
PlayLogic logic analyzer 500M sampling rate 16 Channels
3G-SDI 1080P video input/output LPC FMC sub-board
ALINX Dual Channel 14 bit 125Msps DA BNC Analog Output Module AD9767
4-Channel 12-bit AD Acquisition Module, Synchronous Acuqisition LVDS Interface 12MSPS Sampling Standard FMC LPC Interface

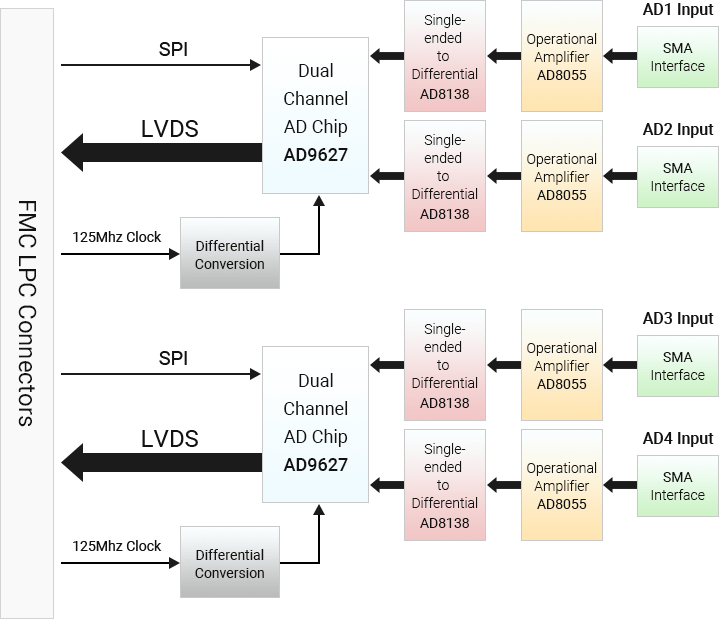

AD Conversion Chip
2 pieces AD9627
AD Conversion channel
4 Channels
AD update rate
20MSPS to 125MSPS
AD bits
12 digits
Digital Interface Level standard
LVDS level of +1.8V
AD analog signal input range
-5V~+5V
Analog Signal Input Interface
SMA interface
Configuration Interface
SPI interface
Working Temperature
-40°C~85°C
Documents Provided
Schematic, FPGA Testing programs
FMC Interface
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
