XCZU9EG
Model
ACU9EGTemperature class
-40℃~85℃Ean
6971390279168Price
$ 1680Apply to 5G Wireless Infrastructure, High-Speed Data Exchange and Storage Industrial Control, AI intelligence, Cloud computing 4K Video Transmission Processing, and Aerospace
4x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
Mali?-400 MP2 GPU
PS 4GB DDR4, PL 2GB DDR4
8GB eMMC FLASH, 64MB QSPI FLASH
*Learn about the corresponding development board, Click to see details>>
Core board
ACU9EG
FPGA Chip
XCZU9EG-2FFVB1156I
Chip CPU
4x ARM Cortex-A53, 1.333GHz; 2x Cortex?-R5, 533MHz
Chip GPU
Mali?-400 MP2
RAM
PS DDR4 4GB, 64bit, 2400Mbps
PL DDR4 2GB, 32bit, 2400Mbps
PS-end High Speed Connection
PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort , 4x Tri-mode Gigabit Ethernet
PS-end General Connection
2x USB 2.0, 2x SD / SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
PL-end GTH
12.5Gb/s x16
Chip Level
Industrial Grade
Working Temperature
-40°c~85°c
Speed Grades
-2
Logic Cells
600K
CLB Flip-Flops
548K
Look Up Tables (LUTs)
274K
Global Clock
4
DSP Slices
2,520
MAX.DISTRIBU-TED RAM
8.8Mb
BLOCK RAM
32.1Mb
ULTRARAM
-
EMMC FLASH
8GB
QSPI FLASH
64MB
HP I/O
96
HD I/O
66
QSPI Flash
2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as Large-Capacity Storage System

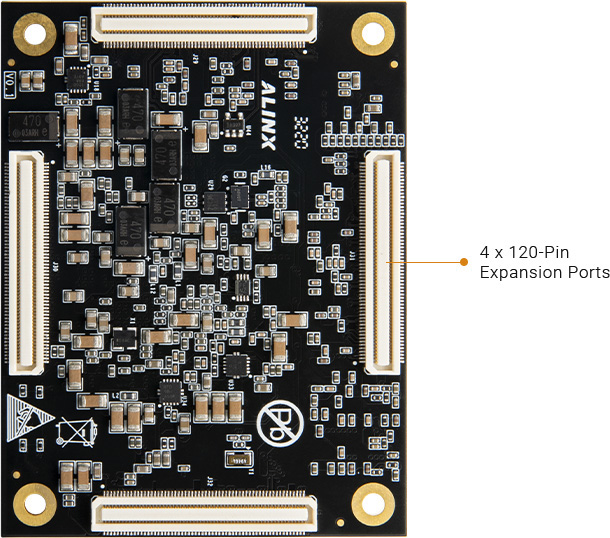

40-120 Pin Expansion Ports
Panasonic Industrial Grade High-Speed Inter-Board Connectors
Ｃrystal Oscillator
33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic
Voltage Input
Board to Board Connector, +12V DC
FPGA SoM Board
1
Size Dimension
3.15 inch x 2.36 inch
Connector Height
0.12 Inch
Number of Layers
16-Layer Core Board PCB
Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things
Vehicle Identification
Infrared Vehicle Recognition
Pedestrian Recognition
Indoor Person Recognition
Fire Detection
Hard Hat Detection
Concrete Defect Detection
PCB Defect Detection
Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM
4x ARM Cortex-A53, 1.333GHz; Quad Core Cortex?-R5, 533MHz; PS 4GB DDR4, 64bit, Data rate2400Mbps; PL 2GB DDR4, 32bit, Data rate 2400Mbps
Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
