Xilinx ZYNQ7000 ARM FPGA Core Board SOM XC7Z020

Core Board Chip

AC7021

FPGA Chip

XC7Z020-2CLG484I

Kernel

Dual-Core ARM Cortex-A9, Main Frequency 767MHz

RAM

DDR3 1GB, Data Rate 1066Mbps

Chip level

Industrial grade, working temperature -40 ° c~85 ° C

Logic Cells

85K

Look Up Tables ( LUTs )

53,200

CLB Flip-Flops

106,400

Multiplier

220

Block RAM

4.9Mb

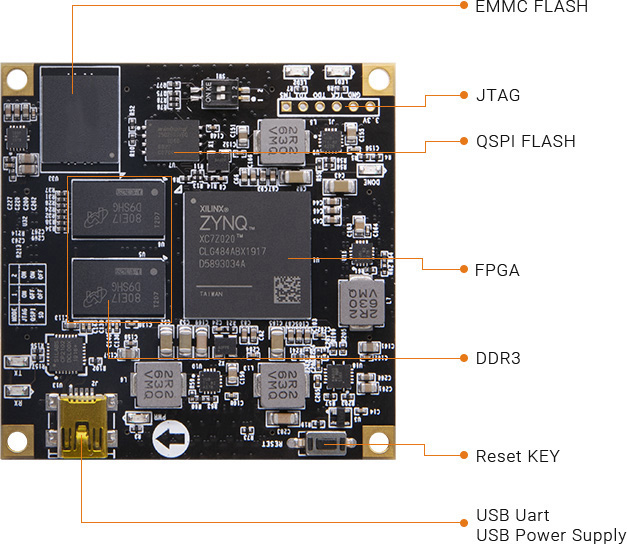

EMMC FLASH

8GB

QSPI FLASH

256MBit

PS MIOs ( ARM )

39

PL IOs ( FPGA )

198

LVDS

48

Voltage Adjustable IOs

100

DDR3

2x 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash

256Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

JTAG

Reserve a 6-pin JTAG interface for Download and Debugging

AD Converter

Integrated ADC and 2 AD Converters to Measure on-chip Voltage and Sense Temperature, Sampling Rate 1MBPS

Crystal Oscillator

33.333 Mhz Provide Stable Clock Source for the PS System
50MHz Provide Extra Clock for PL Logic

USB Uart

Used for Serial Communication with PC, and Provide 5V Power

KEY

1 Reset Key

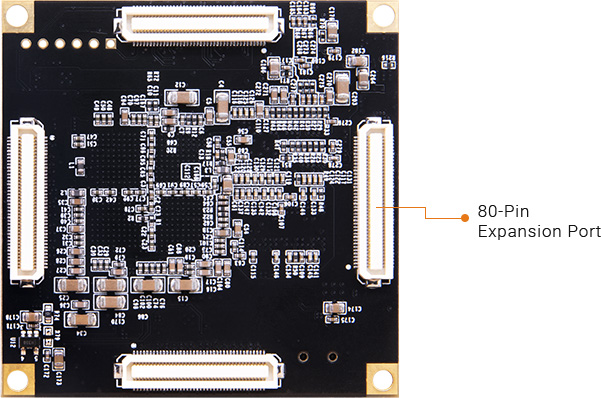

Expansion Ports

4x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG) The matching connector in the carrier board is AXK680337YG

LEDs

2 LED lights, 1 Controlled by PS, 1 Controlled by PL

DIP Switch

Used to Configure the Startup Mode of the ZYNQ System: JTAG Debug Mode, QSPI FLASH and SD Card Startup Mode

Voltage Input

+5V DC

FPGA Core Board

1

Mini USB Cable

1

Size Dimension

2.36 inch x 2.36 inch

Connector height

0.08 inch

Number of Layers

10-Layer Core Board PCB
