XC7A35T
Model
AC7A035Temperature class
-40℃~85℃Ean
6971390270851Price
$ 240Suitable for high-speed data communication, video image processing, high-speed data acquisition, etc
*Learn about the corresponding development board, Click to see details>>
Core Board Chip
AC7A035
FPGA Chip
XC7A35T-2FGG484I
Logic Cells
33280
Look Up Tables (LUTs)
5200
CLB Flip-Flops
41600
Block RAM
1800KB
DSP
90
Expansion IOS
146 IOs（3.3V Level）
RAM
2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI FLASh
128MBit QSPI FLASH Used as System File and FPGA User Data Storage
Speed Grades
-2
FPGA Chip Level
Industrial Grade
Working Temperature
-40°c~85°c
XADC
12bit, 1Mbps AD
Transceiver
4 -Channels, each up to 6.6Gb/s
PCIe Gen2
Support PCI Express 2.0 x4
Crystal Oscillator
200Mhz Provide System Main Clock and Generate DDR Control Clock, 125Mhz Provide Stable Clock Source Input for the GTX transceiver
JTAG
Reserve a 6-pin JTAG Interface for Download and Debugging
LED
1 Power Indicator (PWR), 1 Configure LED Light (DONE), 1 User LED Light（LED1）
Power Connector
2Pin Power Interface

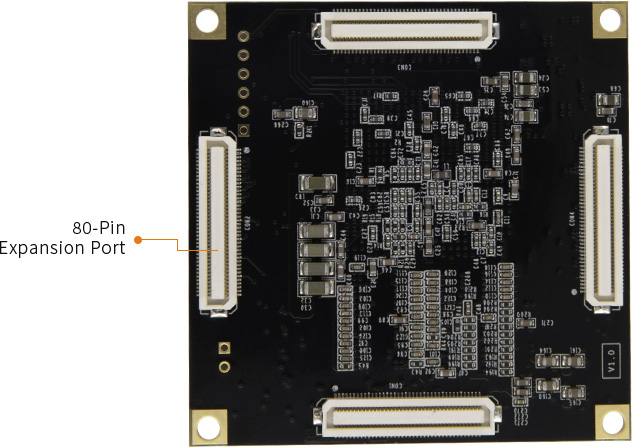

Expansion Ports
4x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG ) The matching connector in the carrier board is AXK680337YG
Voltage Input
+5V
Current Input
Max. Current 2A
Powered By
Carrier Board
FPGA Core Board
1 Piece
Size Dimension
2.36 inch x 2.36 inch
Connector Height
0.12 inch
Number of Layers
10-Layer Core Board PCB
Super Combination with DDR3 Memory
6.6Gb/s, 4x GTP, 1GB DDR3, Support PCIE 2.0
High-Speed Data Transmission, High Bandwidth and Capacity Apply to Data Acquisition and Communication, Video Image Processing
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
