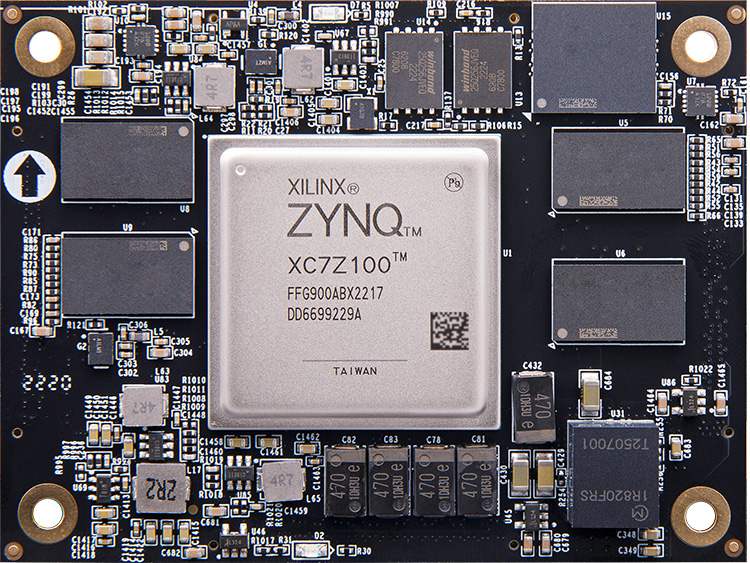

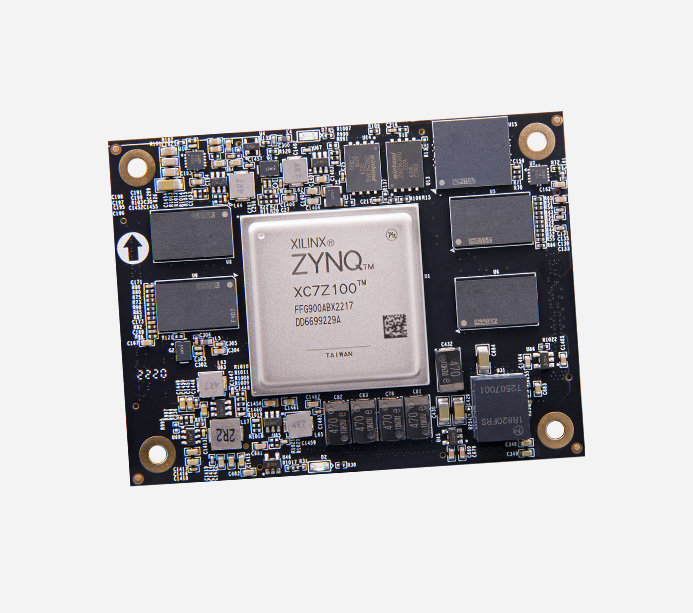

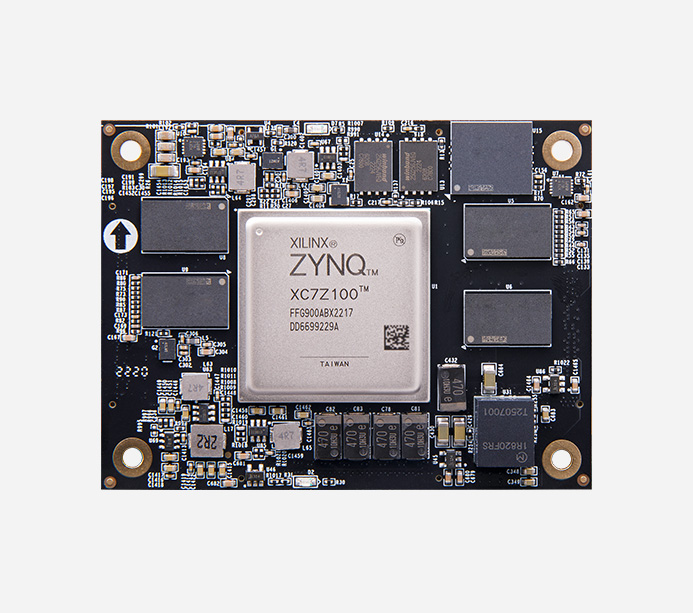

XC7Z100
Model
AC7Z100CTemperature class
-40℃~85℃Ean
6971390271865Price
$ 11002x ARM Cortex-A9, Industrial grade
*Learn about the corresponding development board, Click to see details>>

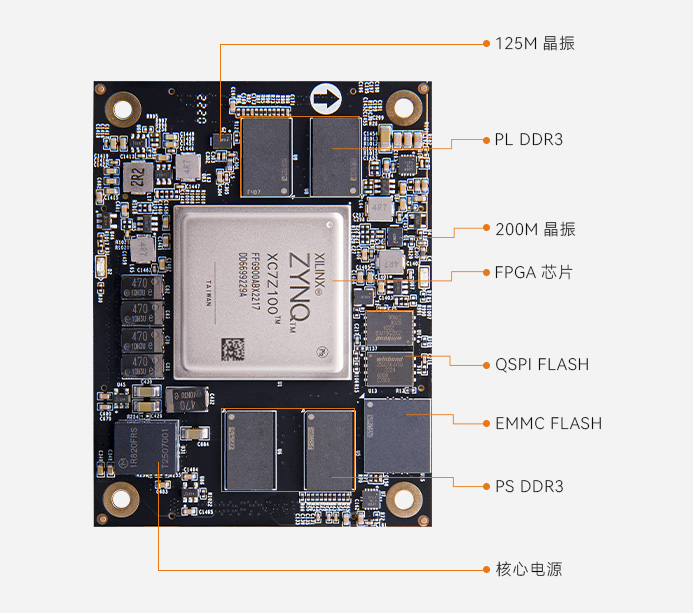

Core board
AC7Z100B
FPGA Chip
XC7Z100-2FFG900I
Chip CPU
2x ARM Cortex-A9, Dominant frequency 800MHz
PL RAM
1GB DDR3, Data rate 1600Mbps
PS RAM
1GB DDR3, Data rate 1066Mbps
Speed Grades
-2
Chip Level
Industrial grade
Working Temperature
-40°C~85°C
Logic Cells
444K
Lookup table
277400
trigger
554800
Multiplier
2020
transceiver
16 -Channels, supporting PCIe Gen2 x8
Block RAM
25.6Mbit
MIO
37
PL IO
162
Adjustable voltage IO
96
LVDS differential pair
48
EMMC FLASH
8GB EMMC flash chip is used to start the storage configuration and system files
QSPI Flash
Two 256Mbit QSPI flash for FPGA user data storage
AD converter
ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps
Crystal oscillator
One crystal oscillator 33.333mhz provides clock input for PS terminal
A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller
A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver

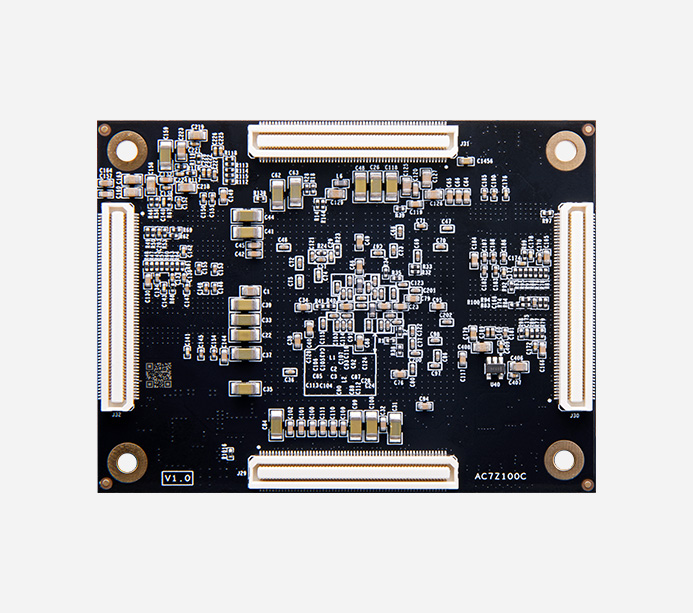

Expansion port

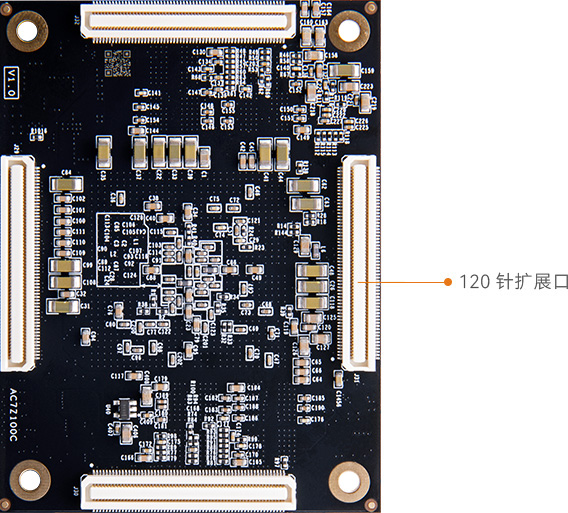

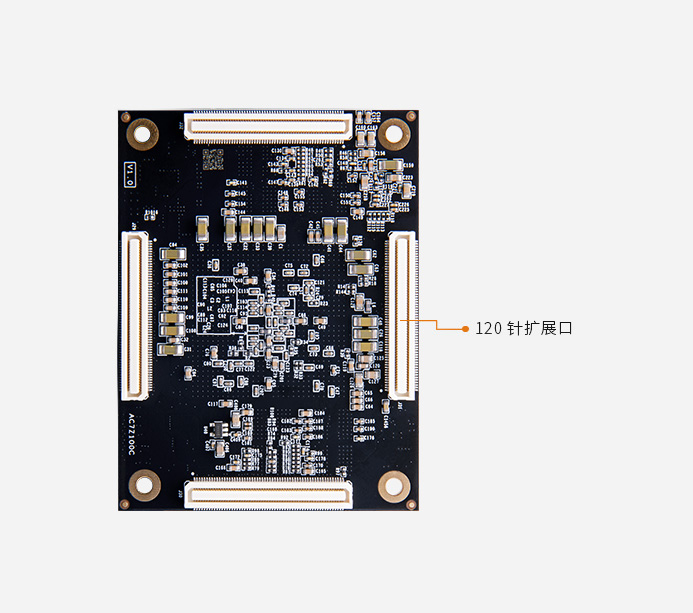

Four 120 pin Panasonic industrial grade connectors
input voltage
5V power supply
FPGA core board
1
Size
80mm x 60mm x 10.8mm
Connector closing height
3.0mm
Number of laminations
12 layer PCB board design
With a Super Combination of Memory DDR3
2x ARM Cortex-A9, 800MHz; PS 1GB DDR3, Data rate 1066Mbps; PL, 1GB DDR3; Data rate 1600Mbps
Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
