XCZU4EV
Model
M4EVTemperature class
-40℃~85℃Price
$ 800Mali-400 MP2 GPU, 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4K x 2K (60fps) videc Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, High-speed Data Exchange and Storage and other Embedded Vision

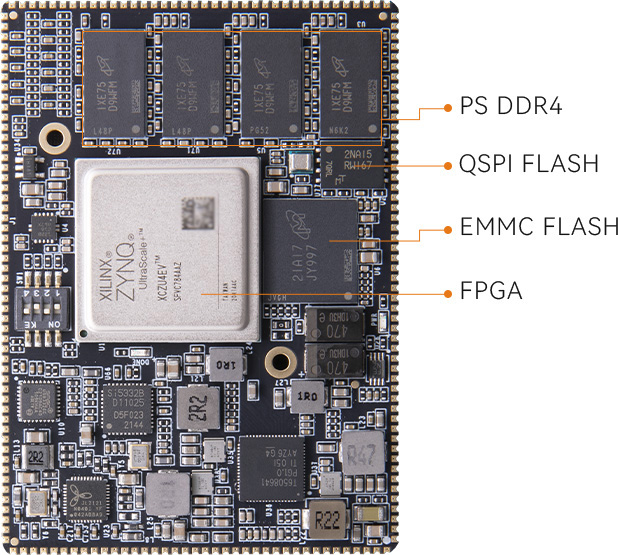

PS 4GB DDR4
8GB EMMC FLASH, 32MB QSPI FLASH
Core board
M4EV

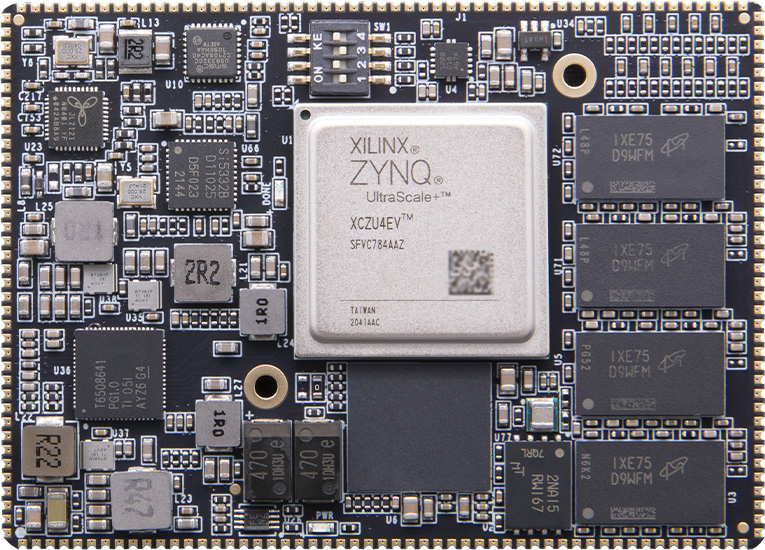

FPGA Chip
XCZU4EV-1SFVC784I
Speed Grades
-1
Working Temperature
Industrial Grade, -40°C~85°C
CPU kernel
4x Cortex?-A53; 2x Cortex?-R5
CPU frequency
1.2GHz; 500MHz
GPU Graphic processing sheet
Mali?-400 MP2
High speed connection interface
PCIe Gen2 x1, 1x USB3.0, Sata 3.1, DisplayPort , 1x Tri-mode Gigabit Ethernet
Common connection interface
1x SD2.0, 1x JTAG
PS DDR4
4GB, 64bit
QSPI | EMMC Flash
32MB | 8GB
Logic Cells
192K
Flip-Flops
176K
LUTs
88K
Max. Distributed RAM
2.6Mb
Total Block RAM | UltraRAM
4.5Mb | 13.5Mb
Clock Management Tiles (CMTs)
4
DSP Slices
728
Video Codec Unit
H.264 / H.265
PS MI/Os
15
PL I/Os
102
PL HPI/Os
96
PL HD I/Os
6
Connection mode
Stamp hole
RAM
4GB DDR4, 64bit
QSPI Flash
One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash
8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator
One passive crystal oscillator is provided to PS system
Voltage Input
+12V DC
FPGA SoM Board
1
Size Dimension

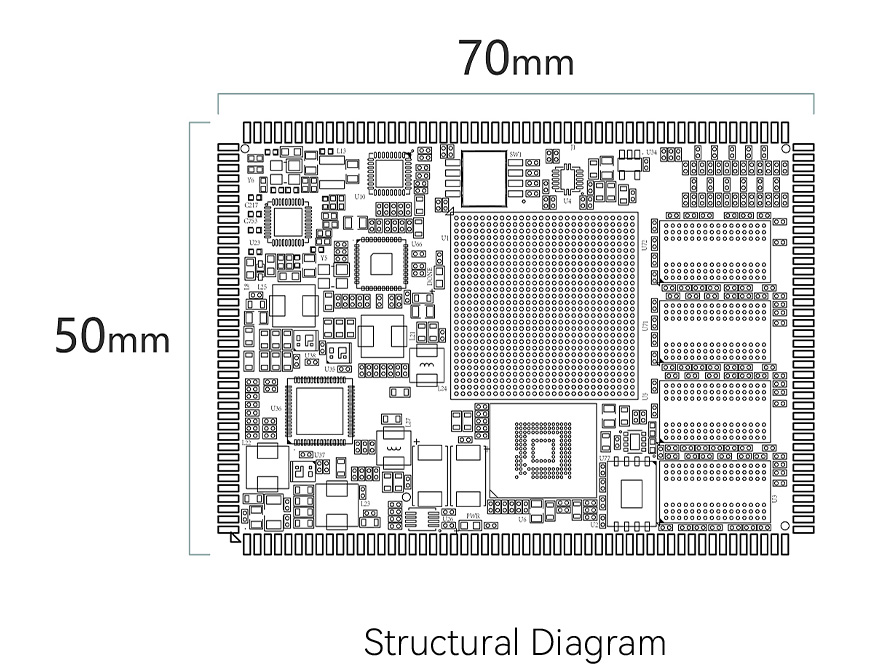

70mm x 50mm
Number of Layers
16-Layer PCB
Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM
4x ARM Cortex-A53, 1.2GHz; 2x Cortex?-R5, 500MHz; PS 4GB DDR4
It can encode and decode 4k x 2k (60fps) video at the same time
Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
