PG2L100H
Model
P100Temperature class
-40℃~85℃Ean
6971390271827Price
$ 260
PANGOMICRO Logos PGL12G FPGA SoM Core Board P12

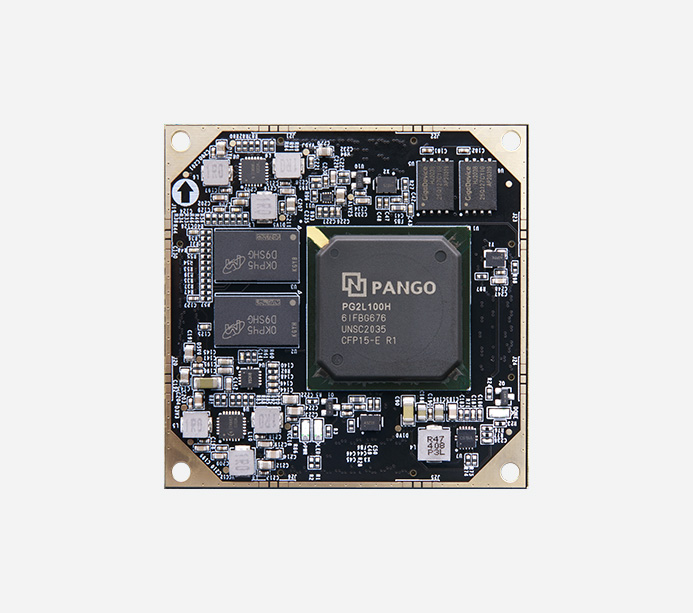

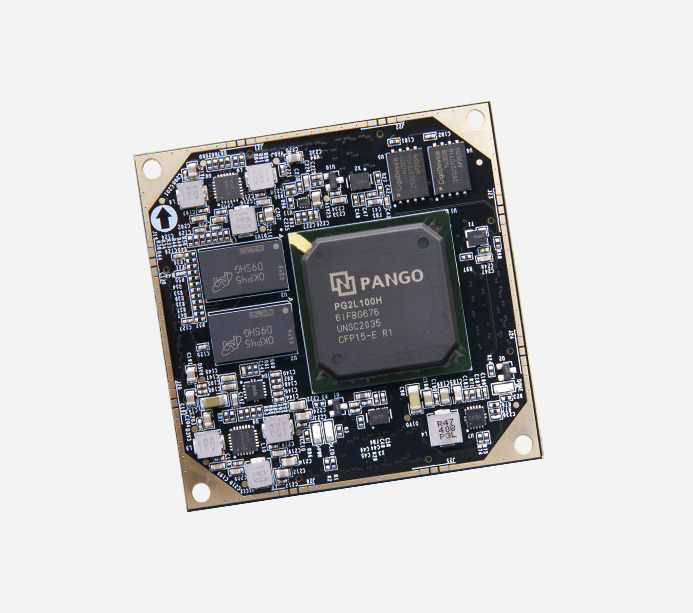

PANGOMICRO Logos2 PG2L100H SoM Core Board Industrial Grade P100
PANGOMICRO Logos PGL50H FPGA Development Board Evaluation Boards & Kits Video HDMI Ethernet AXPGL50H
PANGOMICRO Logos PGL12G FPGA Development Board Evaluation Board & Kit HDMI Output Video Image Processing AXP12
PANGOMICRO Titan-2 PG2T390 FPGA SoM Core Board DDR4 Industrial Grade P390

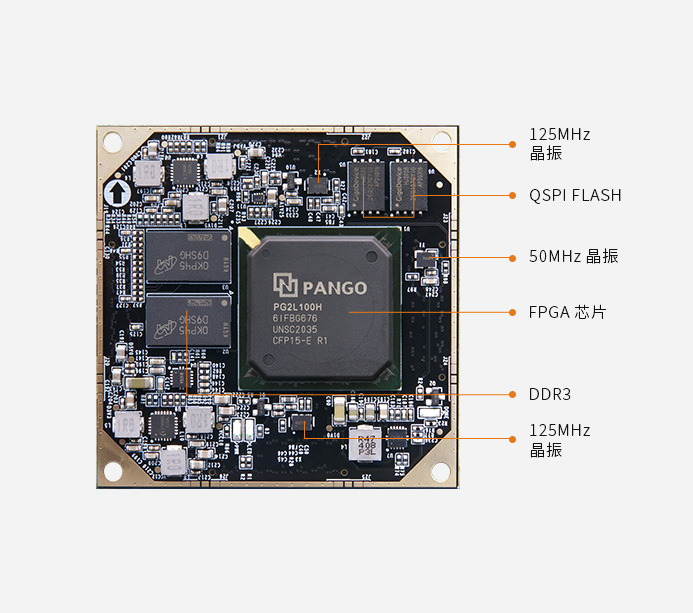

FPGA Chip
PG2L100H-6IFBG676
LUT6
66600
LUT4
99900
Flip-Flop (FF)
133200
DRM（36Kbits）
155
APM Unit (Multiplier)
240
PCIe Gen2
1
ADC
1
HSSTLP
8 x 6.6Gb/s max
Working Temperature
Industrial Grade -40℃~85℃
Speed Class
-6
DDR
Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
Two 256Mbit , Used for FPGA Configuration File and User Data Storage
Crystal Oscillator
50 Mhz Provide Reference Input Clock for FPGA
125 Mhz Provide Reference Input Clock for HSSTLP in FPGA

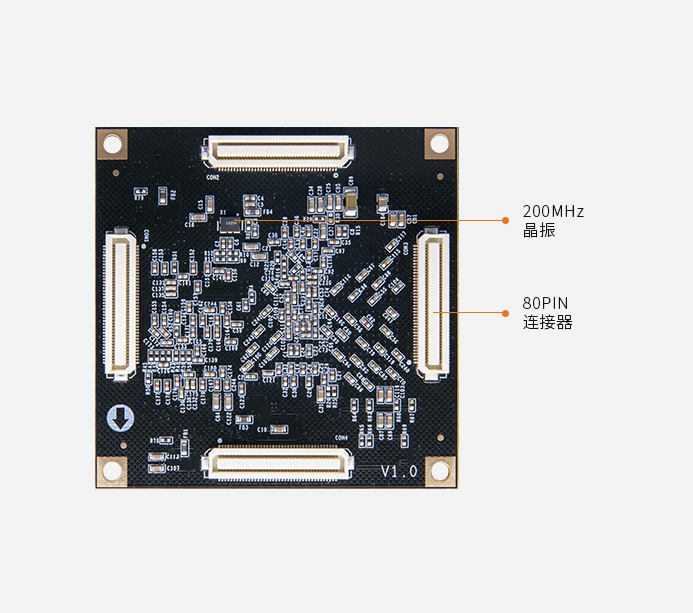

200 Mhz Provide Stable Clock Source for the System

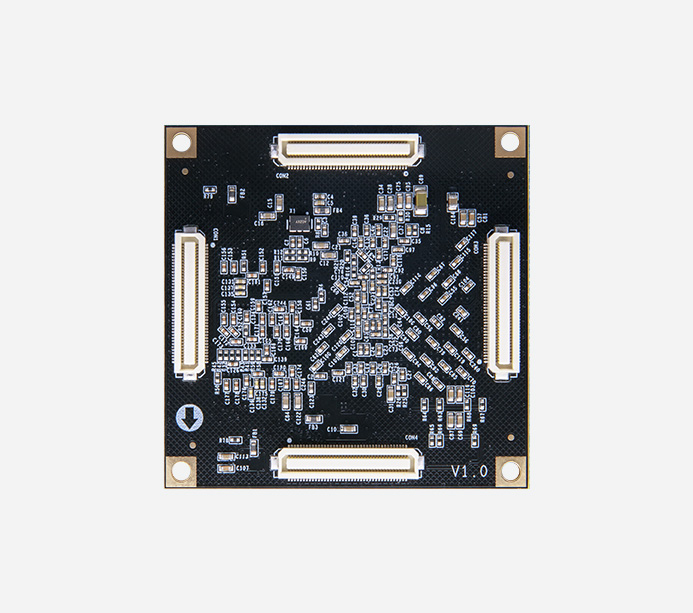

Expansion Ports
4 x 80-Pin Panasonic Industrial Grade Connectors
Voltage Input
+5V DC, Power Supply via Connector CON1
FPGA Core Board
1
Size Dimension
60mm x 60mm x 6mm
Connector height
3.0mm
Number of Layers
12-Layer Core Board PCB
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
