ACPGL22G
Model
P22Temperature class
0°C~70°CPrice
$ 100
PANGOMICRO Logos PGL22G FPGA Development Board Evaluation Boards & Kits Learning board
PANGOMICRO Logos PGL50H FPGA Development Board Evaluation Boards & Kits Embedded Teaching Experiment Box Learning
PANGOMICRO Logos2 PG2L100H FPGA Development Board Evaluation Boards & Kits FMC interface gigabit network AXP110
PANGOMICRO Titan-2 PG2T390 FPGA Development Board Evaluation Boards & Kits PCIe Optical Communication DDR4 FMC AXP390
PANGOMICRO Logos2 PG2L100H FPGA Development Board Evaluation Boards & Kits optical fiber AXP100B
High speed, high bandwidth, and high capacity are suitable for high-speed data communication, video image processing, high-speed data acquisition, and other applications

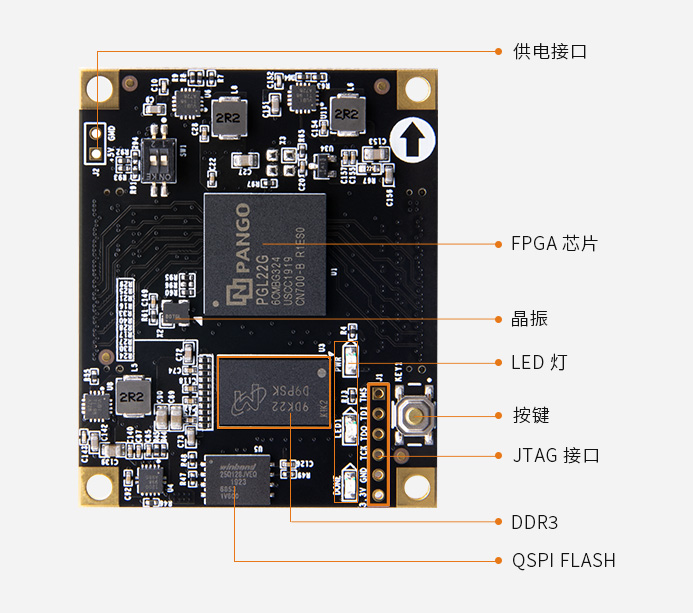

FPGA Chip
PGL22G-6CMBG324
DDR3
256MB DDR3
QSPI FLASH
128Mbit
Speed Class
-6
Working Temperature
Commercial 0°C~70°C
LUT5
17536
LUT4
21043
FF
26304
18Kb DRM
48
APM
30
PLL
6
ADC
1
HMEMC
2
MAX user IO
240
DDR3
1 x 256MB DDR3, 16bit
QSPI Flash
one 128Mbit, Used for FPGA Configuration File and User Data Storage
Crystal Oscillator
50 Mhz Provide Reference Input Clock for FPGA
JTAG
10 pin 2.54mm standard JTAG port for downloading and debugging FPGA programs
AD Converter

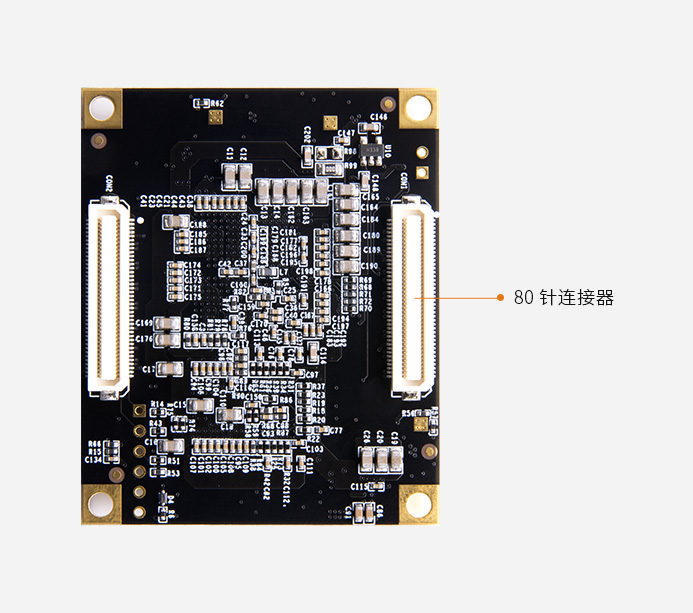

4 high-speed expansion ports, using 4 80-Pin inter board connectors and backplane connections
LED
1 power indicator light, 1 configuration light, 1 user LED light
Expansion port
Two 80PIN Panasonic industrial grade connectors
Voltage Input
+5V DC, Power Supply via Connector CON1
FPGA Core Board
1
Size Dimension
55mm x 45mm x 6.4mm
Connector height
3.0mm
Number of Layers
10-Layer Core Board PCB
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
