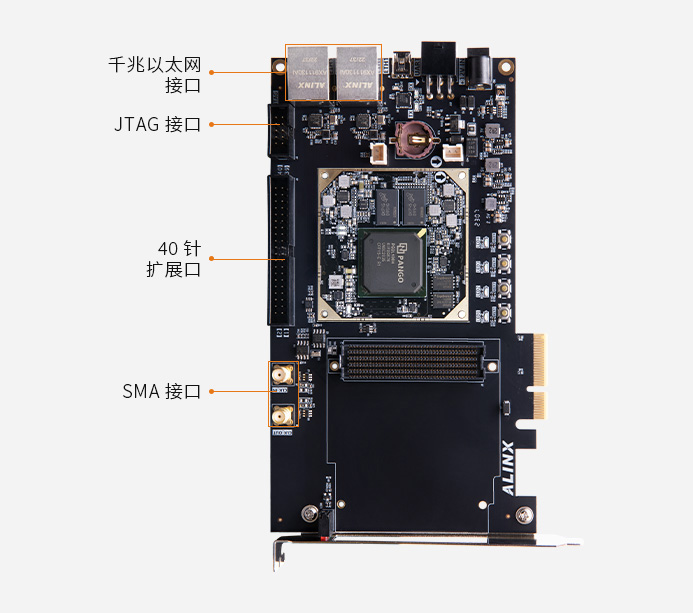

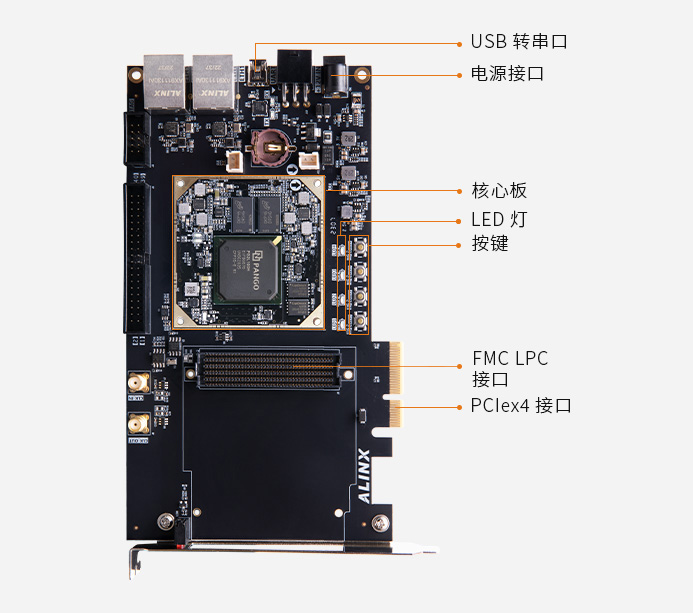

PG2L100H
Model
AXP100BPrice
$ 400
PANGOMICRO Logos2 PG2L100H SoM Core Board Industrial Grade P100
PANGOMICRO Logos PGL22G FPGA Development Board Evaluation Boards & Kits Learning board
PANGOMICRO Logos PGL12G FPGA Development Board Evaluation Boards & Kits HDMI Output Video Image Processing PGL12G
PANGOMICRO Logos PGL50H FPGA Development Board Evaluation Boards & Kits Embedded Teaching Experiment Box Learning
PANGOMICRO Logos PGL12G FPGA SoM Core Board P12

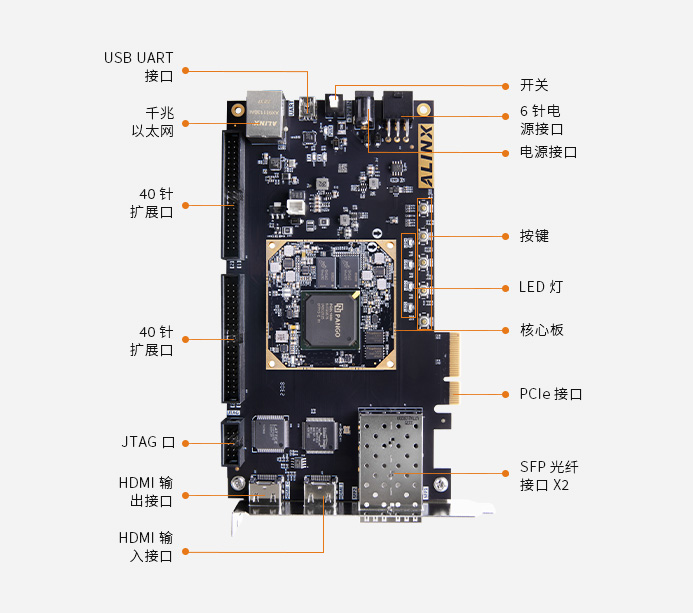

HDMI, SFP, Gigabit Ethernet, UART, JTAG CMOS Camera Interface, 40-PIN Expansion Ports Apply to Video image processing and industrial control
Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.
01. Pango Design Suite 2020.3 Installation
02. LED water lamp experiment and simulation
03. Key detection experiment
04. PLL phase-locked loop output test
05. Serial port Transmitting and Receiving experiment
06. Key debounce experiment
07. I2C Interface EEPROM Experiment
08. SD Card Read and Write Experiment
09. HDMI Programming Output Experiment
10. 4.3 inch screen color bar output
11. 7-inch screen color bar output
12. HDMI input output loop pass experiment
13. DDR3 read and write data test
14. AN831 Recording and Playback
15. SD Card Music Player Experiment
16. Character HDMI display
17. Character 4.3-inch screen display
18. Character 7-inch screen display
19. SD card image HDMI display
20. SD card image 4.3 inch LCD display
21. SD card image 7-inch LCD display
22. AN5642 binocular camera captures HDMI display
23. AN5642 binocular camera captures 4.3-inch screen display
24. AN5642 binocular camera captures 7-inch screen display
25. SOBEL Edge Detection Experiment
26. AD9238 waveform display routine
27. AD7606 waveform display routine
28. ADDA Test Routine
29. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
30. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
31. Gigabit Ethernet Transmission Experiment
32. AD9238 Ethernet transmission routine
33. AD7606 Ethernet transmission routine
34. AD9280 Ethernet transmission
35. Binocular cameras capture gigabit Ethernet transmission video
36. 1.25g fiber optic communication testing
37. 5g fiber optic communication testing
38. Camera video acquisition fiber 5G transmission test
39. Fiber optic communication HSST CTC mode testing
40. PCle Speed Test Routine
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN5642
●
●
4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
Learn More about the Core Board, Click to View>>
FPGA Chip
PG2L100H-6IFBG676
LUT6
66600
LUT4
99900
Flip-Flop (FF)
133200
DRM（36Kbits）
155
APM Unit (Multiplier)
240
PCIe Gen2
1
ADC
1
HSSTLP
8x 6.6Gb/s max
Working Temperature
-40℃~85℃
Speed Class
-6
DDR3
Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
Two 128Mbit, Used for FPGA Configuration File and User Data Storage
Crystal Oscillator
50 Mhz Provide Reference Input Clock for FPGA
125 Mhz Provide Reference Input Clock for HSSTLP in FPGA
200 Mhz Provide Stable Clock Source for the System
HDMI Input
Support 1080P@60Hz Input, Data input in Different Formats
HDMI Output
Support 1080P@60Hz, 3D Output
PCIe x4
Provides a Standard PCIe 2.0 x 2 High-Speed Data Transmission Interface
SFP x 2
The Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s
Gigabit Ethernet
One 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange
Uart
Used for Serial Communication with PC or External Devices
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

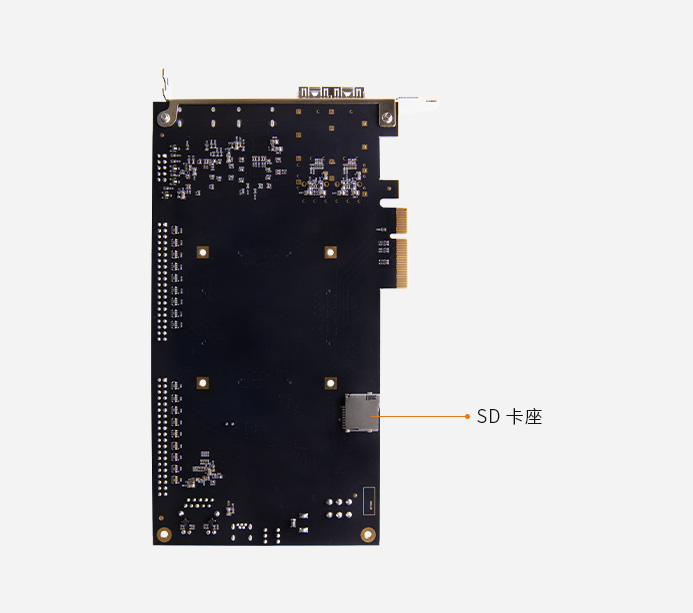

SD Card Slot
1 Micro SD Card Slot, Support the SPI Mode
LED
5 User LEDs (1 LED in the Core Board, 4 LEDs in the Carrier Board)
KEYs
4 User Keys, 1 Reset Key
40-Pin Expansion Ports
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )
Voltage Input
+12V DC
Power Adapter
12V / 3A
Current Input
Max. Current 3A
FPGA Board
1
USB Downloader Cable
1 Set
Mini USB Cable
1
PCIE Fence
1
12V Power Adapter
1
Size Dimension
Core Board 2.36 inch x 1.77 inch, Carrier Board 7.40 inch x 4.17 inch
Number of Layers
12-Layer Core Board PCB, 6-Layer Carrier Board PCB
Industrial Ethernet, SFP Interfaces Apply to Video Processing and Transmission SFP Communication and Data Transmission
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.
AN9767 / AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
