XC7A100T
Model
AX7102Ean
6971390270615Price
$ 420
Apply to Multi-Channel Video Transmission Network and SFP communication High-Speed Data Transmission and Exchange
Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.
00. vivado2017.4 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. I2C Interface EEPROM Experiment
07. FPGA on-chip ROM read and write experiment
08. FPGA on-chip RAM read and write experiment
09. FPGA on-chip FIFO read and write experiment
10. SD Card Read and Write Experiment
11. VGA Test Experiment
12. DDR3 Read Write and Simulation experiment
13. Recording and playback Experiment of AN831 Module
14. SD Card Music Player Experiment
15. Character Display Experiment
16. SD Card Read BMP Picture Display experiment
17. OV5640 Camera Display Experiment
18. SOBEL Edge Detection Experiment
19. AD9238 Waveform Dispaly Experiment
20. AD7606 Waveform Display Experiment
21. ADDA Testing Experiment
22. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
23. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
24. ds1302 Digital Tube Display RTC Time Experiment
25. USB 2.0 Communication Experiment
26. Gigabit Ethernet transmission experiment
27. AD9238 Chip Ethernet Transmission
28. AD7606 Chip Ethernet Transmission Experiment
29. AD9280 Chip Ethernet Communication
30. Gigabit Ethernet Video Transmission Experiment
31. GTP Fiber Optic Communication Testing Experiment
32. GTP Fiber Optic Data Communication Experiment
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
4.3-inch LCD
●
●
Supporting Modules in the Package, Click to Learn More

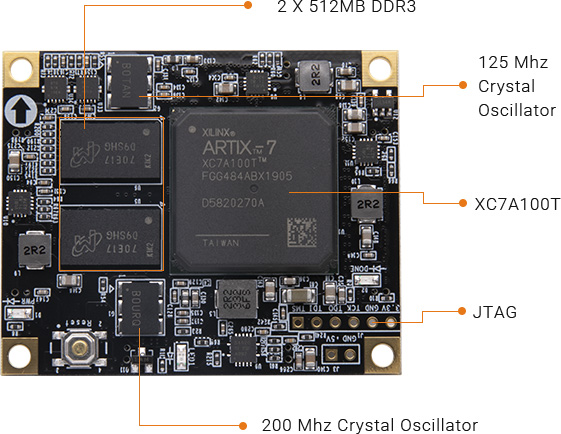

*Core Board AC7100B, Click to Purchase>
FPGA Chip
XC7A100T-2FGG484I
Logic Cells
101440
Look Up Tables ( LUTs )
15850
CLB Flip-Flops
126800
Block RAM
4860Kb
DSP
240
QSPI FLASH
128Mb
DDR3
2 Pics, Totally 1GB
Total IOs
180
Adjustable Voltage IO
100
Logic cells
101440
XADC
12bit 1Mbps AD
Chip Level
Industrial Grade
Working Temperature
-40°c ~ 85°c
Speed Grades
-2
Active Differential Crystal
2
Number of Differential Pairs
48
DDR3
2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
128 Mbit, Used as FPGA User Data Storage
Crystal Oscillator
200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver
Transceiver
4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication
SFP Interface
2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s
Gigabit Ethernet
10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
VGA
1 channel VGA output interface, 16 bit color VGA analog output, RGB 565 format
RS232
Used for Data Communication with Computer or Other Devices
USB 2.0
Used for USB 2.0 High Speed Communication with PC
USB Uart
Used for Serial Communication with PC or External Devices
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220（ Buy it yourself ）
40-Pin Expansion Ports
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
SD Card Slot
1 Micro SD Card Slot, Support SD Mode and SPI Mode
LED
5 User LEDs（ 1 LED in Core Board, 4 LEDs in the Carrier Board )
KEYs
4 User KEYs, 1 Reset Key ( in the Core Board )
Voltage Input
+12V DC
Current Input
Max. Current 3A

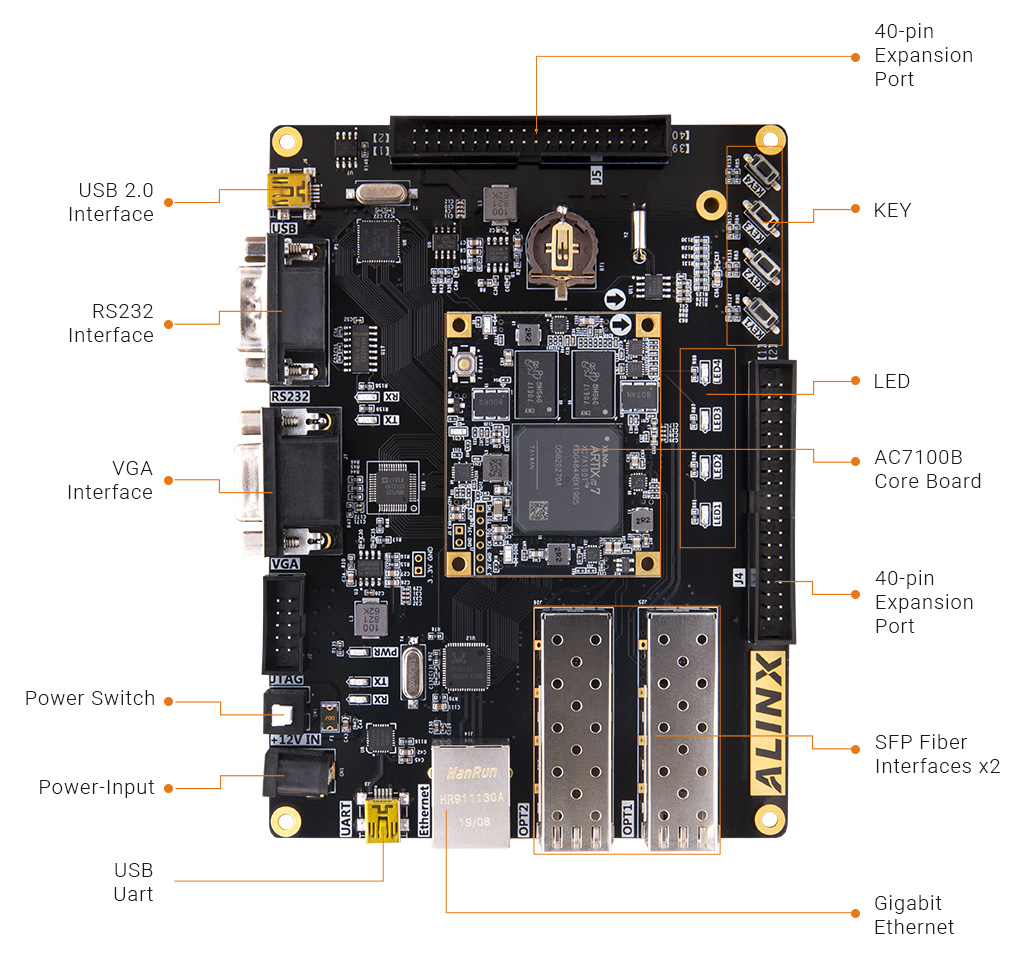

FPGA Board
1
Heat Sink (Fixed on the Board)
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1
Transparent Protection Board
1
Size Dimension
Core Board 2.17 inch x 1.77 inch, Carrier Board 5.91 inch x 4.34 inch
Number of Layers
6-Layer PCB, 4-Layer Carrier Board PCB
Industrial Ethernet, Multi-Channel Video Transmission Multi-Channel Network and SFP Communication High-Speed Data Transmission Exchange
Expansion Interface Connects Binocular Camera Module Realize SPF Video Transmission
The FPGA Development Board Collects Video Images through the Camera Module, and Transmits it to another FPGA Development Board through the SFP Interface.
After the SFP Interface Receives the Data, Displayed it to the Monitor through the VGA Interface.
SFP Transceiver Communication Eye Diagram
AN9767 / AN706 Module On-Board Demo
* The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
* The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
