XILINX Spartan-7 FPGA Development Board XC7S50

    XC7S50

    • Model

      AX7050
    • Email

      David.ding@alinx.com
    • Ean

      6971390270288
    • Price

      $ 400

    Related




    Xilinx Spartan-7 FPGA Development Board

    1G DDR3, QSPI Flash, Gigabit Ethernet, USB, HDMI,RTC

    Data Transmission, Video Image Processing and Industrial Control Gigabit Ethernet and USB Communication Pre-validation and Post-application of Data Processing


    Techinal Support

    Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.

    00. Vivado2019.1 Installation
    01. LED water lamp experiment and simulation in vivado
    02. Key detection experiment in Vivado
    03. PLL Experiment in Vivado
    04. Serial port Transmitting and Receiving experiment
    05. Key debounce experiment
    06. I2C Interface EEPROM Experiment
    07. FPGA on-chip ROM  read and write Experiment
    08. FPGA on-chip RAM read and write Experiment
    09. FPGA on-chip FIFO read and write Experiment
    10. SD Card Read and Write Experiment
    11. HDMI Programming Output Experiment
    12. DDR3 Read Write and Simulation Experiment
    13. Recording and playback Experiment of  AN831 Module
    14. SD Card Music Player Experiment
    15. Character Display Experiment


    16. SD Card Read BMP Picture Display Experiment
    17. OV5640 Camera Display Experiment
    18. SOBEL Edge Detection Experiment
    19. AD9238 Waveform Dispaly Experiment
    20. AD7606 Waveform Display Experiment
    21. ADDA Testing Experiment
    22. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
    23. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
    24. Ds1302 Digital Tube Display RTC Time Experiment
    25. Gigabit Ethernet transmission experiment
    26. AD9238 Chip Ethernet Transmission
    27. AD7606 Chip Ethernet Transmission Experiment
    28. AD9280 Chip Ethernet Communication
    29. Gigabit Ethernet Video Transmission Experiment
    30. USB Two-way Speed Measurement Experiment


    Product Package




    AN108 AD / DA Collection Package

    AN9767 DA Collection Package

    AN706 AD Collection Package

    AN9238 AD Collection Package

    AN5642 Binocular Camera Package

    Monocular Camer Video Package

    Luxury Package

    FPGA Board

    USB Downloader

    AN108






    AN9767






    AN706






    AN9238






    AN5642






    AN5640





    AN430 4.3-Inch LCD







    Supporting Modules in the Package, Click to Learn More


    AN108
    AD / DA Module


    AN9767
    Dual-Channels DA Module


    AN706
    8-Channels AD Module


    AN9238
    Dual-Channels AD Module


    AN5640
    Monocular Camera Module


    AN5642
    Binocular Camera Module


    AN430
    4.3-inch LCD Screen


    Key Features

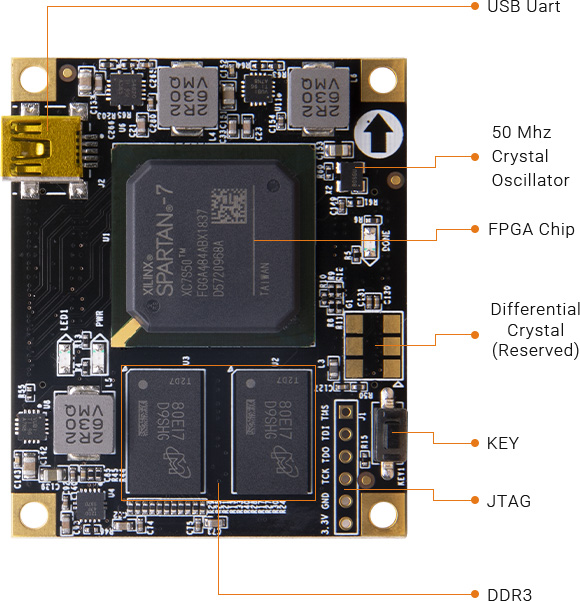

    ·Core Board SOM

    AC7050B EN.jpg

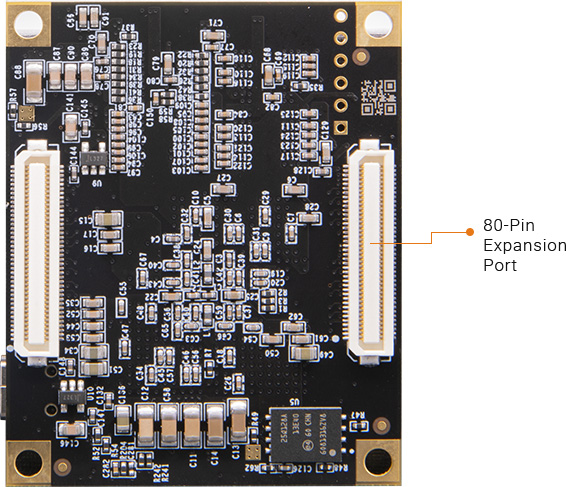

    AC7050B EN2.jpg

    *Core Board AC7050, Click to Purchase>

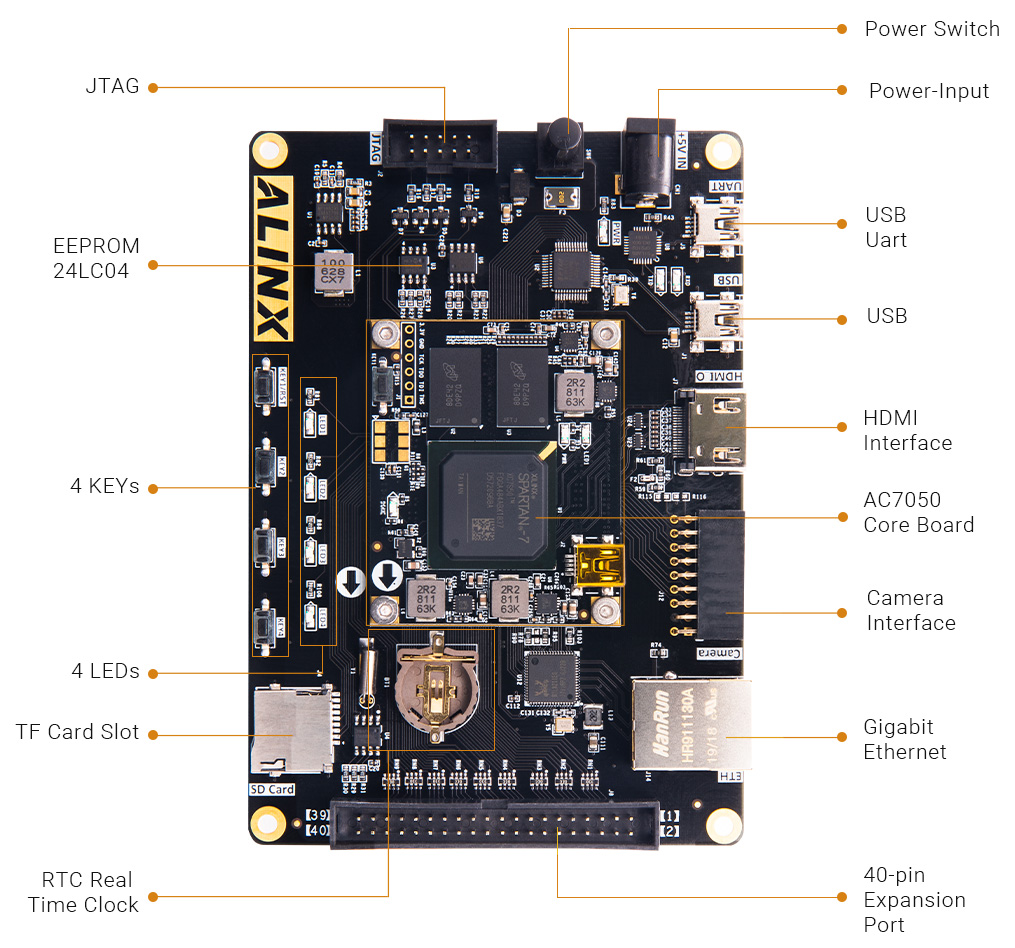

    ·FPGA Board



    Product Parameters

    FPGA Chip Parameters

    FPGA Chip

    XC7S50-1FGGA484I

    DDR3

    1GB, data frequency 333.3MHz

    Logic Cells

    52160

    Look Up Tables  ( LUTs )

    8150

    Number of Expansion IOs

    114

    LVDS Differential Pair

    37

    Speed Grades

    -1

    CLB Flip-Flops

    65200

    DSP

    120

    Block RAM

    2700Kb

    Adjustable Voltage IO

    75 IOs

    Speed Grades

    Industrial Grade

    Working Temperature

    -40°C~85°C

    Interface and Function

    DDR3

    1GB DDR3 32bit, Data Rate 667Mbps

    QSPI Flash

    128Mb, Used as Storage for FPGA Configuration Files and User Data

    Gigabit Ethernet

    10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

    USB Uart

    Used for Serial Communication with PC or External Devices

    USB 2.0

    Used for USB 2.0 High Speed Communication with PC

    HDMI Output

    Support Different Format Video Output.

    Camera Interface

    Connected with 5 million OV5640 Monocular Camera Module AN5640

    JTAG

    10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

    Real Time Clock

    RTC with a Battery Holder, The Battery Model is CR1220 (buy it yourself)

    EEPROM

    EEPROM 24LC04 with IIC Interface On-Board

    40-Pin Expansion Ports

    One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).

    LED

    5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

    KEYs

    4 User KEYs

    Crystal Oscillator

    50MHz Provide Stable Clock Source for the System

    SD Card Slot

    1 Micro SD Card Slot, Support SD Mode and SPI Mode

    Power Supply Parameters

    Voltage Input

    +5V DC

    Current Input

    Max. Current 2A

    Package List

    FPGA Board

    1

    USB Downloader Cable

    1 Set

    Mini USB Cable

    1

    Transparent Protection Board

    1

    5V Power Adapter

    1

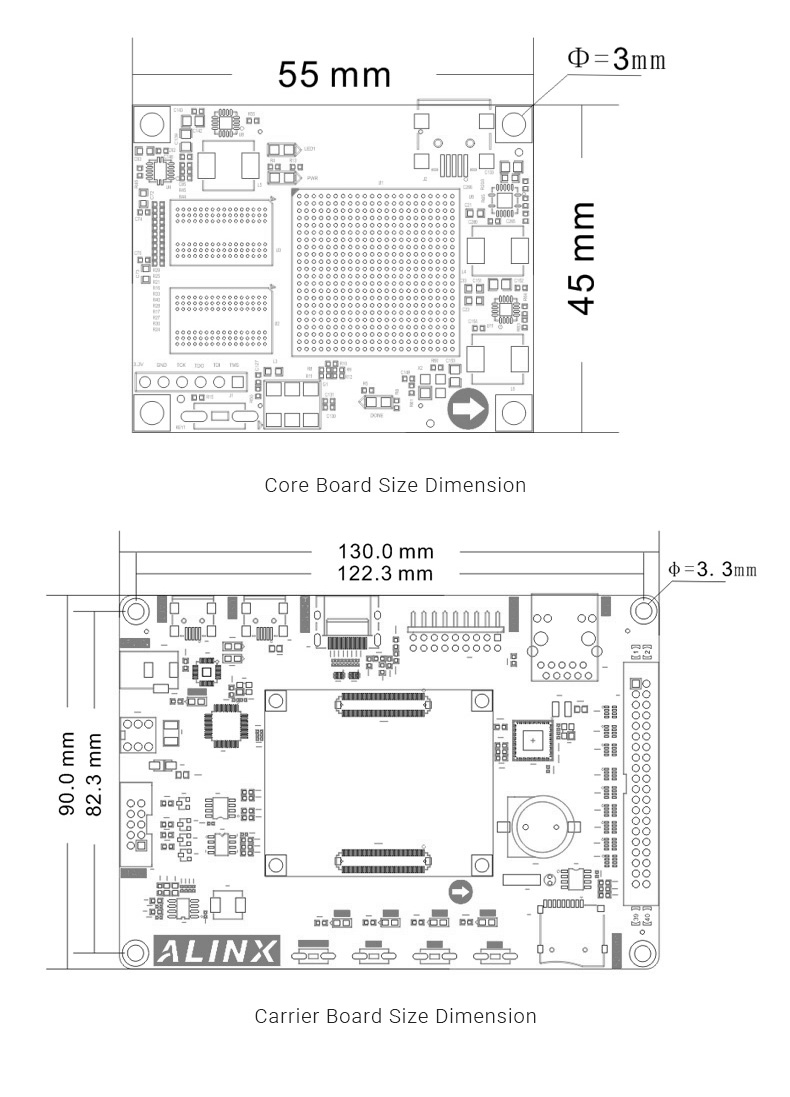

    Structure Size

    Size Dimension

    Core Board 2.17 inch x 1.77 inch, Carrier Board 5.12 inch x 3.54 inch

    Number of Layers

    8-Layer Core Board PCB, 4-Layer Carrier Board PCB


    USB data transfer demo

    USB 2.0 Communication Interface

    FT232H Driver Chip for USB Data Transmission up to 45MB/s


    Video capture demo

    Camera Acquisition System

    Video Capture, Remote Control, Picture Processing


    The Monocular Camera Module AN5640 for Video Capture, and Displays it on the Monitor through the HDMI Interface


    The Monocular Camera Module for SOBEL Edge Detection, and Displays it on the Monitor through the HDMI Interface


    The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface

    Data Collection Display

    Signal Data Acquisition System

    AN9767 / AN706 Module On-Board Demo


    * The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
    * The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the VGA Interface of the FPGA Development Board

    The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
