XC7A100T
Model
AC7100BTemperature class
-40℃~85℃Ean
6971390270981Price
$ 340
Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z100
XILINX Zynq-7000 SoC SOM ARM FPGA Core Board XC7Z015
Xilinx Kintex UltraScale+ FPGA Core Board Evaluation Boards & Kits SOM PCIE3.0 GTY XCKU5P ACKU5
Xilinx Kintex UltraScale SOM FPGA Core Board XCKU040 ACKU040
Xilinx ZYNQ7000 SoC SOM FPGA Core XC7Z020
Suitable for high-speed data communication, video image processing, high-speed data acquisition, etc
*Learn about the corresponding development board, click to view the details>>
*Learn about the corresponding development board, click to view the details>>
*Learn about the corresponding development board, click to view the details>>
Core Board
AC7100B
FPGA Chip
XC7A100T-2FGG484I
Speed Grades
-2
Chip level
Industrial grade -40°c~85°c
RAM
1GB DDR3, 32bit
QSPI FLASH
16MB
Logic cells
101440
Look Up Tables
15850
trigger
126800
Max.Distributed RAM
1188
Block RAM (36Kb each)
135
Total Block RAM
4860kb
DSP Slices
240
Transceiver
4x 6.6Gbps
PIC Express
PCIE2.0
HR IO
180
Differential pair LVDS
48
Power Connector
80pin x4
DDR3
2x 512MB DDR3, 1GB in total, 32bit bus, data rate 800Mbps
QSPI Flash
One 128Mbit QSPI flash, which can be used for FPGA user data storage
Crystal oscillator
The high-precision LVDS active differential crystal oscillator provides a stable clock source for the system at 200MHz and a stable clock input for GTP transceiver at 125MHz
transceiver
4-way GTP, each up to 6.6gb/s, suitable for optical fiber communication and PCIe data communication
working temperature
-40°c~85°c
PCIe 2.0
Support PCI Express 2.0 x4
Analog to digital conversion/XADC
1x 12bit, 1Mbps AD
JTAG
Single row test holes with 2.54mm spacing of 6 pins
LEDs
1 LED
Voltage Input
+5V
FPGA Core Board
1 Piece

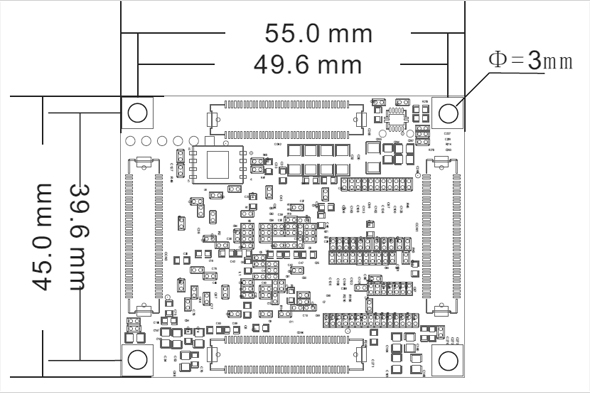

Size Dimension
45mm x 55mm x 6.0mm
Connector Height
1.6mm
Connector Height
3.0mm
Number of Layers
10-Layer Core Board PCB
Super Combination with DDR3 Memory
6.6Gb/s, 4x GTP, 1GB DDR3 RAM
Provide Schmatic, PCB, Structure Size, Package, Reference Design Convenient for secondary development
High-Speed Data Transmission, High Bandwidth and Capacity Apply to Data Acquisition and Communication, Video Image Processing
