XC7A35T
Model
AX7035 / AX7035BEan
6971390270370Price
$ 200Notice for purchase:
This series of development boards include AX7035 and AX7035B.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
High-Speed Video Transmission, Data Communication Image and Data Processing
Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.
00. Vivado 2019.1 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. I2C Interface EEPROM Experiment
07. FPGA on-chip ROM read and write experiment
08. FPGA on-chip RAM read and write experiment
09. FPGA on-chip FIFO read and write experiment
10. SD Card Read and Write Experiment
11. HDMI Programming Output Experiment
12. DDR3 Read Write and Simulation experiment
13. Recording and playback Experiment of AN831 Module
14. Character Display Experiment
15. Character Display Experiment
16. SD Card Read BMP Picture Display experiment
17. OV5640 Camera Display Experiment
18. SOBEL Edge Detection Experiment
19. AD9238 Waveform Dispaly Experiment
20. AD7606 Waveform Display Experiment
21. ADDA Testing Experiment
22. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
23. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
24. Digital Tube Experiment
25. LM75 temperature test
26. Gigabit Ethernet transmission experiment
27. AD9238 Chip Ethernet Transmission
28. AD7606 Chip Ethernet Transmission experiment
29. AD9280 Chip Ethernet Communication
30. Gigabit Ethernet Video Transmission experiment
31. USB Two-way Speed Measurement experiment
AN108 AD/DA Collection Package
AN9767 DA Collection Package
AN706 AD Collection Package
AN9238 AD Collection Package
AN831 Audio Package
Binocular Camera Package
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
●
●
AN108
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN831
●
●
AN5642
●
●
●
4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More

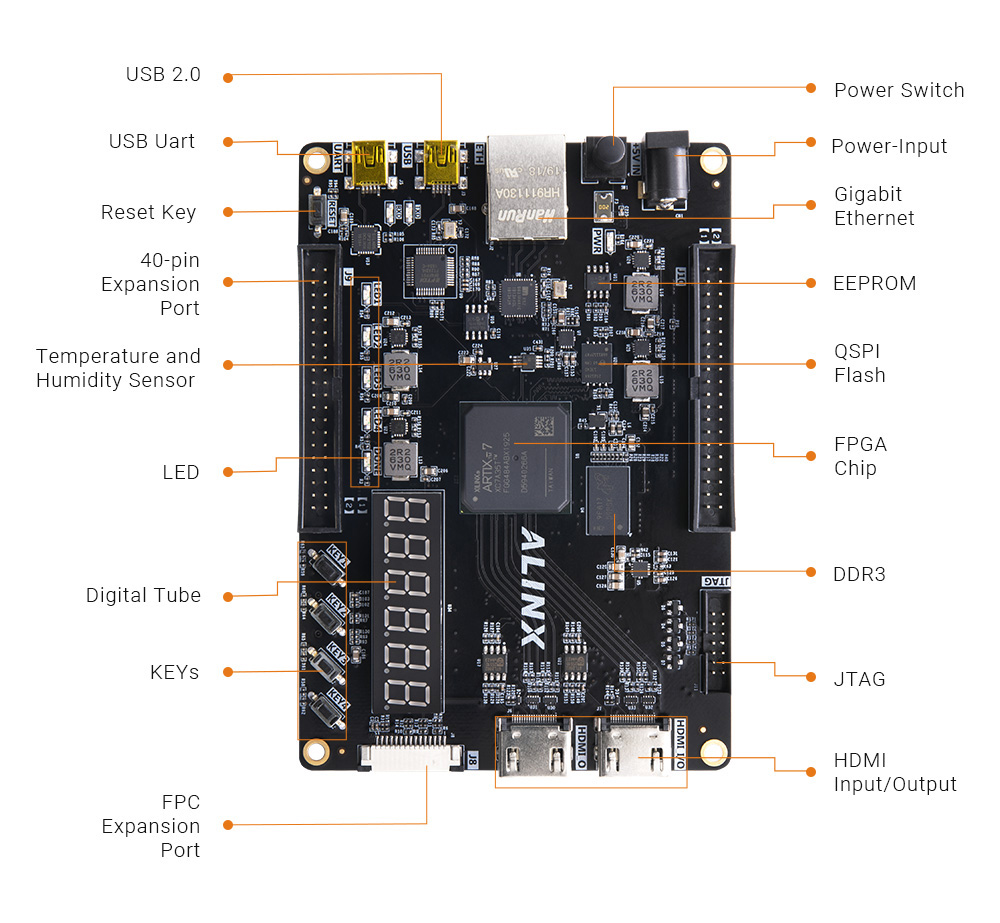

FPGA Chip
XC7A35T-2FGG484I
Logic Cells
33,280
Look Up Tables ( LUTs )
5,200
CLB Flip-Flops
41,600
Block RAM
1,800 kb
DSP Slices
90
Speed Grades
-2
Working Temperature
Industrial Grade, -40 to 85℃
DDR3
256MB DDR3, 16bit Bus, Data Rate 800Mbps
QSPI Flash
128 Mbit, Used as FPGA User Data Storage
Ｃrystal Oscillator
50MHz Provide Stable Clock Source for the System
Gigabit Ethernet
10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
HDMI Input
Support up to 720P@60Hz Input
HDMI Output
Support up to 1080P@60Hz output
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
USB 2.0
The Transmission Speed can reach 45MB/s
USB Uart
Used for Serial Communication with PC or External Devices
Temperature Sensor
Temperature Sensor chip LM75, used to Detect the Temperature of the Environment around the Board
Digital Tube
The 6-digit Digital Tube Dynamically Displays 6 Digits
40-Pin Expansion Ports
One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ), Expand 60 IOs
SD Card Slot
1 Micro SD Card Slot, Support ted SD Mode and SPI Mode
LEDs
4 LEDs
KEYs
4 User KEYs
Voltage Input
+5V DC
Current Input
Max. Current 2A
FPGA Board
1
USB Downloader Cable
1 set
Mini USB Cable
2
Transparent Protection Board
1
5V Power Adapter
1
Size Dimension
5.12 inch x 3.54 inch
Number of Layers
8-Layer FPGE Development Board PCB
The HDMI Input Interface of the FPGA Development Board is connected to the Computer HDMI
The Computer is used as the Video Source, and the HDMI Output Interface of the FPGA Development Board is connected to the Monitor of another Computer to Realize Synchronous Display
The Binocular Camera Module AN5642 for Video Capture 4.3-inch LCD Screen Module for the Real-Time Display
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface
The Binocular camera Module AN5642 collects Video Images, and Performs Real-Time Edge Detection Through the FPGA Development Board and displays them on the Monitor through the HDMI Interface
AN9767 / AN706 Module On-Board Demo
* The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope.
* The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
