Model
P4Price
$ 120
ALINX Dual Channel 14 bit 125Msps DA BNC Analog Output Module AD9767
PANGOMICRO Logos2 PG2L100H SoM Core Board Industrial Grade P100
Development of 4-way 12bit 250MSPS AD input analog-to-digital LPC FMC subboard
XILINX Artix-7 FPGA Development Board SFP XC7A100T
Xilinx Artix-7 FPGA SOM Core Board XC7A100T
Measurement channel
Sampling rate up to
Minimum Capturable Pulse Width
Measurement bandwidth
Free independent professional sampling and analysis software, Chinese / English interface switching, support win7 / 8 / 10, Linux, Mac OS operating system 10 hexadecimal, 2 hexadecimal, ASCII format data display
stream mode sampling depth up to 10Gsa
*Stream mode: only use the computer memory to store sampling data, and the data needs to be uploaded to the computer in real time. This mode provides a greater sampling depth.
Support more than 40 standard protocol parsing, multi-layer protocol overlay display, and more protocols support updating
P2
1-Wire
●
●
●
●
Atmel SWI
●
●
●
●
CAN
●
●
●
●
CAN-FD
X
X
●
●
DHT11/12
●
●
●
●
DMX-512
●
●
●
●
DS18B20
●
●
●
●
HDMI CEC
●
●
●
●
I2C
●
●
●
●
I2C-EEPROM
●
●
●
●
I2S/PCM
●
●
●
●
IR-NEC
●
●
●
●
IR-JVC
●
●
●
●
IR-RC5
●
●
●
●
IR-RC6
●
●
●
●
IR-Sharp
●
●
●
●
IR-SIRC
●
●
●
●
ISO7816
X
X
●
●
JTAG
●
●
●
●
LCD1602/12864
●
●
●
●
LIN
●
●
●
●
Manchester
●
●
●
●
MDIO
●
●
●
●
MIDI
●
●
●
●
MIPI-DSI LP
X
X
●
●
Modbus
●
●
●
●
Parallel
●
●
●
●
Parallel 8080
●
●
●
●
Parallel 6800
●
●
●
●
PS/2 Keyboard
●
●
●
●
QSPI-Flash
X
X
●
●
RDM
●
●
●
●
RGB-WS28xx
●
●
●
●
SDIO
●
●
●
●
SMBus
●
●
●
●
SPI
●
●
●
●
SWD
●
●
●
●
UART/RS232/485
●
●
●
●
UNI/O
●
●
●
●
USB-PD
X
X
●
●
USB LS/FS
●
●
●
●
Wiegand
●
●
●
●

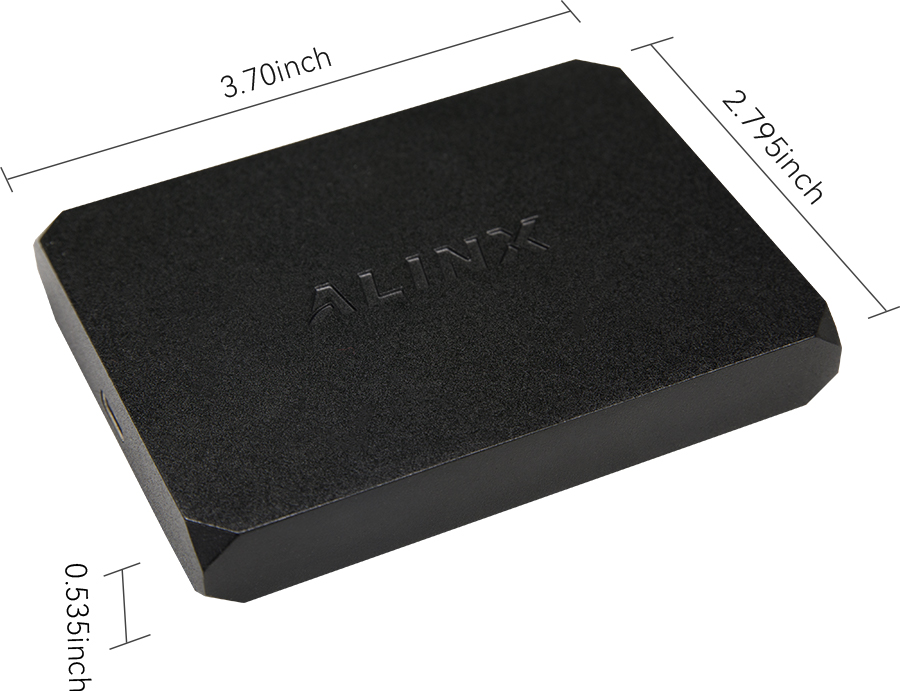

Model
P4

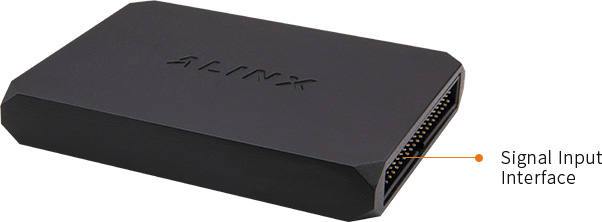

Number of channels
16
Maximum sampling rate
100M@3CH, 50M@6CH, 32M@9CH, 16M@16CH
Measurement broadband
20MHz
Minimum capturing pulse width
20ns
Maximum compression depth
-
Input voltage range
-50V ~ +50V
Equivalent input impedance
220kΩ, 12pF
threshold voltage
Adjustable threshold: -4V ~ +4V Threshold adjustable step：0.01 V
Number of channels
2
Output frequency range
0.1 - 10MHz
Cycle adjustment step
10ns
Pulse width adjustment step
10ns
output voltage
+3.3 V
Logic analyzer
1

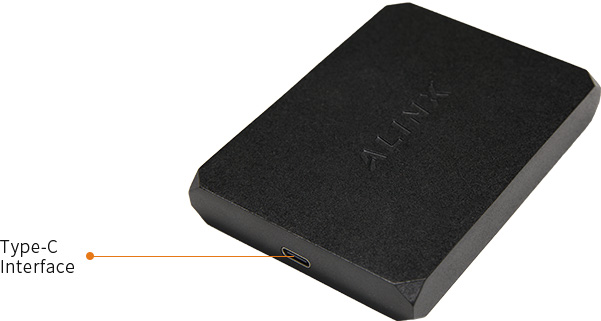

Type-C data line
1
9p cable
3
2p cable
2
Clip
18
Instructions
1
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
