XCZU2CG
Model
M2CGTemperature class
0℃~70℃Price
$ 340PS 4GB DDR4
8GB EMMC FLASH、32MB QSPI FLASH
Core board

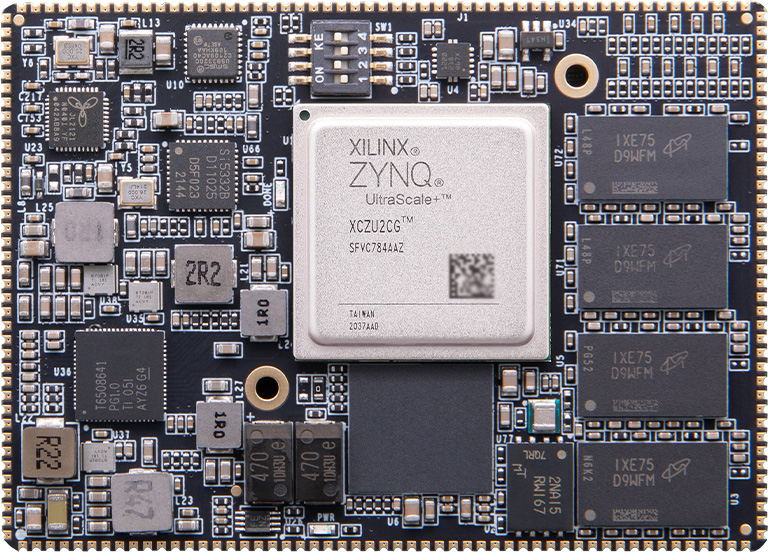

M2CG
FPGA Chip
XCZU2CG-1SFVC784E
Speed Grades
-1
Working Temperature
Industrial Grade , 0°C~70°C
CPU kernel
2× ARM CORTEX-A53 + 2× ARM CORTEX-R5
CPU frequency
1.2GHz | 500MHz
GPU Graphic processing sheet
PCIe Gen2 x1, 1x USB3.0, Sata 3.1 , DisplayPort, 1x Tri-mode Gigabit Ethernet
Common connection interface
1x SD2.0, 1x JTAG
PS DDR4
4GB, 64bit
QSPI | EMMC Flash
32MB | 8GB
Logic Cells
103K
Flip-Flops
94K
LUTs
47K
Max. Distributed RAM
1.2Mb
Total Block RAM
5.3Mb
Clock Management Tiles (CMTs)
3
DSP Slices
240
PS MI/Os
15
PL I/Os
102
PL HP I/Os
96 個
PL HD I/Os
6
Connection mode
Stamp hole
RAM
4GB DDR4, 64bit
QSPI Flash
One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash
8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator
One passive crystal oscillator is provided to PS system
Voltage Input
+12V DC

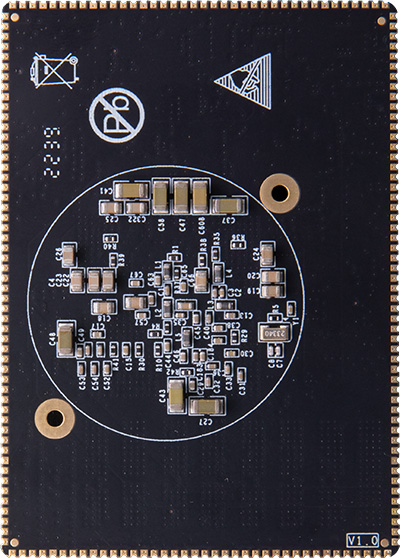

FPGA SoM Board
1

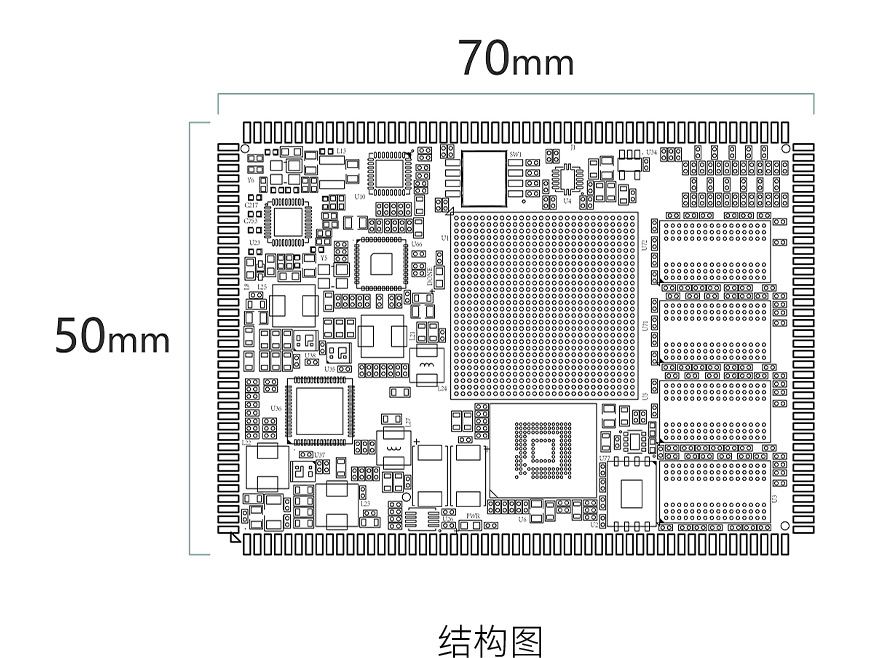

Size Dimension
70mm x 50mm
Number of Layers
16-Layer PCB

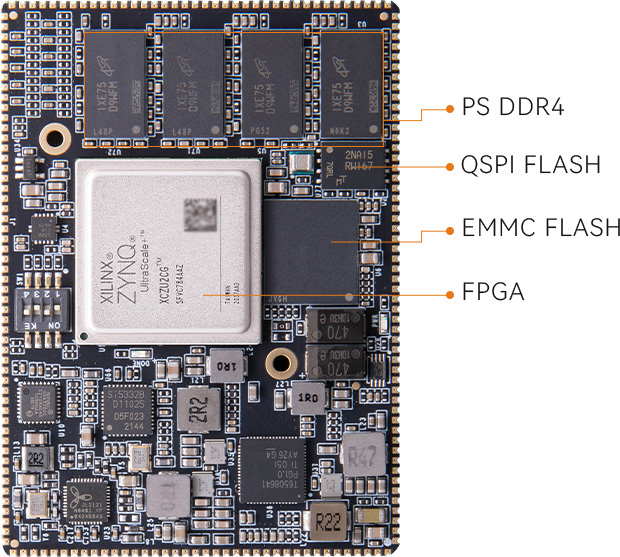

Memory 64bit DDR4 super combination
2x ARM Cortex-A53, 1.2GHz; 2x Cortex?-R5, 500MHz; PS 4GB DDR4
Provide schematic diagram, PCB structure diagram (PDF), packaging, reference design, etc. to facilitate secondary development
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
