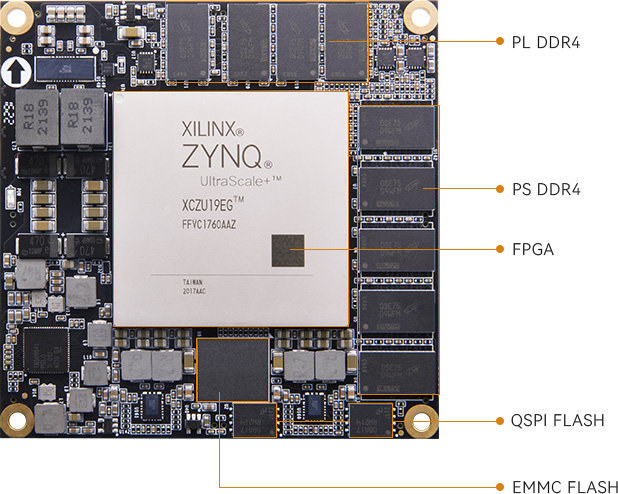

Xilinx Zynq UltraScale+ MPSoC PCIE AI FPGA Development Board XCZU19EG

SoM Module

ACU19EG

FPGA Chip

XCZU19EG-2FFVC1760I

Chip CPU

ARM Cortex?-A53 x4, 1.333GHz，Dual core Cortex?-R5, 533MHz

GPU

Mali?-400 MP2

RAM

PS DDR4，4GB，72bit，2400Mbps, Support ECC
PL DDR4，4GB，64bit,   2400Mbps

PS side High-Speed Connection

PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection

2 x USB 2.0, 2 x SD/SDIO, 2 x UART, 2 x CAN 2.0B,2 x I2C, 2 x SPI, 4 x 32b GPIO

Chip Level

Speed Grades: -2; Industrial Grade, Working Temperature -40°c~85°c

Logic Cells

1,143K

Flip-Flops

1,045K

LUTs

523K

Distributed RAM

9.8Mb

Block RAM

34.6Mb

Ultra RAM

36.0Mb

CMTs

11

DSP Slices

1,968

150G Interlaken

4

100G Ethernet

4

PL PCIE Gen 3

PCIE Gen3 x 5

PL GTH

12.5Gb/s x 32

PL GTY

28.21Gb/s x 16

PL HP I/O

240

PL HD I/O

96

eMMC FLASH

32GB

QSPI FLASH

128MB

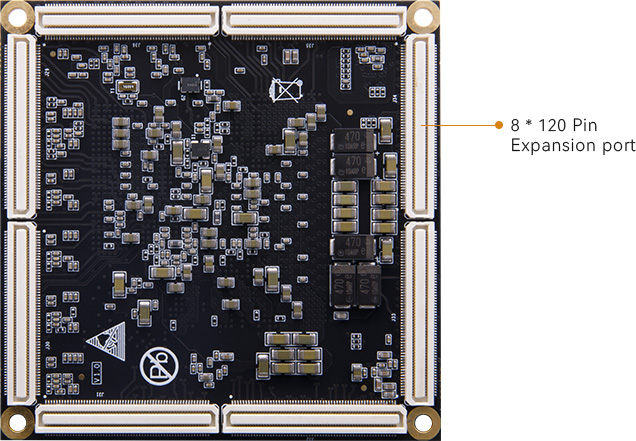

Expansion port

8-way 120-pin 0.5mm spacing extension connector with Panasonic high-speed industrial grade board-to-board connector

Crystal oscillator

1 RTC real-time clock provides 32.768 KHz real-time clock source for PS system
1 single-ended 33.333MHz crystal vibration is supplied to the PS system clock input
1 Differential 200MHz crystal oscillation supplied to PL logic, DDR4 reference clock

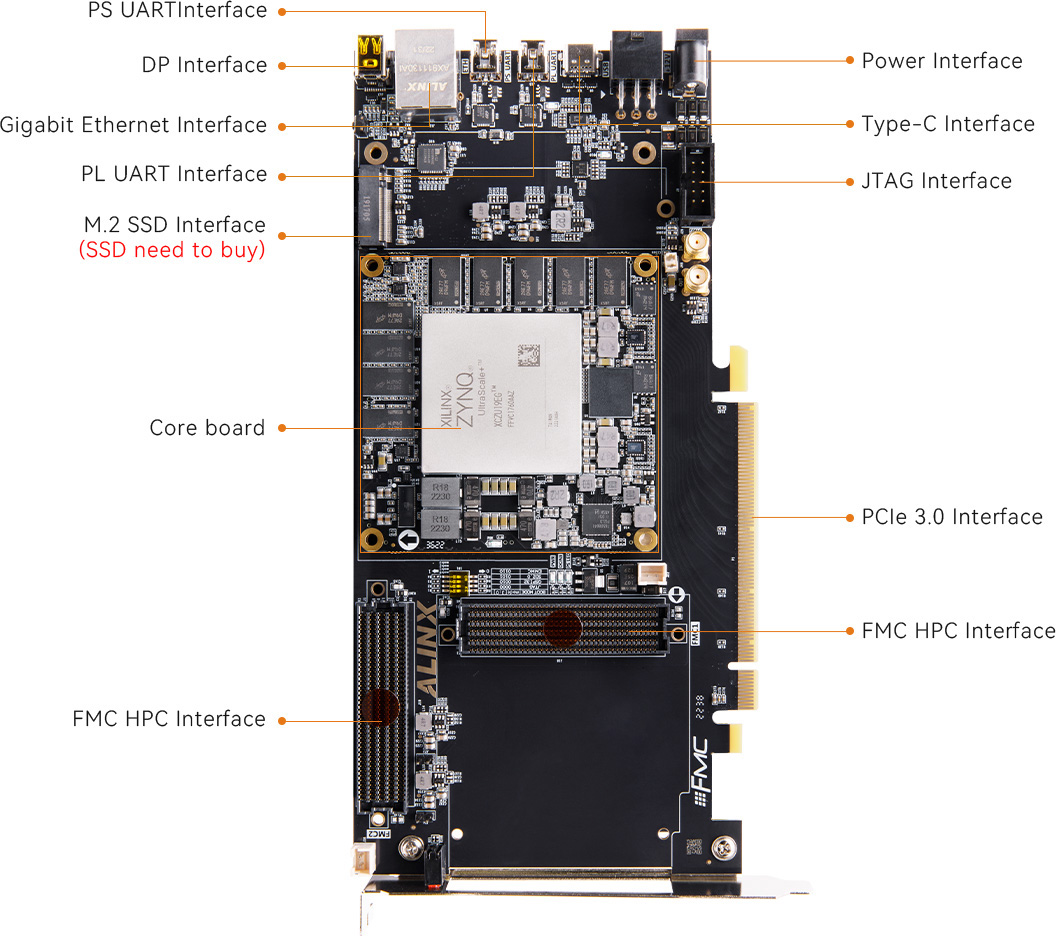

FMC Extension

2 standard FMC HPC extensions, external XILINX or ALINX various FMC subboards ( HDMI input and output module, binocular camera module, high speed AD module, etc. )

PCIE 3.0 Interface

1-way PCIE 3.0 X16 interface for PCIE data communication with PCs

DP Output Interface

1-way standard Display Port output display interface for video image display with maximum support 4K@30Hz perhaps 1080P@60Hz Output.

Type-C interface

1-way USB3.0 Type-C interface, supporting HOST, SLAVE, OTG three modes

M.2 Interface

1-way PCIEx1 standard M.2 interface for connecting M. 2 SSD solid state hard disk, communication speed up to 6Gbps (SSD fixed hard disk needs self-purchase)

USB Serial Port

2 Uart to USB interfaces, one for PS and one for PL to communicate with computer for user debugging

Gigabit Ethernet

1-way 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange

Differential Clock

2-way 156.25M Differential Reference Clock Input

JTAG

10-pin 2.54mm standard JTAG port for downloading and debugging of field programmers

Temperature sensor

1 temperature sensor chip LM75A to detect ambient temperature

EEPROM

EEPROM 24LC04 with 1 piece of IIC interface

RTC Real Time Clock

1 built-in RTC real-time clock

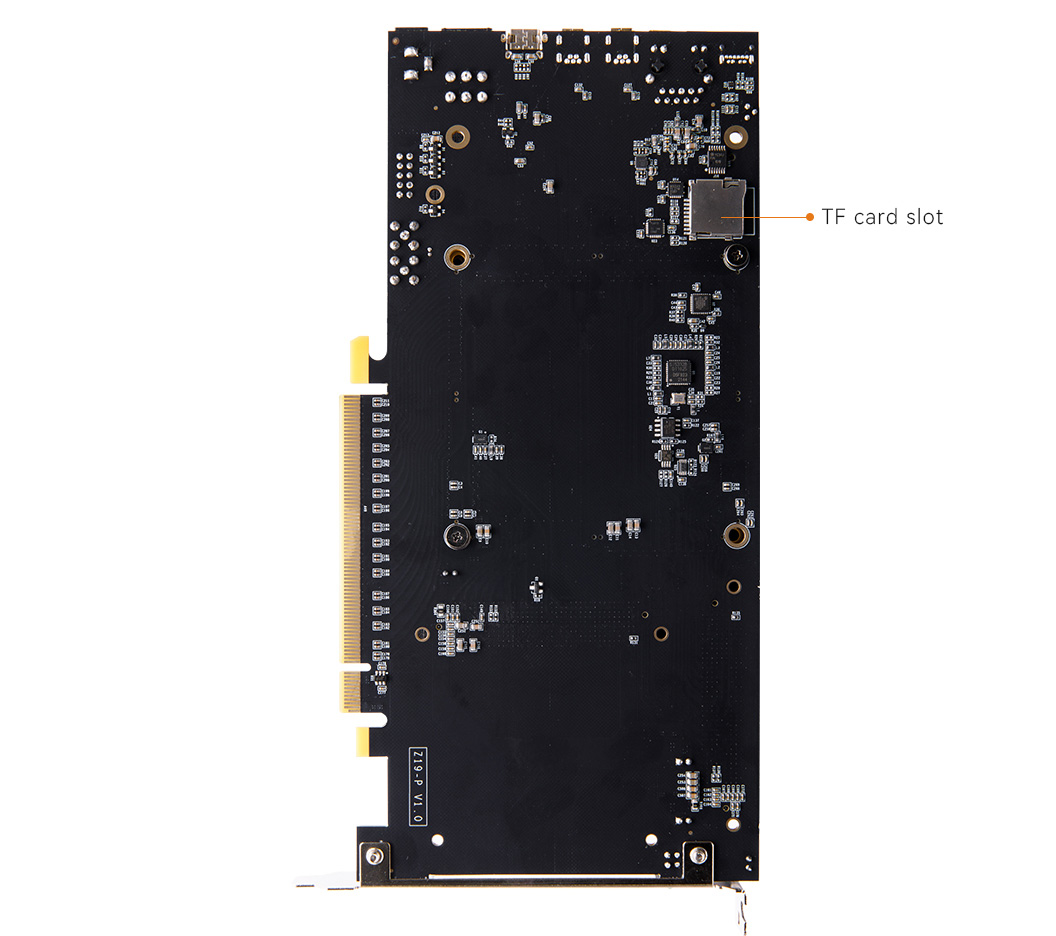

TF card slot

1-way Micro SD card interface for storing operating system mirrors and file systems

LEDs

1 power indicator，2 user lights, 1 DONE configuration light

Voltage Input

+12 V DC

Current Input

Max. Current 3A

FPGA Board

1

DC Fan (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1

PCIe Fence

1

TF Card

1

Card Reader

1

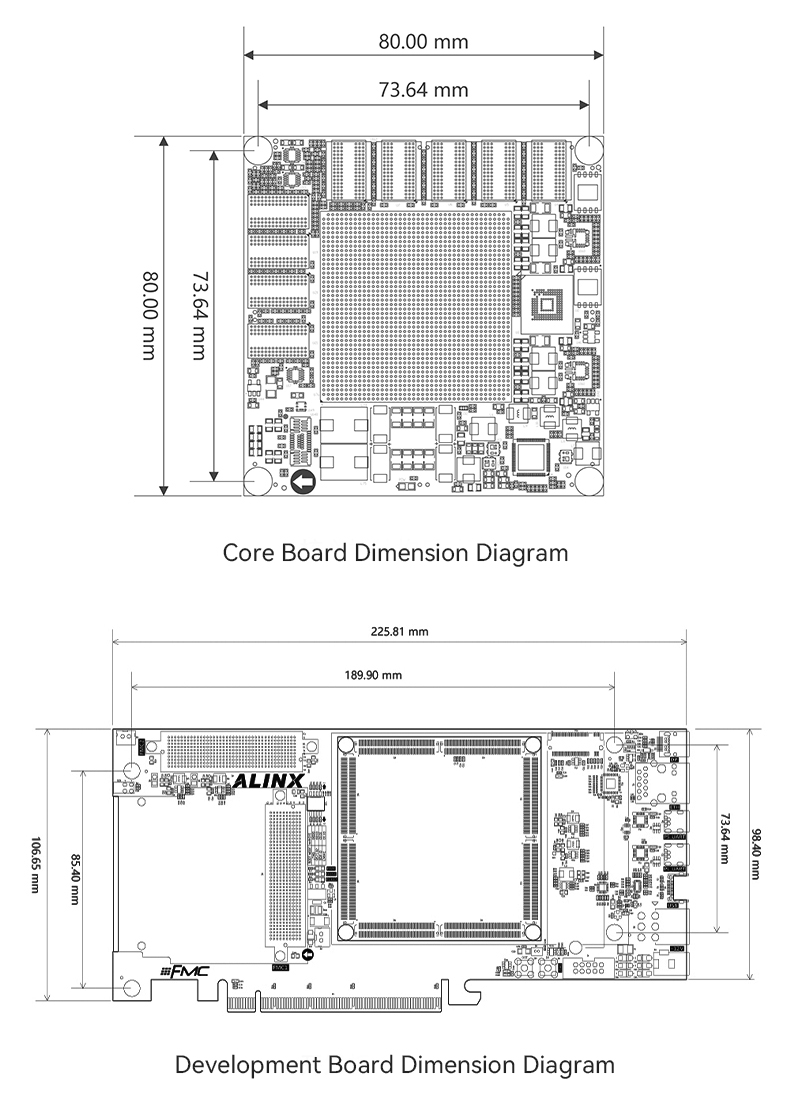

Size Dimension

225.81mm x 106.65mm

Number of Layers

16-Layer Core Board PCB, 12-Layer Carrier Board PCB Reserve independent power layer and GND layer
