XCZU15EG
Model
AXU15EG / AXU15EGBEan
6971390278154Price
$ 3000
Xilinx Zynq UltraScale+ MPSoC XCZU3EG FPGA Development Board
XILINX Kintex-7 3G- SDI SFP PCIE FPGA Development Board XC7K325
XILINX Zynq-7000 SoC XC7Z015 ARM FPGA Development Board
Xilinx Zynq UltraScale+ MPSoC PCIE AI FPGA Development Board XCZU7EV
XILINX Artix-7 SFP FPGA Development Board XC7A100T
Notice for purchase:
This series of development boards include AXU15EG and AXU15EGB.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
Satisfy Network Communication, High-Speed Data Exchange and Storage Industrial Control, Deep Learning, AI Intelligence, Cloud Computing, 4K Video Transmission Processing, and Aerospace Applications
Quad Core ARM Cortex?-A53 + Dual Core ARM Cortex?-R5
Mali?-400 MP2 GPU
PS 4GB DDR4、PL 2GB DDR4
8GB eMMC FLASH、64MB QSPI FLASH
Development Software Version. Vitis 2020.1 Linux Version. petalinux 5.4.0-xilinx-v2020.1 All Doucments Saved in Dropbox, after buy the board, email to get it.
Course S0 Development Environment
01. Vitis Installation
02. Install virtual machine and Ubuntu system
03. Install Linux version of Vitis software on Ubuntu
04. Petalinux tool installation
05. NFS service software installation
06. QT Creator development environment
07. Linux Common Commands
Remark. Vitis 2020.1
Course S1 FPGA Experiment Tutorial
01. Introduction to Ultrascale+ MPSoC
02. FPGA Board Hardware Introduction
03. Introduction to Verilog basic modules
04. PL's "Hello World" LED experiment
05. PLL Experiment Under Vivado
06. FPGA on-chip RAM read and write test experiment
07. FPGA on-chip ROM read and write test experiment
08. FPGA on-chip FIFO read and write test experiment
09. Key Experiment in Vivado
10. PWM Breathing Light Experiment
11. UART Experiment
12. RS485 Experiment
13. PL side DDR4 read and write test experiment
14. HDMI Output Experiment ( AN9134 Module )
15. HDMI Character Display Experiment
16. 7-inch LCD Screen Display Experiment ( AN970 Module )
17. GTX Transceiver Bit Error Rate Test IBERT Experiment
Course S2 SDK Experiment Tutorial
01. Experience ARM, bare metal output "Hello World"
02. PS RTC Interrupt Experiment
03. PS MIO Experiment
04. PS Side UART Read and Write Control
05. PS Side Use of CAN
06. PS Side Use of I2C
07. PS Side Use of Display Port
08. PS Side SD Card Read and Write
09. PS Side Use of Ethernet ( LWIP )
10. PS Side Remote Update QSPI Flash by Ethernet
11. Use of System Monitor
12. PS Side Use of EMIO
13. PL Side Use of AXI GPIO
14. PL Side RS485 Test
15. PL Side Use of Ethernet
16. Custom IP experiment
17. Use of Dual Core AMP
18. Use of“Free RTOS”under ZYNQ
S
19. PL Read and Write PS DDR Data
20. Realize PS and PL Data Interaction through BRAM
21. DMA Loop Test
22. Use of DMA-DAC Waveform Generator
(AN108)
23. Use of DMA-ADC Oscilloscope ( AN108 )
24. Use of DMA-ADC oscilloscope ( AN9238 )
25. Use of DMA-ADC Oscilloscope ( AN706 )
26. Use the Scatter / Gather DMA Based on
ADC Module ( AN108 )
27. Use the Scatter / Gather DMA Based on
DAC Module ( AN9767 )
28. AN5642 Binocular Camera Collection
and Display
29. SD card read and write operation
camera capture
30. Binocular camera Ethernet transmission
31. MIPI Acquisition and Display Based on
AN5641 Module
32. Use of 7 inch LCD Module
33. 7-inch Touch Screen GUI and Touch Control
34. Ethernet Transmission-ADC Acquisition Based on AN108 Module
35. Ethernet Transmission-ADC Acquisition Based on AN9238 Module
36. Ethernet Transmission-ADC Acquisition Based onA N706 Module
Course S3 Linux Basic Tutorial
01. Customizing Linux with Petalinux
02. Program hello world
03. Gpio Control LED
04. Add Boot Scripts and User Files
05. SD Card Root File System
06. QT and OPENCV Cross-Compilation Environment
07. Use Vitis to Develop Linux Programs
08. Vitis Accelerates Basic Platform Creation
09. NVMe SSD operation under Linux
Remark: Linux Version petalinux 5.4.0-xilinx-v2020.1
Course S4 Linux Driver Tutorial
01. Character Device
02. A New Way of Writing Character Devices
03. Device Tree and of Function
04. Pinctrl and gpio Subsystem
05. Concurrent Processing
06. gpio input
07. Timer
08. Interrupt
09. Blocking IO
10. Non-Blocking IO
11. Asynchronous IO
12. Platform
13. Platform and Device Tree
14. MISC device driver
15. Input Subsystem
16. pwm Drive
17. I2C Driver
18. USB Driver
19. SPI Drive
20. Uart Driver
21. Block Device Driver
22. NIC driver
23. DMA Driver
24. Multi-touch screen driver
25. LCD Drive
Course S5 Linux Application Development Tutorial
01. Building a Minimalist Working Environment
02. Hello World with Remote Debugging
03. OpenCV Edge Detection
04. OpenCV+Qt Face Detection
05. GStreamer's Camera Display
06. Qt+DRM+Gstreamer Camera Display
07. Qt+GPU Camera Display
08. Linux Register Operation
Course S6 HSL Tutorial Tutorial
01. Getting to Know Vitis HLS
02. Getting Started
03. HLS Interacts with CPU Registers
04. How to use the built-in Functions in the xfopencv Library
05. Image RGB to Grayscale Conversion
06. Image RGB to YCrCb
07. Image Morphological Filtering
08. Image overlay
09. Image Contrast Adjustment
10. Corner Detection
11. SOBEL operator realizes edge detection
12. Canny Operator Realizes Edge Detection
13. How to Implement opencv Simulation with vitis HLS
Course Vitis-AI Basic
01. Docker Environment Construction
02. Vitis-AI Development Process
03. Neural Network Training based on Keras Framework
04. Debugging Tools
Development board
AN9767 package
AN706 package
AN9238 package
Video package
Deluxe Package
Development board
●
●
●
●
●
●
Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
MIPI camera
●
●
7-inch screen
●
●
Package supporting module, click to learn more
*Core Board, Click to Buy >>

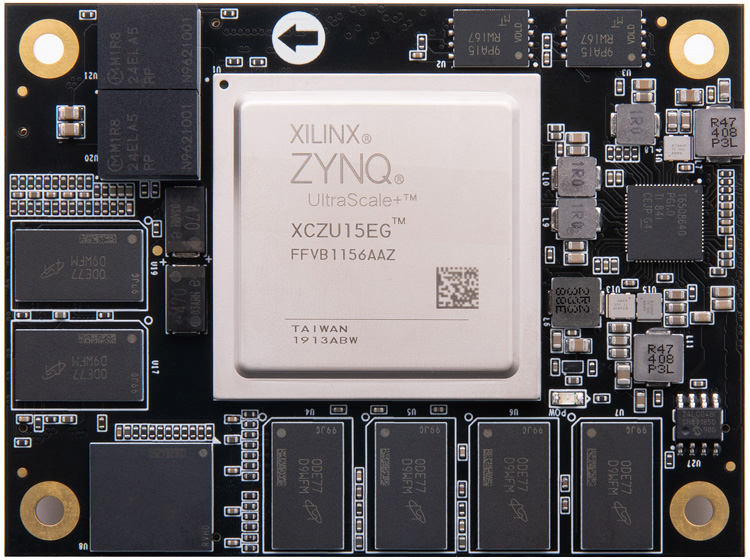

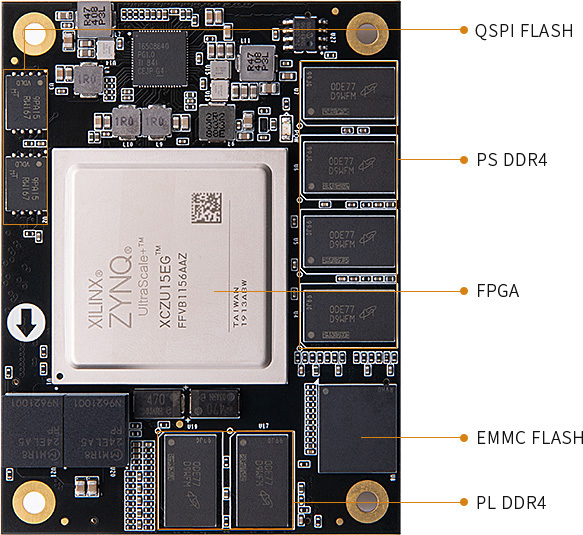

Core Board SOM
ACU15EG
FPGA Chip
XCZU15EG-2FFVB1156I
Chip CPU
4x ARM Cortex-A53, 1.333GHz，Dual-Core Cortex?-R5, 533MHz
Chip GPU
Mali?-400 MP2
Core Board RAM
PS 4GB DDR4, 64bit 2400Mbps
PL 2GB DDR4, 32bit 2400Mbps
PS end High Speed Connector
PCIe Gen2 x4, 2x USB3.0, SATA 3.1,DisplayPort, 4x Tri-mode Gigabit Ether net
PS end General Connector
2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B,2x I2C, 2x SPI, 4x 32b GPIO
PL GTH
12.5Gb/s x16
Chip Level
Industrial Grade
Chip Working Temperature
-40℃~85℃
Speed Grades
-2
Logic Cells
747K
CLB Flip-Flops
682K
Look Up Tables (LUTs)
341K
Global Clock
4
DSP Slices
3,528
MAX.DISTRIBU-TED RAM
11.3Mb
BLOCK RAM
26.2Mb
ULTRARAM
31.5Mb
eMMC FLASH
8GB
QSPI FLASH
64MB
HP I/O
96
HD I/O
66
DDR4
PS DDR4, 4 Pieces of 1G DDR4, 4GB Total, 64bit, Data Speed 2400Mbps
PL DDR4, 2 Pieces of 1G DDR4, 2GB Total, 32bit, Data Speed 2400Mbps
QSPI Flash
2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage
eMMC Flash
8GB, Used as Large-Capacity Storage System
DP Interface
Mini Display Port up to 4K@30Hz or 1080P@60Hz Output ( ALINX customized DP to HDMI cable, need to buy Separately )

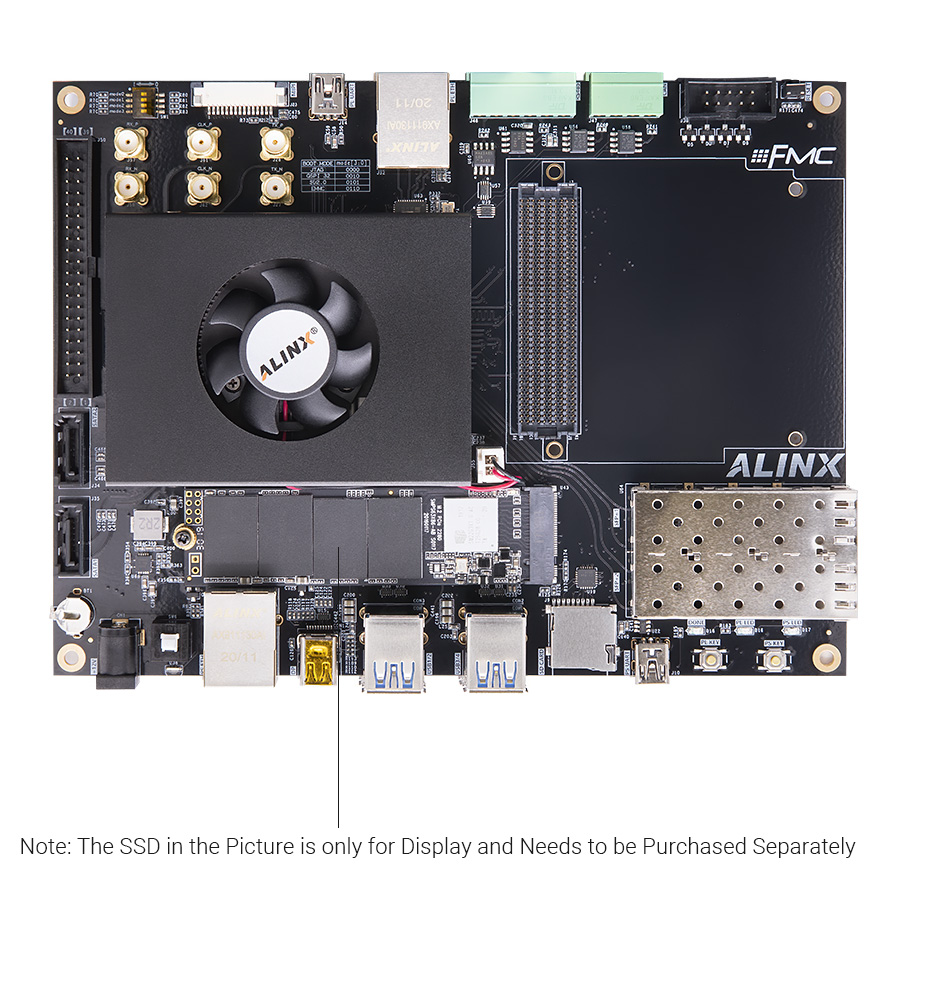

M.2 Interface
Used to Connect the M.2 SSD Solid State Drive ( Need to Buy it Yourself )
MIPI Interface
Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641
SFP Interface x 2
Data Communication Receiving and Transmitting Speed up to 12.5Gb/s
USB 3.0 x 4
Used to Connect External USB Peripherals
USB Uart x 2
Used for Serial Communication with PC or External Devices
Gigabit Ethernet
Two 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange
SATA Interface
2 SATA interfaces, Used to Connect Hard Disk to Store Data
Crystal Oscillator
33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic
RS485 Bus Interface x2
Used for 485 communication Service
CAN Bus Interface x2
Used for CAN Communication Service
FMC Expansion Ports
Standard FMC HPC Expansion PortCan be Connect with Various XILINX or ALINX FMC Modules (HDMI Input/Output Module, Binocular Camera Module, Hight Speed AD Module).
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
40-Pin Expansion Ports
One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
Temperature Sensor
Sensor Chip LM75, Used to Detect the Ambient Temperature
SD Card Slot
1 Micro SD Card Slot, Support SD Mode and SPI Mode
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220
LED
1 LED in the Core Board, 4 LEDs in the Carrier Board
KEYs
1 Reset KEY, 2 User KEYs
Voltage Input
+12V DC
Current Input
Max. Current 3A
FPGA Board
1
DC Fan (Fixed on the Board)
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1
Transparent Protection Board
1
TF Card
1
Card Reader
1

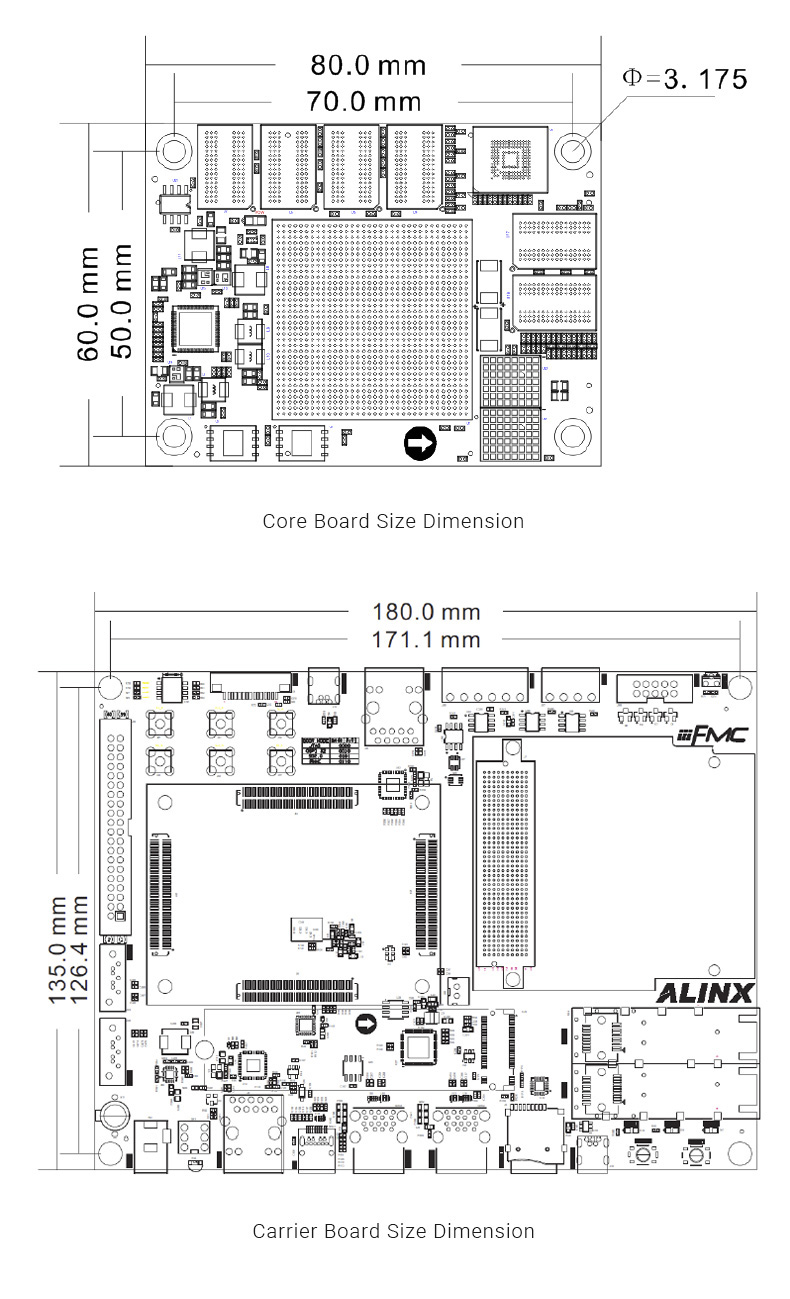

Size Dimension
Core Board 3.15 inch x 2.36 inch, Carrier Board 7.09 inch x 5.31 inch
Number of Layers
16-Layer Core Board PCB, 8-Layer Carrier Board PCB Reserve independent power layer and GND layer
Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring,
traffic safety, smart construction site, smart hotel, smart agriculture, Internet of Things
Vehicle Identification
Infrared Vehicle Identification
Pedestrian recognition
Indoor Person Recognition
Fire detection
Helmet detection
Concrete defect detection
PCB defect detection
Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM
Quad Core ARM Cortex-A53, 1.333GHz; Dual Core Cortex?-R5, 533MHz; PS 4GB DDR4, 64bit; PL 2GB DDR4, 32bit
Intelligent Recognition, Image and Video Processing Security Monitoring, Machine Vision

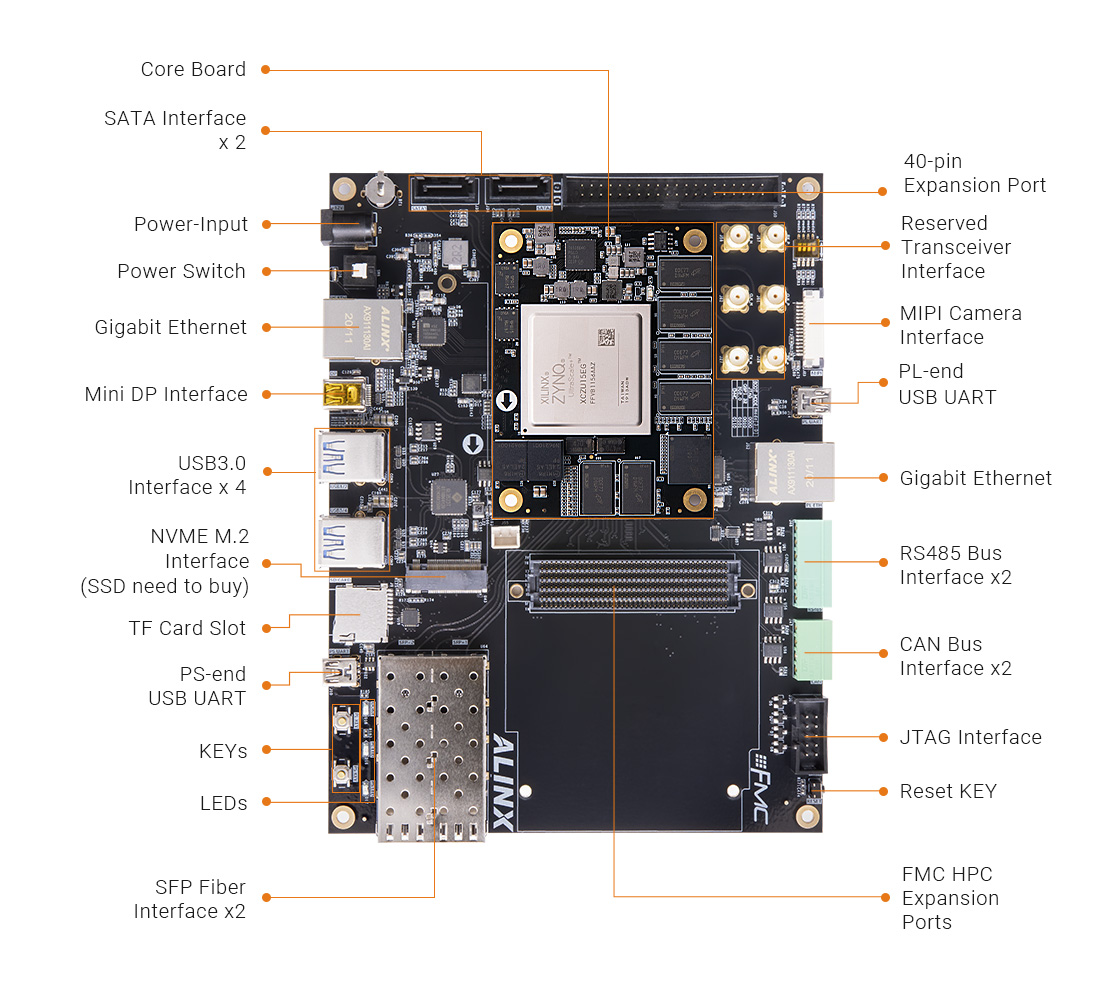

Intelligent Recognition, Image and Video Processing Security Monitoring, Machine Vision Rich Interfaces in the Carrier board. Standard FMC HPC Interface, SFP Interface x2, M.2 SSD Interface, DP Interface, MIPI Camera Interface, USB 3.0 x4, Gigabit Ethernet x2 USB Uart x2, SD Card Slot, CAN Bus Interface x2, RS485 Bus Interface x2 Apply to AI Intelligence, Cloud Computing, Deep Learning Network Communication, High-Speed Data Transmission Video Image Processing and Industrial Control
Receiving and Transmitting Speed up to 12.5Gb/s

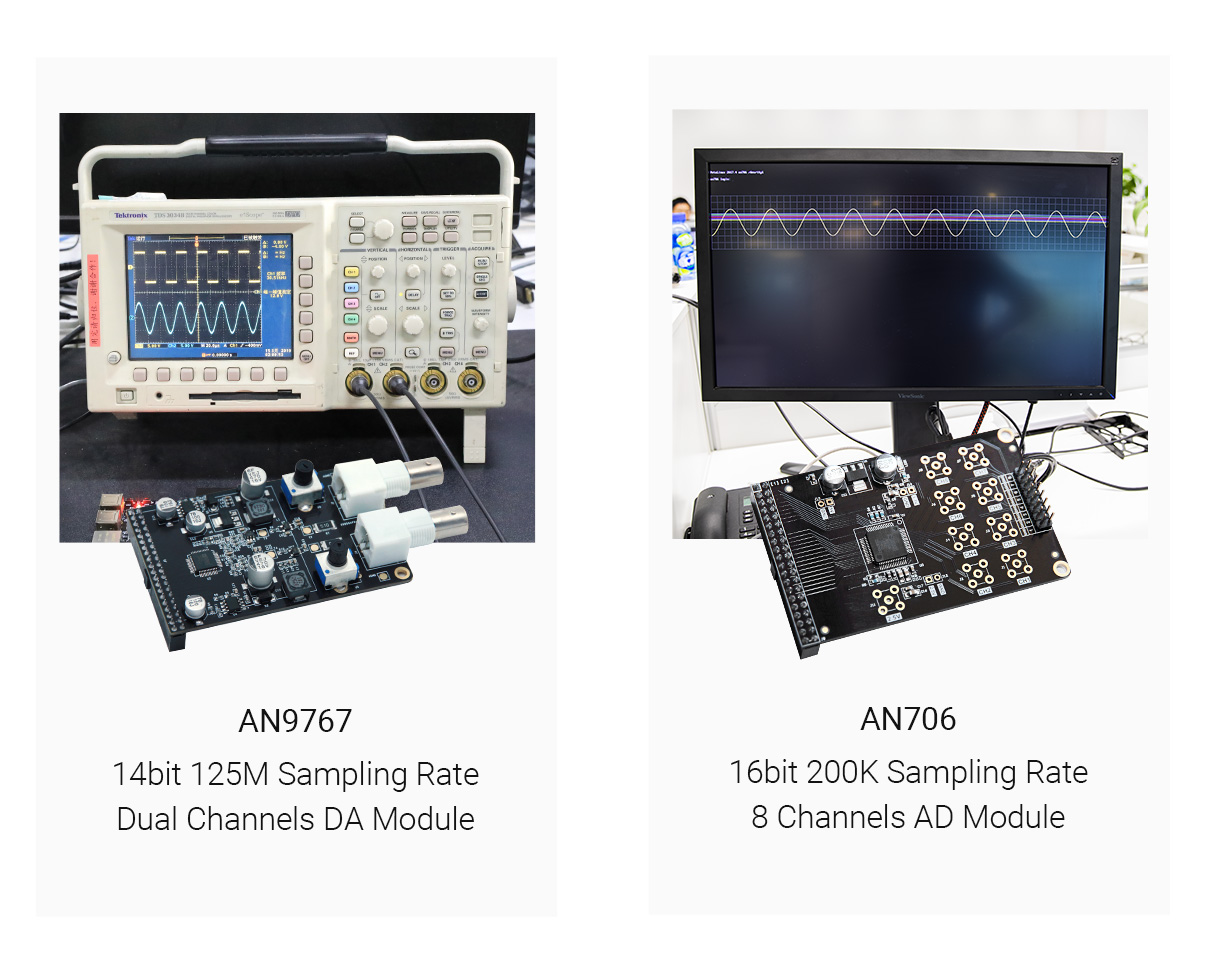

AN9767/AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
MIPI Camera Module AN5641 On-Board Demo
The MIP Camera Module AN5641 for Video Capture and Displays it on the Monitor through the Mini DP Interface
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
