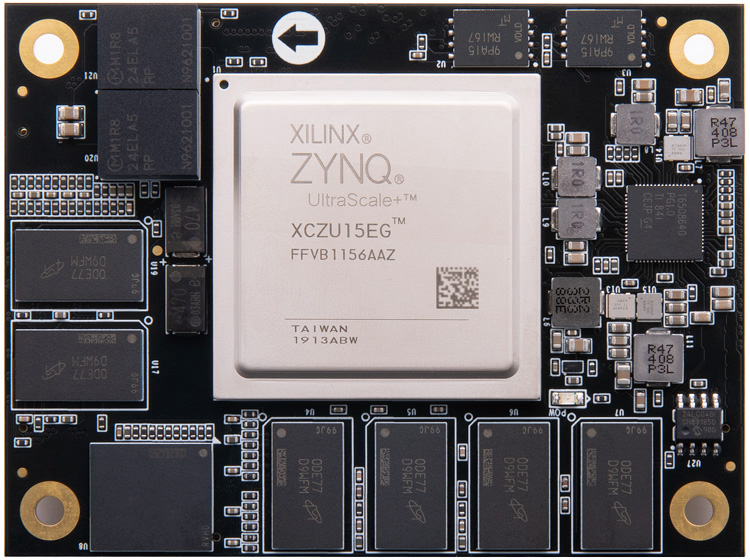

Xilinx Zynq UltraScale+ MPSoC SOM AI FPGA Core Board XCZU15EG

    XCZU15EG

    • Model

      ACU15EG
    • Email

      David.ding@alinx.com
    • Temperature class

      -40℃~85℃
    • Ean

      6971390278833
    • Price

      $ 2400

    Related


    Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

    Quad-core ARM Cortex-A53 and Dual-core Cortex-R5 Real-time Processors

    Apply to 5G Wireless Infrastructure, High-Speed Data Exchange and Storage Industrial Control, AI intelligence, Cloud computing 4K Video Transmission Processing, and Aerospace

    • ·ARM CPU

      4x  ARM CORTEX-A53 + Dual Core  ARM CORTEX-R5

    • ·Chip CPU

      Mali?-400 MP2 GPU

    • ·6GB DDR4

      PS 4GB DDR4, PL 2GB DDR4

    • ·FLASH storage

      8GB eMMC FLASH, 64MB QSPI FLASH


    key Features


    Corresponding Development Board

    ·AXU15EG




    *Learn about the corresponding development board, Click to see details>>


    Product Performance

    Main Parameters

    Core board

    ACU15EG

    FPGA Chip

    XCZU15EG-2FFVB1156I

    Chip CPU

    4x ARM Cortex-A53, 1.333GHz; Dual Core Cortex?-R5, 533MHz

    Chip GPU

    Mali?-400 MP2

    RAM

    PS  DDR4 4GB, 64bit, 2400Mbps
    PL  DDR4 2GB, 32bit, 2400Mbps

    PS-end High Speed Connection

    PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ether net

    PS-end General Connection

    2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

    PL-end GTH

    12.5Gb/s x 16

    Chip Level

    Industrial Grade

    Working Temperature

    -40°c~85°c

    Speed Grades

    -2

    Logic Cells

    747K

    CLB Flip-Flops

    682K

    Look Up Tables (LUTs)

    341K

    Global Clock

    4

    DSP Slices

    3,528

    MAX.DISTRIBU-TED RAM

    11.3Mb

    BLOCK RAM

    26.2Mb

    ULTRARAM

    31.5Mb

    EMMC FLASH

    8GB

    QSPI FLASH

    64MB

    HP I/O

    96

    HD I/O

    66


    Interface and Function

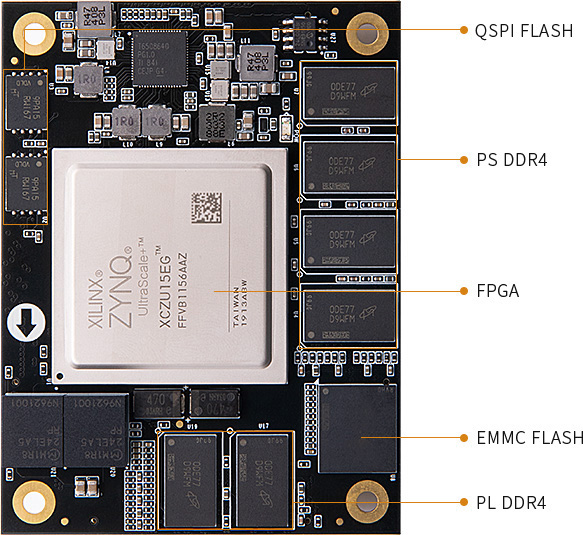

    QSPI Flash

    2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage

    EMMC Flash

    8GB, Used as Large-Capacity Storage System

    40-120 Pin Expansion Ports

    Panasonic Industrial Grade High-Speed Inter-Board Connectors

    Crystal Oscillator

    33.333MHz Provide for the PS system
    200MHz Provide DDR Reference Clock for the PL Logic


    Power Supply Parameters

    Voltage Input

    Board to Board Connector, + 12V DC


    Package List

    FPGA SoM Board

    1





    Structure Size

    Size Dimension

    3.15 inch x 2.36 inch

    Connector Height

    0.12 Inch

    Number of Layers

    16-Layer Core Board PCB






    XILINX VITIS-AI DPU

    AI Recognition and Detection, Deep Computational Learning

    Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things

    Vehicle Identification

    Infrared Vehicle Recognition


    Pedestrian Recognition

    Indoor Person Recognition

    Fire Detection

    Hard Hat Detection

    Concrete Defect Detection

    PCB Defect Detection

    Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM

    Industiral Grade Chip Dual ARM Application Processor

    4x ARM Cortex-A53, 1.333GHz; Quad Core Cortex?-R5, 533MHz; PS 4GB DDR4, 64bit, Data rate2400Mbps; PL 2GB DDR4, 32bit, Data rate 2400Mbps



    Get Started Quickly,Shorten Learning and Development Time

    Provide Documents to Study

    Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
