XC7Z035
Model
AX7350BEan
6971390272374Price
$ 1280
XILINX Zynq-7000 PCie FMC HPC FPGA Development Board XC7Z100
XILINX Kintex-7 FMC LPC PCIe SFP FPGA Development Board XC7K325
Xilinx Zynq UltraScale+ MPSoC XCZU5EV FPGA Development Board
XILINX Zynq7000 SoC FPGA Development Board XC7Z020
Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Board XCZU2CG
Apply to Data Exchange and Storage, Video Transmission Optical Fiber/Ethernet Communication, Industrial Control
Supporting Verilog HDL Demos and Docuemnts . All Doucments Saved in Dropbox, after buy the board, email to get it.
01: FPGA Development Board AX7350 Introduction and Inspection
02: Introduction to ZYNQ
03: Vivado development environment
04: PL's "Hello World" LED experiment
05: HDMI output experiment
06: Programmable clock SI5338 experiment
07: PL end DDR3 read and write test
08: GTX transceiver bit error rate test IBERT experiment
09: Experience ARM, bare metal output "Hello World"
10: PS lights up the LED lights of the PL
11: PS timer interrupt experiment
12: PL button interrupt experiment
13: Ethernet Experiment ( LWIP )
14: Custom IP experiment
15: Use VDMA to drive HDMI display
16: Curing procedure
17: PCIe ROOT Enumeration test
18: Install virtual machine and Ubuntu system
19: Ubuntu installs theVivado software for Linux
20: Petalinux tool installation
21: NFS service software installation
22: Customizing Linux with Petalinux
23: Develop Linux programs using the SDK
24: GPIO experiment under Linux
25: HDMI display under Petalinux
26: Use the Debian 8 desktop system
27: PCIe SSD application
28: QSPI and EMMC boot Linux
FPGA Board
HDMI Package
AD Packge
Camera Package
4 Ethernet Package
Luxury Package
FPGA Board
●
●
●
●
●
●
FL9134
●
●
FL9627
●
●
FL0214
●
●
FL9031
●
●
Supporting Modules in the Package, Click to Learn More

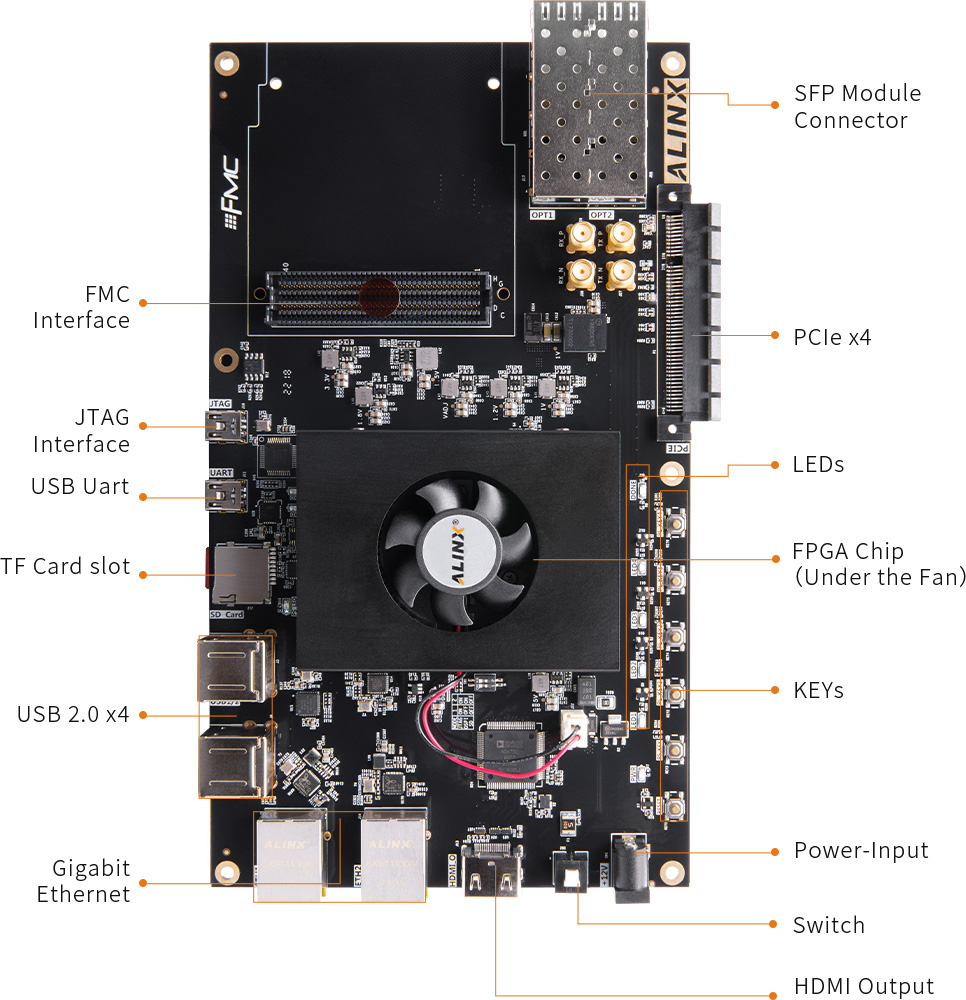

FPGA Board
AX7350B
FPGA Chip
XC7Z035-2FFG676I
Kernel
Dual-Core ARM Cortex-A9, Main Frequency 800MHz
PL -end RAM
1GB DDR3, Data Rate 1600Mbps
PS -end RAM
1GB DDR3, Data Rate 1066Mbps
GTX Transceivers
8-Channels Support PCIE Gen2 x8
Speed Grades
-2
Working Temperature
-40°C~85°C
Look Up Tables (LUTs)
171900
CLB Flip-Flops
343800
eMMC FLASH
8GB
MIO(ARM Side)
37
Voltage Adjustable IO
96
Chip Level
Industrial Grade
Logic Cells
275k
Multiplier
900 ( 18x 25MACCs )
Block RAM
17.6Mbit
QSPI FLASH
256MBit
PL IO(FPGA)
144
LVDS
48
DDR3
PS DDR3 1GB, 32bit Bus
PL DDR3 1GB, 32bit bus
QSPI Flash
256Mbit, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as a Large-Capacity Storage Device in the ZYNQ System
SFP Interface
2-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s
PCIe 2.0 x 8
Support PCIe 2.0 x4 ROOT Mode, Single Channel Communication Rate can be as be Up to 5GBaud, Can Connect to NVMe SSD
Ethernet Interface
2x 10 / 100M / 1000M Ethernet RJ-45 Interfaces for Data Exchange
JTAG
USB JTAG Debugging Interface, Used for TAG Interface to Debug and Download ZYNQ System
HDMI Output
HDMI Video Output Interface, Support up to 1080P@60Hz Output, Support 3D Output
USB Uart
Used for Serial Communication with PC or External Devices
USB 2.0 x 4
Used to Connect USB Peripherals such as Mouse and Keyboard
Crystal Oscillator
33.333Mhz Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic
Programmable ClockChip provide the Clock Source for GTX
and a Reference Clock for PCIE, SFP and DDR operations
TF Card Slot
TF Card for Store Operating System Image and File System
LED
5 LEDs, 1 LED Controlled by PS, 4 LEDs Controlled by PL.
KEYs
6 KEYs, 1 Reset KEY, 1 KEY Controlled by PS and 4 KEYs Controlled by PL.
FMC Expansion Port
Standard FMC LPC Expansion PortCan be Connect with Various XILINX or ALINX FMC Modules (HDMI Input/Output Module, Binocular Camera Module, Hight Speed AD Module). FMC expansion port contains 84 pairs of differential IO signals and 8 high-speed GTX transceiver signals
Voltage Input
+12V DC
Current Input
Max. Current 2A
FPGA Board
1
DC Fan (Fixed the Board)
1
Mini USB Cable
2
Transparent Protection Board
1
12V Power Adapter
1
Card Reader
1
TF Card
1

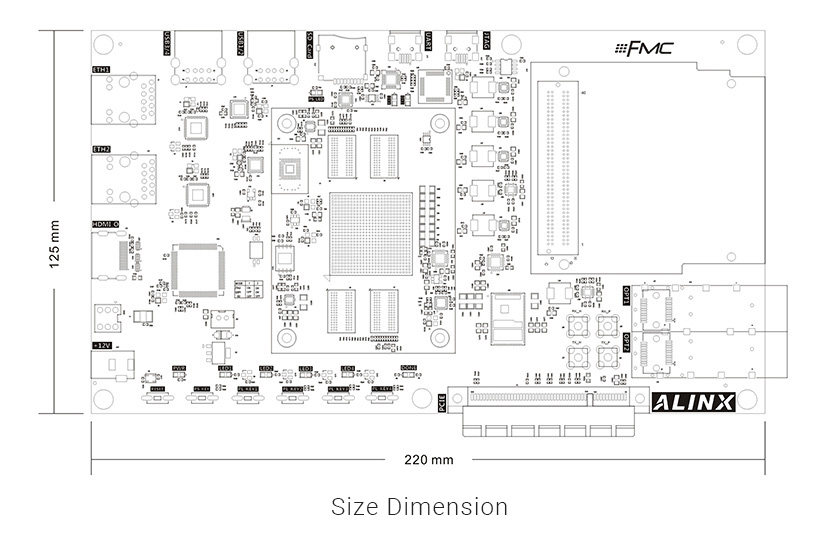

Size Dimension
8.66 inch x 4.92 inch
Number of Layers
12-Layer PCB
Industrial Ethernet, Video Transmission Gigabit Ethernet and SFP Communication High-Speed Data Transmission Exchange
FMC Camera Module FL0214 is Connected to FMC Inteface to realize optical fiber video transmission
The FPGA Development Board Collects Video Images through the Camera Module,and Transmits it to another FPGA Development Board through the SFP Interface. After the SFP Interface Receives the Data, Displayed it to the Monitor through the HDMI Interface.
SFP Transceiver Communication Eye Diagram
34 Pairs of Differential IO Signals 1 High-Speed GTX Transceiver Signals
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
