XC7Z020
Model
AX7Z020/ AX7Z020BEan
6971390270073Price
$ 360Notice for purchase:
This series of development boards include AX7Z020 and / AX7Z020B.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
Xilinx FPGA introduction development
AX7Z020 Supporting Verilog HDL Demos and Docuemnts
All Doucments Saved in Dropbox, after buy the board, email to get it.
Course S1_Basic Tutorial
01: Software Package Introduction and FPGA Board Inspection
02: Introduction to ZYNQ
03: Vivado development environment
04: PL's "Hello World" LED experiment
05: HDMI output experiment
06: Experience ARM, bare metal output "Hello World"
07: PS timer interrupt experiment
08: PS MIO Experiment
09: PS EMIO Experiment
10: PL AXI GPIO Experiment
11: Ethernet Experiment ( LWIP )
12: Custom IP experiment
13: Use VDMA to drive HDMI display
14: Install virtual machine and Ubuntu System Part
15: Ubuntu installs the Vivado software for Linux
16: Petalinux tool installation
17: NFS service software installation
18: Customizing Linux with Petalinux
19: Develop Linux programs using the SDK
20: GPIO experiment under Linux
21: HDMI display under Petalinux
22: Use the Debian 8 desktop system
23: Making QSPIFlash boot Linux
Course S2 SDK Application Tutorial
01: PS side UART read and write control
02: Use of XADC
03: I2C read and write
04: CAN bus read and write
05: RS485 Test
06: PL read and write PS DDR data
07: Realize PS and PL data interaction through BRAM
08: Use of dual core AMP
09: Use of Free RTOS under ZYNQ
10: DMA loop test
11: Use of DMA-DAC waveform generator (AN108)
12: Use of DMA-ADC oscilloscope (AN108)
13: Use of DMA-ADC oscilloscope (AN9238)
14: Use of DMA-ADC oscilloscope (AN706)
15: Use of the SG DMA based on ADC module (AN108)
16: Use the SG DMA based on DAC module (AN9767)
17: OV5640 camera acquisition display (1)
18: OV5640 camera acquisition display (2)
19: Binocular camera Ethernet transmission
20: SD card read and write operation BMP picture display
21: SD card read and write operation camera capture
22: MIPI acquisition and display based on AN5641 module
23: Audio module AN831 recording and playback
24: Use of 7 inch LCD module
25: 7-inch touch screen GUI and touch control
26: Ethernet Transmission-ADC Acquisition Based on AN108 Module
27: Ethernet Transmission-ADC Acquisition Based on AN9238 Module
28: Ethernet Transmission-ADC Acquisition Based on AN706 Module
29: Remote update QSPI Flash based on UDP / TCP
Course S3 HSL Application Tutorial
01: Getting to Know HLS Part
02: Status Indicator LED
03: Floating Point Coprocessing
04: Video Color Bar
05: Video Frame Buffer Read and Write Management
06: Image Scaling Overlay
07: Character Overlay
08: Image Contrast Adjustment
09: Auto Focus
10: Edge Detection
11: Corner Detection
12: Fast Fourier Transform
Course S4 Linux Application Tutorial
01: QT Application on ZYNQ
02: OpenCV application display of USB camera
03: Binocular camera module OpenCV display
04: Touch screen module application
05: AXI DMA Read and Write Test
06: DMA-based ADC Waveform Display ( AN926 )
07: DMA-based ADC Waveform Display ( AN706 )
08: Autorun petalinux application
09: Appendix - Linux Common Commands
AN831 Collection Package
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
Downloader Cable USB
●
●
●
●
●
●
AN831
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
7-inch LCD
●
●
Package supporting module, click to learn more

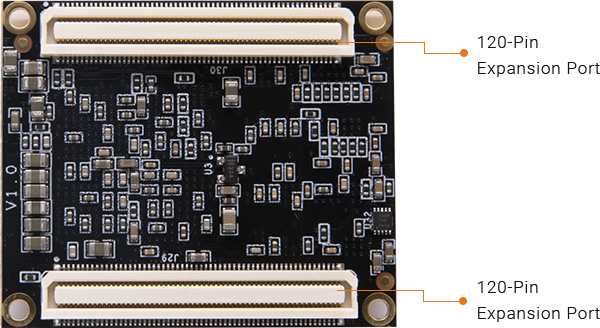

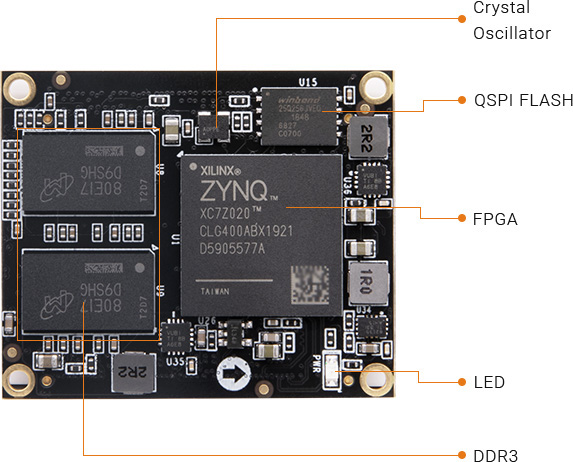

*Learn More about the Core Board, Click to View >

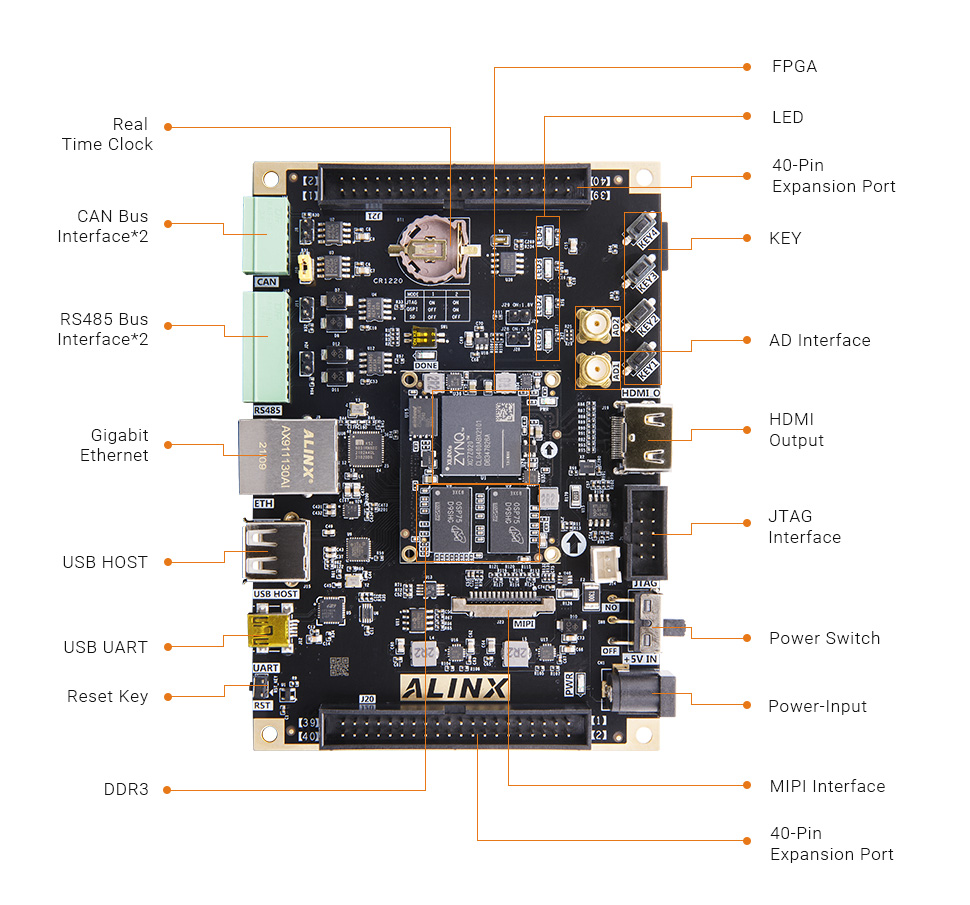

FPGA Board
AX7Z020
FPGA Chip
XA7Z020-1CLG400I / XC7Z020-2CLG400I
Kernel
Dual-Core ARM Cortex-A9
RAM
DDR3 1GB, Data Rate 1066Mbps
Logic Cells
85K
Look Up Tables ( LUTs )
53,200
CLB Flip-Flops
106,400
DSP Slices
220
Block RAM
4.9Mb
PS MIO
48
PL IO
120
JTAG
JTAG Interface to Debug and Download ZYNQ System
Ethernet Interface
10 / 100 / 1000M Adaptive Ethernet with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment
HDMI
HDMI Image and Video Input / Output Interface, Supports 1080@60Hz
USB HOST
Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk
ＵSB Uart
Used for OTG Communication with PC or USB Device
CAN Bus
2 CAN Bus Interface, for User CAN Communication Service
RS485
2 RS485 Interfaces, 485 communication Services for Users
AD Interface
2 SMA Interfaces, Used for Analog Signal Input and Voltage Conversion
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220（Voltage 3V, Buy it yourself）
QSPI FLASH
256Mbit, Used for Storage of System Files and User Data
LED
4 User LEDs, 2 Power LEDs, Cofiguration LED
key
4 User Keys, 1 Power Switch, 1 Reset Key
Ｃrystal Oscillator
33.333Mhz, Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic
SD Card Slot
Insert Micro SD TF Card, Store Operating System Image and File System
MIPI Interface
Used for connect with MIPI Camera Module [available only for AX7Z020]
Expansion Port
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the 68 IOs Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules.
EEPROM
EEPROM 24LC04 with IIC Interface
Temperature Sensor
Temperature Sensor chip LM75, used to detect the temperature of the environment around the board
Voltage Input
+5V DC
Current Input
Max. Current 2A
Rating Lable
5V / 2A
FPGA Board
1
TF Card
1
Mini USB Cable
1
Card Reader
1
5V Power Adapter
1
USB Downloader Cable
1
Mini USB Cable
1

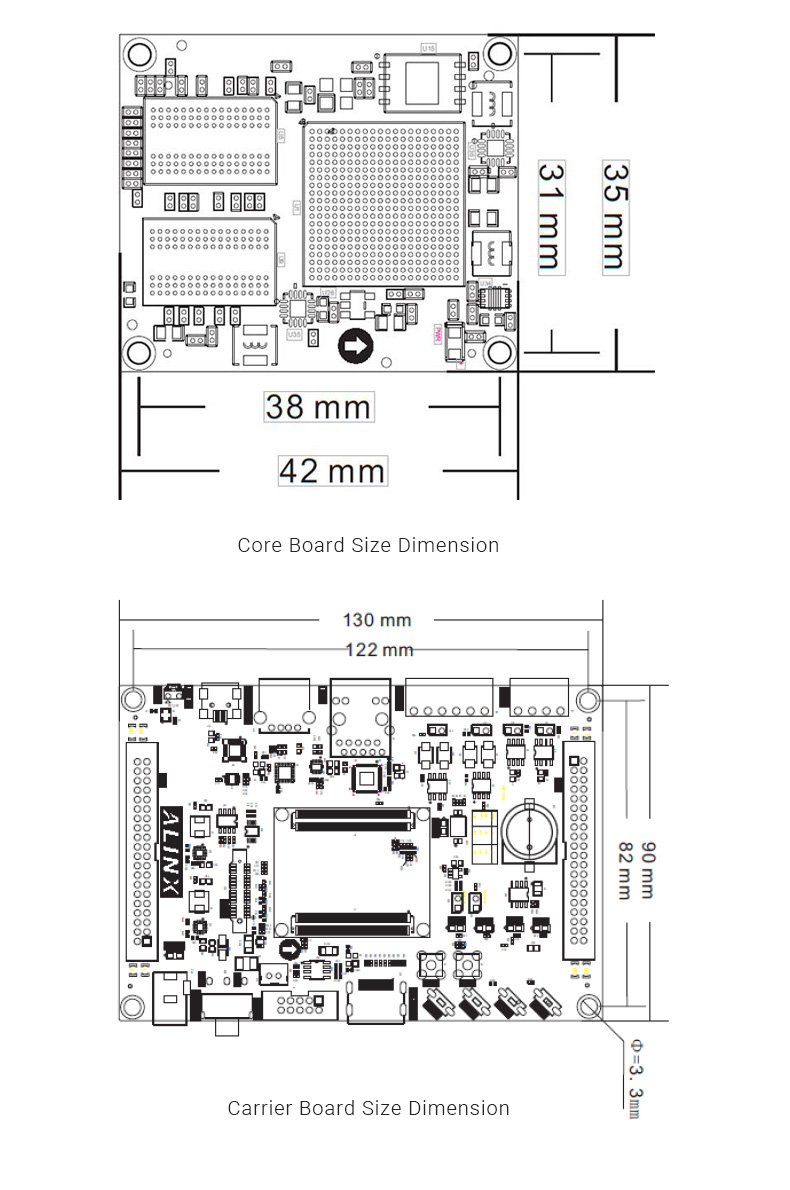

Size Dimension
Core Board: 1.38 inch x 1.65 inch, Carrier Board: 5.12 inch x 3.54 inch
Number of Layers
12-Layer Core Board PCB, 8-Layer Carrier Board PCB, Reserved Independent Power Layer and GND Layer
With a Super Combination of Memory DDR3
Intelligent Identification, Medical Security, Vehicle Digital, Industrial Control, Smart Grid
Dual Lens Camera Module On-Board Demo
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the ZYNQ Development Board. The ZYNQ Development Board Runs the Linux Operating System, and the Video Data is Displayed Using QT to Realize Binocular Display Simultaneously.

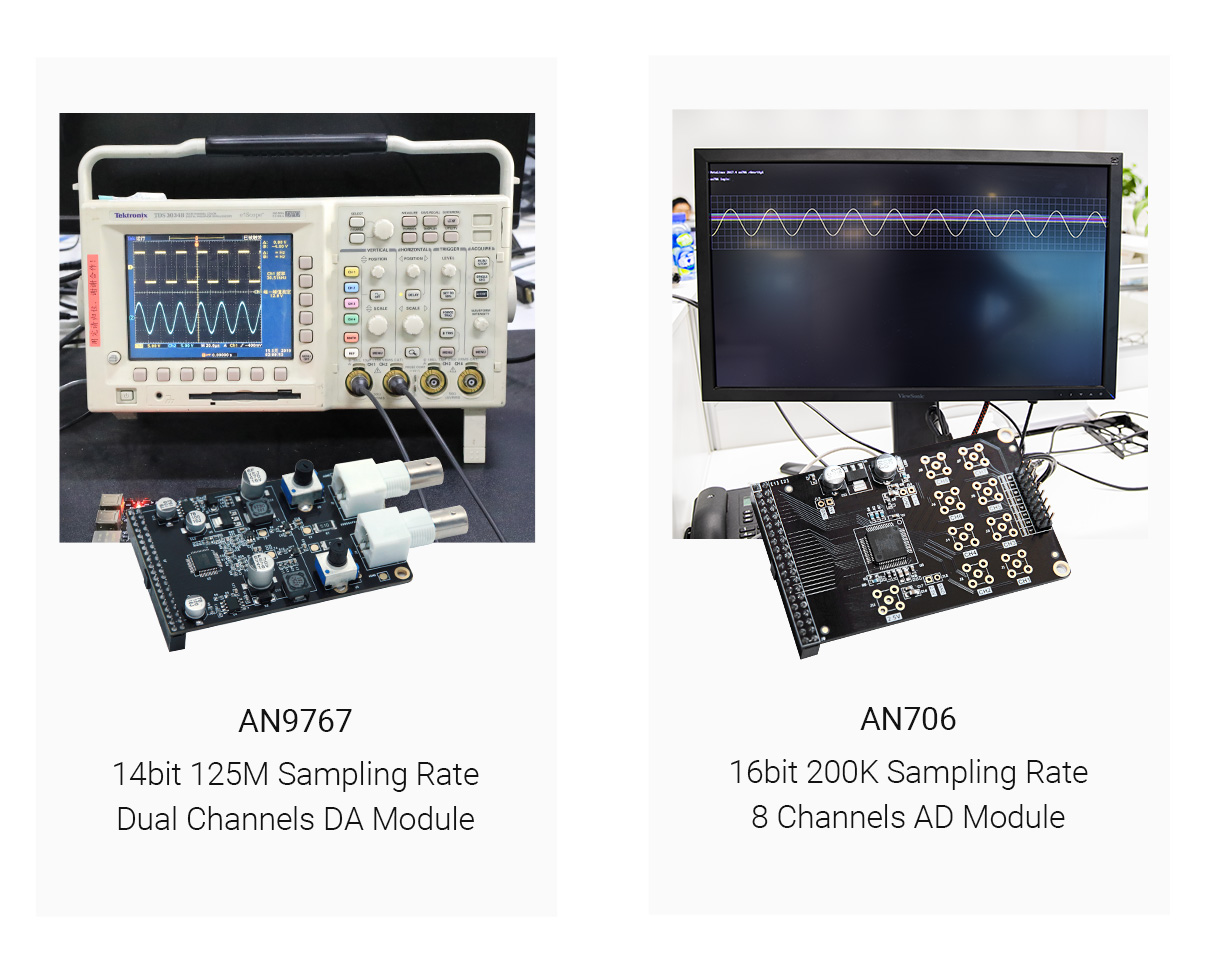

AN9767 / AN706 Module On-Board Demo
The Signal Source Output Signal is Connected to the AN9767/AN706 Module,and is Displayed to the Monitor through the HDMI Interface of the ZYNQ Development Board. Run the Linux Operating System and use QT to Draw Waveform Data. The Whole Process Involves Data Transmission BetweenPL and PS, and Software Development under the Linux System.
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
