XC7A200T
Model
AX7A200/ AX7A200BEan
6971390270738Price
$ 520
Xilinx Zynq UltraScale+ MPSoC XCZU15EG FPGA Development Board
XILINX Zynq-7000 SoC PCie FMC HPC FPGA Development Board XC7Z100
ALINX FPGA Board Xilinx Artix UltraScale+ XCAU15P FMC HPC AXAU15
Xilinx Zynq UltraScale+ MPSoC PCIE AI FPGA Development Board XCZU19EG
XILINX Artix-7 PCIe SFP FPGA Development Board XC7A200T
Notice for purchase:
This series of development boards include AX7A200 and AX7A200B.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
Apply to PCIe Communication and Data Processing Video Image Transmission and Processing Optical Fiber Communication
Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.
00. vivado2017.4 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. I2C Interface EEPROM Experiment
07. SD Card Read and Write Experiment
08. HDMI Test Experiment
09. DDR3 Read Write and Simulation Experiment
10. Recording and playback Experiment of AN831 Module
11. SD Card Music Player Experiment
12. Character Display Experiment
13. SD Card Read BMP Picture Display Experiment
14. OV5640 Camera Display Experiment
15. SOBEL Edge Detection Experiment
16. AD9238 Waveform Dispaly Experiment
17. AD7606 Waveform Display Experiment
18. AD / DA Testing Experiment
19. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
20. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
21. GTX Fiber Optic Communication IBERT Testing Experiment
22. AD9238 Chip Ethernet Transmission
23. AD7606 Chip Ethernet Transmission Experiment
24. AD9280 Chip Ethernet Communication
25. Gigabit Ethernet Video Transmission Experiment
26. GTP Fiber Optic Communication IBERT Testing Experiment
27. Video Image GTP Fiber Optic Communication Testing Experiment
28. PCIe Speed Test Experiment
29. PCIe HDMI Input Experiment
30. PCIe HDMI Output Experiment
31. PCIe xdma Interface Experiment
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
4.3-inch LCD
●
●
Supporting Modules in the Package, Click to Learn More

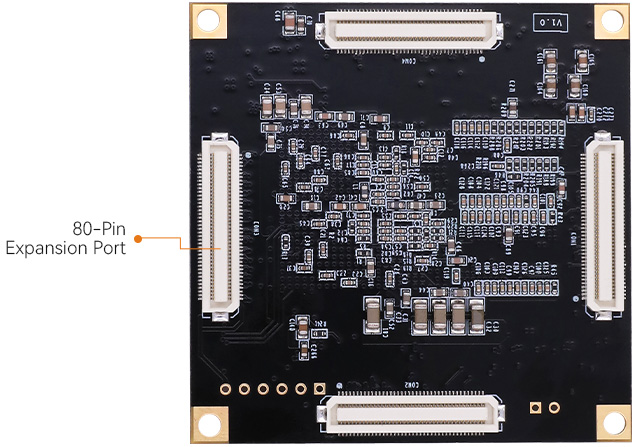

*Core Board, Click to Purchase >>
FPGA Chip
XC7A200T-2FBG484I
Logic Cells
215360
Look Up Tables ( LUTs )
33650
CLB Flip-Flops
269200
Block RAM
13140KB
DSP
740
Expansion IOS
180（3.3V）
Speed Grades
-2
Chip Level
Industrial Grade
Working Temperature
-40°c~85°c
PCIe Gen2
Supports PCI Express 2.0 x4
XADC
12bit, 1Mbps AD
DDR3
2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
256Mbit, Used as FPGA User Data Storage
Crystal Oscillator
200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver
Transceiver
4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

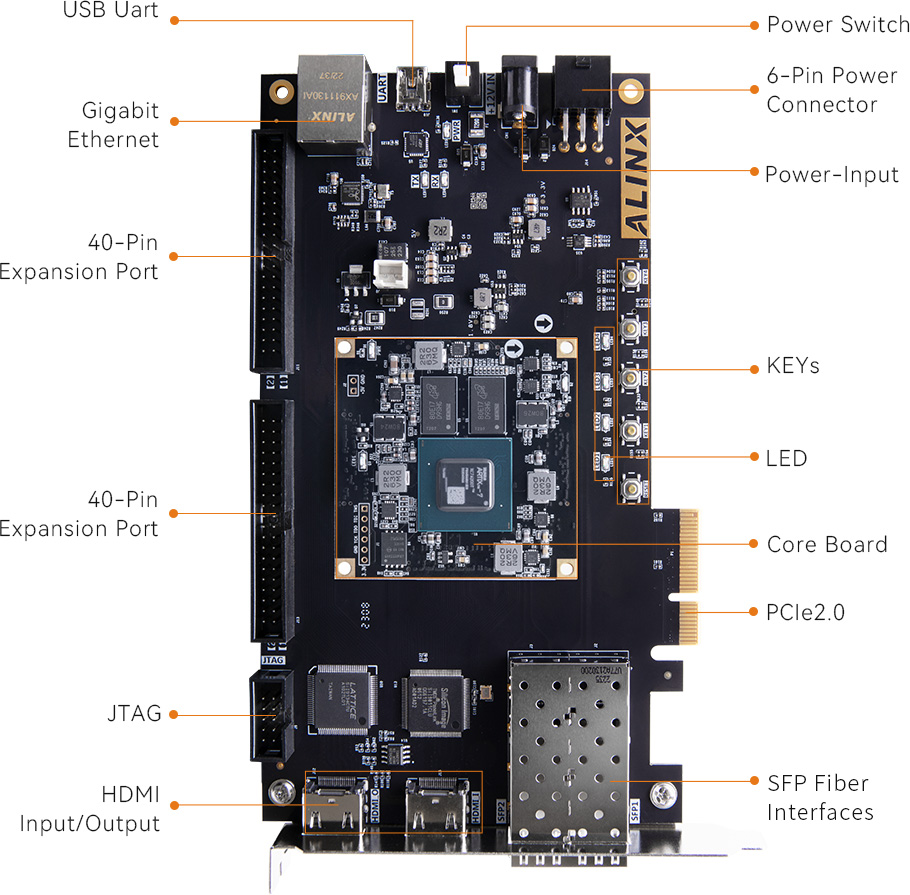

PCIe2.0 Interface
Provides a Standard PCIe 2.0 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud
SFP x2
The Receiving and Transmitting speed of Each Channel is up to 6.6Gb/s
Gigabit Ethernet
10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
HDMI input/Output
HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output
USB Uart
Used for Serial Communication with PC or External Devices
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
SD Card Slot
1 Micro SD Card Slot, Support ted SD Mode and SPI Mode
LEDs
5 User LEDs（1 LED in Core Board, 4 LEDs in the Carrier Board)
KEYs
4 User Keys, 1 Reset Key.
40-Pin Expansion Ports
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )
Voltage Input
+12V DC
Current Input
Max. Current 3A
FPGA Board
1
Heat Sink ( Fixed on the Board )
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1
PCIe Fence
1

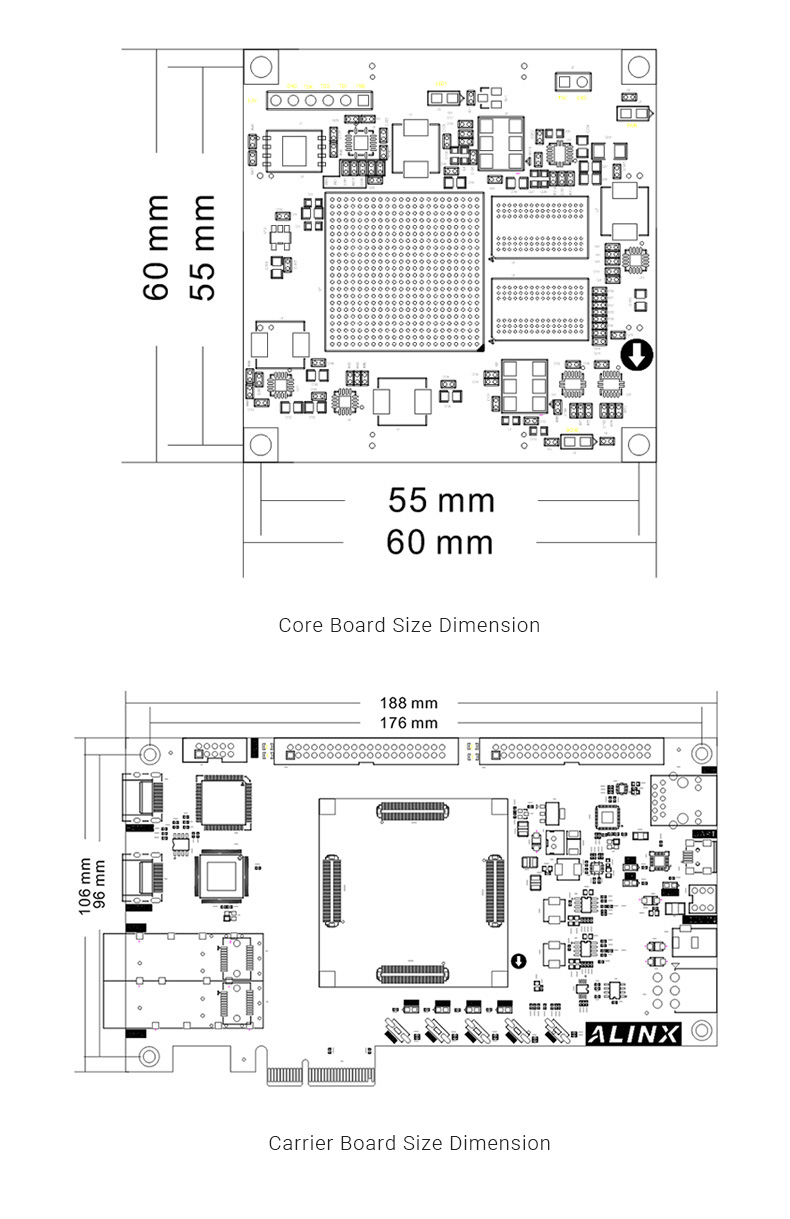

Size Dimension
Core Board 2.36 inch x 2.36 inch, Carrier Board 7.40 inch x 4.17 inch
Number of Layers
10-Layer Core Board PCB, 6-Layer Carrier Board PCB
Industrial Ethernet, Video processing and transmission Optical Fiber Communication, Data transfer exchange
Expansion Interface Connects Binocular Camera Module Realize SPF Video Transmission
The FPGA Development Board Collects Video Images through the Camera Module, and Transmits it to another FPGA Development Board through the SFP Interface. After the SFP Interface Receives the Data, Displayed it to the Monitor through the HDMI Interface.
Optical Transceiver Communication Eye Diagram
Verify PCIE Solutions and Accelerate PCIE Development
The video signal is collected through the HDMI input interface uploaded to the computer through the PCIE interface, and the upper computer displays the collected video image in real time
The Host Computer Grabs the Computer Desktop, and Transmits it to the FPGA through the PCIE Interface. The FPGA Outputs through the HDMI Interface, and the Monitor Displays in Real Time
Meet Various PCIe High-Speed Data Transmission, Video Image Processing and Industrial Control Requirements
Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.
AN9767 / AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
