XCKU040
Model
ACKU040Temperature class
-40℃~85℃Ean
6971390279984Price
$ 1000
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU2CG
Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z035
Xilinx ZYNQ7000 SoC SOM FPGA Core XC7Z020
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU7EV
Xilinx Kintex UltraScale+ FPGA Core Board Evaluation Boards & Kits SOM PCIE3.0 GTY XCKU5P ACKU5

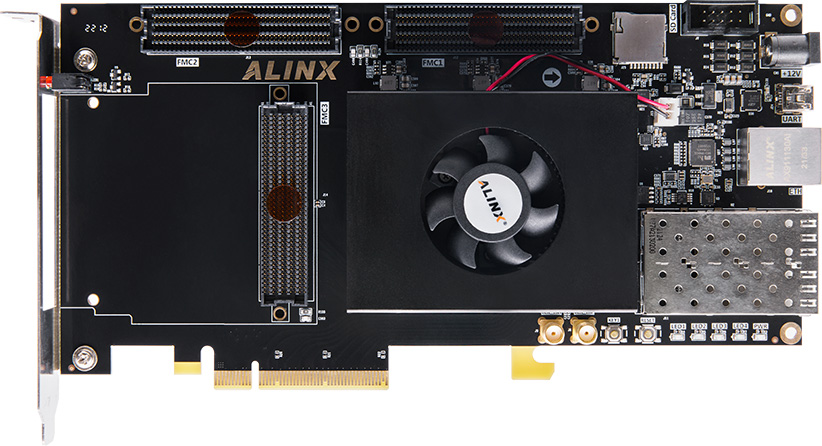

*Learn about the corresponding development board, click to view the details>>
Core board
ACKU040
ACKU060
FPGA Chip
XCKU040-2FFVA1156I
XCKU060-2FFVA1156I
Chip Level
Industrial, Grade -40°C~85°C
Industrial, Grade -40°C~85°C
DDR4
4GB DDR4, 64bit
4GB DDR4, 64bit
QSPI Flash
32MB
32MB
Logic Cells
530K
726K
CLB LUTs
242,400
331,680
CLB flip-flops
484,800
663,360
Max. Distributed RAM (Kb)
7,050
9,180
Block RAM (36Kb each)
600
1080
Total Block RAM
21.1 Mb
38.0Mb
DSP Slices
1,920
2,760
GTH Transceiver
20x 12.5Gbp
20 x 12.5Gbp
PCI Express
PCIE 3.0
PCIE 3.0
HR IO
255
255
HP IO
99
99
LVDS
120
120
DDR4
4GB, 64bit, 2400Mbps
QSPI Flash
256 Mbit, Used as FPGA User Data Storage
Ｃrystal Oscillator
200Mhz Provide Stable Clock Source for the FPGA System
120 Pin Expansion Ports
4 x 120Pin + 2 x 80pin, Panasonic Industrial Grade High-Speed Inter-Board Connectors
IO
The 6 board-to-board connectors expand 359 I/Os, of which 104 I/O levels are 3.3V and the other BANKI/O is 1.8V. In addition, 20 pairs of high-speed transceiver GTH interfaces have been expanded
LED
1 Power Indicator (PWR), 1 Configure LED Light (DONE)
Powered
12V/3A
FPGA SoM Board
1
Size Dimension
3.15 inch x 2.36 inch x 0.382 inch
Number of Layers
18-Layer Core Board PCB

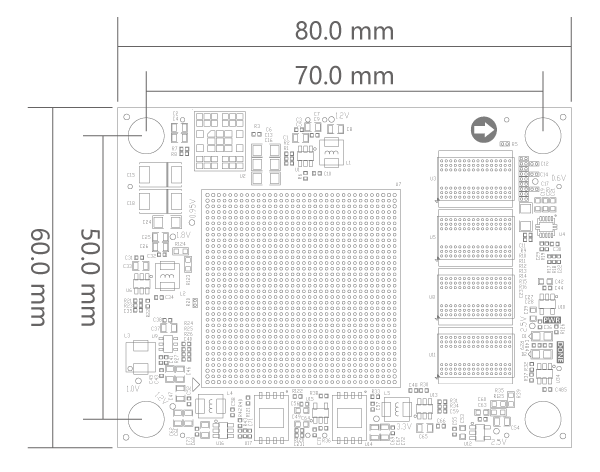

TOP

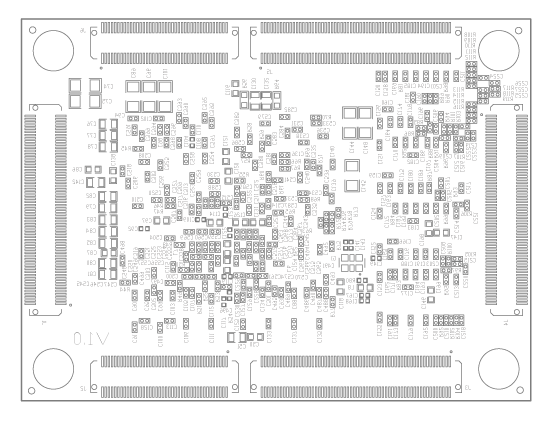

Bottom
Shorten Learning and Development Time
Provide Schematic, PCB, Size Dimension, Packageand Reference Design, that to Accelerate the Development of products with Core Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
