XCZU7EV
Model
ACU7EVCTemperature class
-40℃~85℃Ean
6971390271872Price
$ 2080Combination of Mali-400 MP2 GPU and 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4Kx2K (60fps) video Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, Data Exchange and Storage, Embedded Vision
4x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
Mali?-400 MP2 GPU
PS 4GB DDR4, PL 4GB DDR4
8GB eMMC FLASH, 64MB QSPI FLASH
*Learn about the corresponding development board, Click to see details>>
SoM Module
ACU7EVC
FPGA Chip

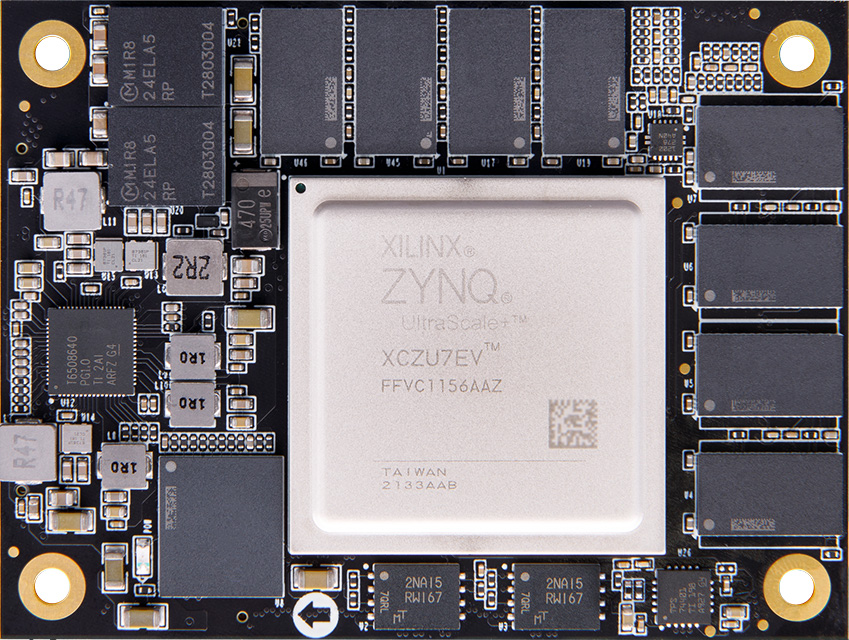

XCZU7EV-2FFVC1156I
Chip CPU
4x ARM Cortex?-A53, 1.333GHz; Cortex?-R5 x2, 533MHz
RAM
PS DDR4 4GB, 64bit, 2400Mbps
PL DDR4 4GB, 64bit, 2400Mbps
GPU
Mali-400 MP2, 677MHz
Chip Level
Speed Grades -2, Industrial Grade, Working Temperature -40°c~85°c
PS side High-Speed Connection
PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet
PS side General Connection
2x USB2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
Logic Cells
504K
Look Up Tables ( LUTs )
230.4K
Total Block RAM
11Mb
Global Clock
8
eMMC FLASH
8GB
Video Codec
H.264 / H.265
Transceiver
12.5Gb/s x16
HD I/O
46
Trigger
460.8K
Max. Distributed RAM ( Mb )
6.2Mb
UltraRAM ( Mb )
27Mb
DSP Slices
1728
QSPI FLASH
64MB
PL PCIe Gen3 x16
2
HP I/O
142
VCU
1 Video Codec Unit ( VCU ), integrated H.264 / H.265 video codec
QSPI Flash
2 Pieces totally 64 Mbit QSPI Flash, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as Large-Capacity Storage System
40-120 Pin Expansion Ports
Panasonic Industrial Grade High-Speed Inter-Board Connectors
Ｃrystal Oscillator
32.768KHz Provide RTC (Real Time Clock) for the PS system
33.333MHz Provide Clock input for the PS system
200MHz PL System Clock Source for DDR4 Controller Reference Clock
Voltage Input
Board to Board Connector, +12V DC
FPGA SoM Board
1
Size Dimension:
3.15 inch x 2.36 inch
Connector Height
0.36 Inch
Number of Layers
16-Layer Core Board PCB
Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things
Vehicle Identification
Infrared Vehicle Recognition
Pedestrian Recognition
Indoor Person Recognition
Fire Detection
Hard Hat Detection
Concrete Defect Detection
PCB Defect Detection
Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM
4x ARM Cortex-A53, 1.333GHz; Dual Core Cortex?-R5, 533MHz; PS 4GB DDR4, 64bi, Data rate 2400Mbps; PL 4GB DDR4, 64bit, Data rate 2400Mbps
HD Video Concept Design
Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications
Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
