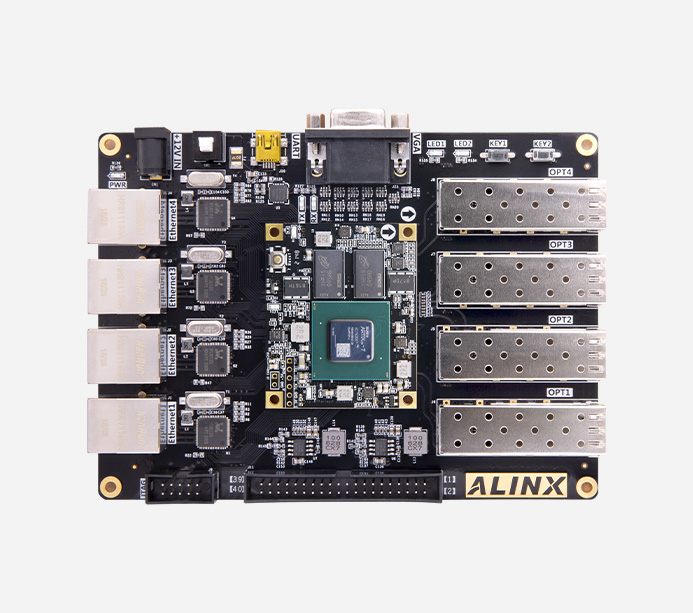

XC7A200T
Model
AX7201Price
$ 520
Apply to Multi-Channel Video Transmission Network and SFP communication High-Speed Data Transmission and Exchange
Supporting Verilog HDL Demos and Docuemnts,All Doucments Saved in Dropbox, after buy the board, email to get it.
00. vivado 2019.1 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. FPGA on-chip ROM read and write experiment
07. FPGA on-chip RAM read and write experiment
08. FPGA on-chip FIFO read and write experiment
09. VGA Test Experiment
10. DDR3 Read Write and Simulation Experiment
11. Recording and playback Experiment of AN831 Module
12. Character Display Experiment
13. OV5640 Camera Display Experiment
14. SOBEL Edge Detection Experiment
15. AD9238 Waveform Dispaly Experiment
16. AD7606 Waveform Display Experiment
17. ADDA Testing Experiment
18. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
19. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
20. Gigabit Ethernet transmission experiment
21. AD9238 Chip Ethernet Transmission
22. AD7606 Chip Ethernet Transmission Experiment
23. AD9280 Chip Ethernet Communication
24. Gigabit Ethernet Video Transmission Experiment
25. GTP Fiber Optic Communication Testing Experiment
26. GTP Fiber Optic Data Communication Experiment

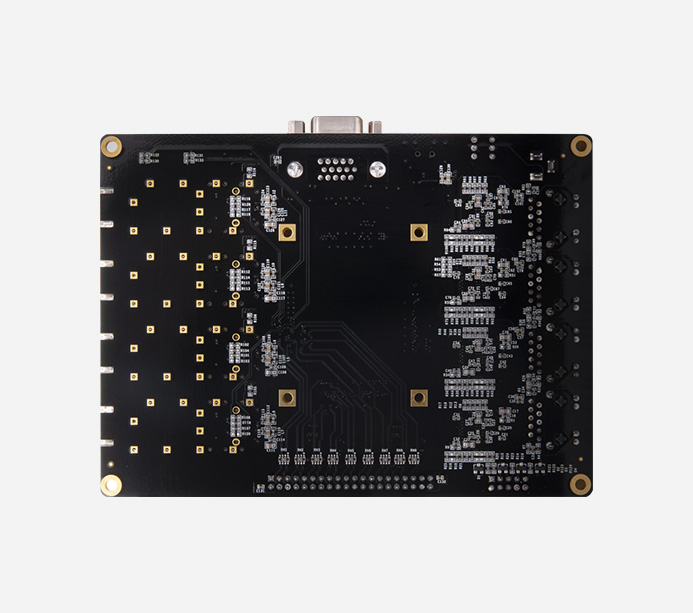

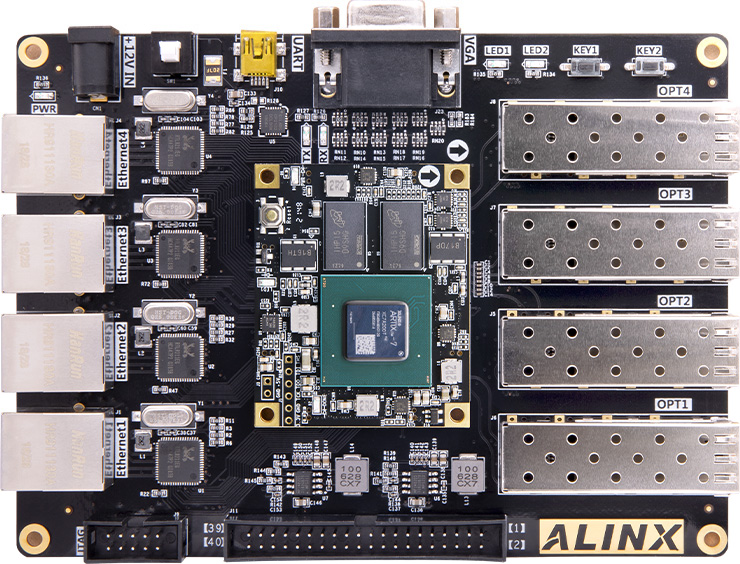

FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
4.3-inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
*Core Board , Click to Purchase >>
Core Board
AC7200
FPGA Chip
XC7A35T-2FGG484I
Speed Grades
-2
Chip level
Industrial grade, -40°c~85°c
RAM
1GB DDR3, 32bit
QSPI FLASH
16MB
Logic cells
215360
Look Up Tables
33650
trigger
269200
Max.Distributed RAM
2888
Block RAM (36Kb each)
365
Total Block RAM
13140kb
DSP Slices
740
Transceiver
4x 6.6 Gbps
PIC Express
PCIE 2.0
HR IO
180
Differential pair LVDS
48
Power Connector
80pin x4
DDR3
2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
128 Mbit, Used as FPGA User Data Storage
Crystal Oscillator
200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver
Transceiver
4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication
SFP Interface
2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s
Gigabit Ethernet
Two 10 / 100 / 1000M Ethernet with RJ-45 Interfaces for Data Exchange
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
USB Uart
Used for Serial Communication with PC or External Devices

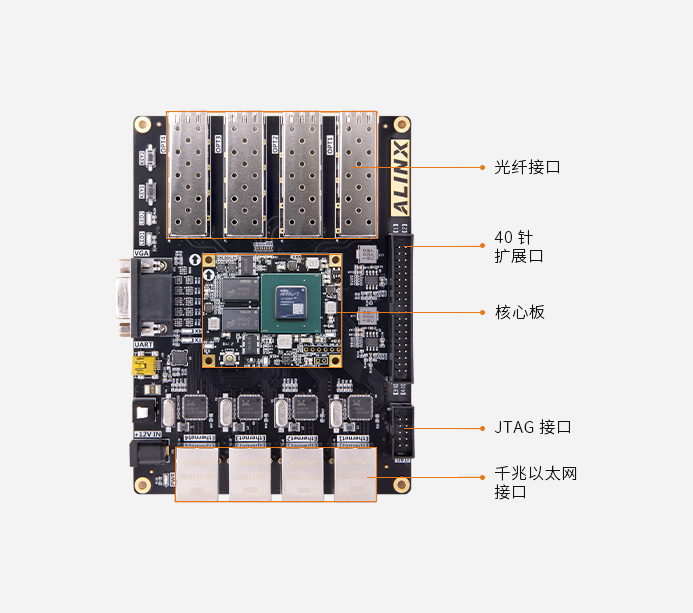

40-Pin Expansion Ports
One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ).
VGA
16-bit color VGA Analog Output, RGB565 Format

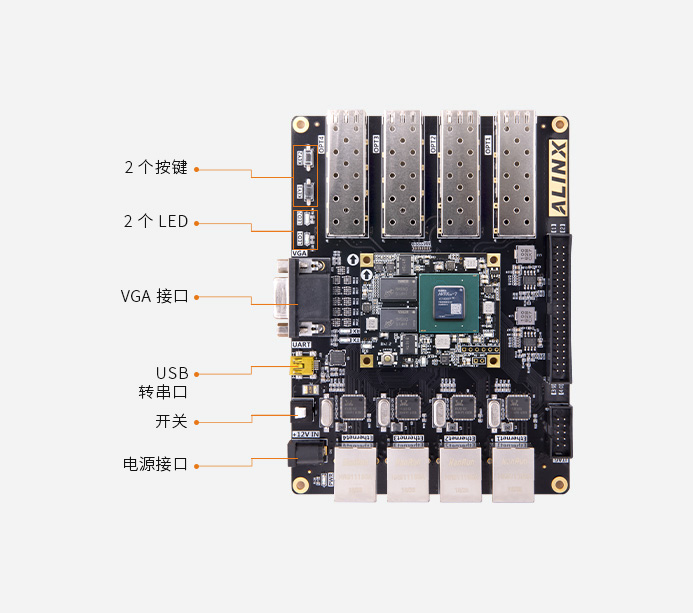

LEDs
1 LED in Core Board, 2 LEDs in the Carrier Board
KEYs
2 User KEYs
Voltage Input
+12V DC
Current Input
Max. Current 3A
FPGA Board
1
Heat Sink (Fixed on the Board)
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1
Transparent Protection Board
1

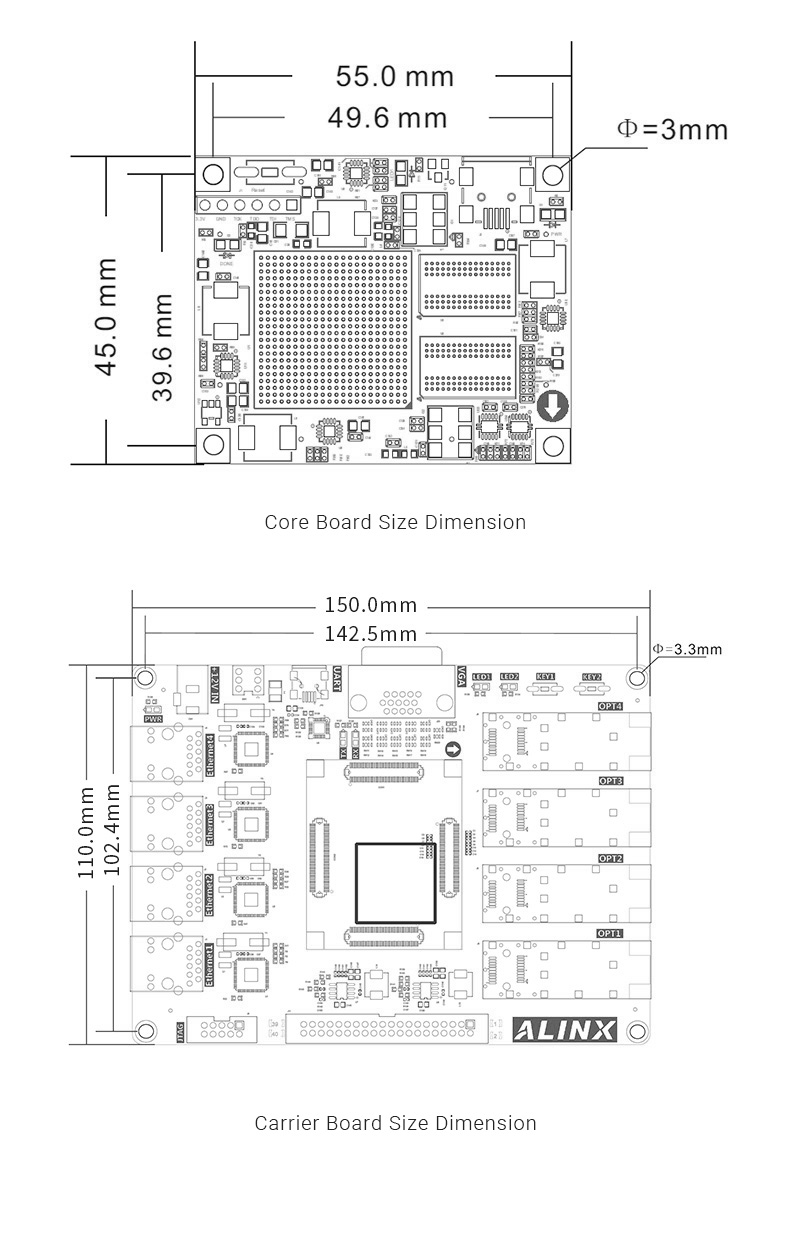

Size Dimension
Core Board 2.17 inch x 1.77 inch, Carrier Board 5.91 inch x 4.33 inch
Number of Layers
8-Layer Core Board PCB, 4-Layer Carrier Board PCB Reserve Independent Power Layer and GND Layer
Industrial Ethernet, Multi-Channel Video Transmission Multi-Channel Network and SFP Communication High-Speed Data Transmission Exchange
Expansion Interface Connects Binocular Camera Module Realize SPF Video Transmission
The FPGA Development Board Collects Video Images through the Camera Module,and Transmits it to another FPGA DevelopmentBoard through the SFP Interface.
After the SFP Interface Receives the Data, Displayed it to the Monitor through the VGA Interface.
SFP Transceiver Communication Eye Diagram
AN9767 / AN706 Module On-Board Demo
* The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
* The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
