XC7Z100
Model
AX7Z100/ AX7Z100BEan
6971390271155Price
$ 1500Notice for purchase:
This series of development boards include AX7Z100 and AX7Z100B.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
Apply to PCIe, Video Image Proessing SFP / Ethernet Communicaion
Supporting Verilog HDL Demos and Docuemnts Linux Kernel: petalinux 4.9.0-xilinx-v2017.4 All Doucments Saved in Dropbox, after buy the board, email to get it.
Course S1 Basic Tutorial
01: Software Package Introduction and FPGA Board Inspection
02: Introduction to ZYNQ
03: Vivado development environment
04: PL's "Hello World" LED experiment
05: HDMI output experiment
06: HDMI Pass-through ILA Debugging Experiment
07: PL-side DDR3 read and write test
08: GTX transceiver bit error rate test IBERT experiment
09: Experience ARM, bare metal output "Hello World"
10: PS lights up the LED lights of the PL
11: PS timer interrupt experiment
12: PL button interrupt experiment
13: Ethernet Experiment ( LWIP )
14: Custom IP experiment
15: Use VDMA to drive HDMI display
16: Curing Programs
17: PCIE Testing
18: PCIe transmits video to HDMI display
19: HDMI video input to PCIe capture display
20: Developing PCIe under Linux
21: Install virtual machine and Ubuntu system
22: Ubuntu installs the Vivado software for Linux
23: Petalinux tool installation
24: NFS service software installation
25: Customizing Linux with Petalinux
26: Develop Linux programs using the SDK
27: GPIO experiment under Linux
28: HDMI display under Petalinux
29: Use the Debian 8 desktop system
30: Making QSPI Flash booted Linux
31: QSPI and EMMC boot Linux
Course S2 SDK Application Tutorial
01: PS side UART read and write control
02: Use of XADC
03: PL read and write PS DDR data
04: Realize PS and PL data interaction through BRAM
05: Use of dual core AMP
06: Use of“Free RTOS”under ZYNQ
07: DMA loop test
08: Use of DMA-DAC waveform generator ( AN108 )
09: Use of DMA-ADC oscilloscope ( AN108 )
10: Use of DMA-ADC oscilloscope ( AN926 )
11: Use of DMA-ADC oscilloscope ( AN706 )
12: Use of the SG DMA based on ADC module ( AN926 )
13: Use the SG DMA based on DAC module ( AN9767 )
14: OV5640 camera acquisition display (1)
15: OV5640 camera acquisition display (2)
16: Binocular camera Ethernet transmission
17: Use of 7 inch LCD module
18: Use of 7-inch touch screen disaply
19: SD card read and write operation BMP picture display
20: SD card read and write operation camera capture
21: Ethernet Transmission ADC Acquisition Based on AN926 Module
22: Ethernet Transmission ADC Acquisition Based on AN706 Module
23: Ethernet Transmission ADC Acquisition Based on AN108 Module
24: Remote update QSPI Flash based on UDP / TCP
Course S3 HSL Application Tutorial
01: Getting to Know HLS
02: Status Indicator LED
03: Floating Point Coprocessing
04: Video Color Bar
05: Realize PS and PL data interaction
06: Video Frame Buffer Read and Write Management
07: Image Scaling Overlay
08: Character Overlay
09: Image Contrast Adjustment
10: Auto Focus
11: Edge Detection
12: Corner Detection
13: Fast Fourier Transform
Course S4 Linux Application Tutorial
01: QT application on ZYNQ
02: OpenCV Application ( USB Camera Display ）
03: Binocular Camera Module OpenCV Display
04: Touch screen module application
05: AXI DMA Read and Write Test
06: DMA-based ADC Waveform Display ( AN926 )
07: DMA-based ADC Waveform Display ( AN706 )
08: Autorun petalinux application
09: Appendix - Linux Common Commands
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
Downloader Cable USB
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
7-inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
*Learn More about the Core Board, Click to View >

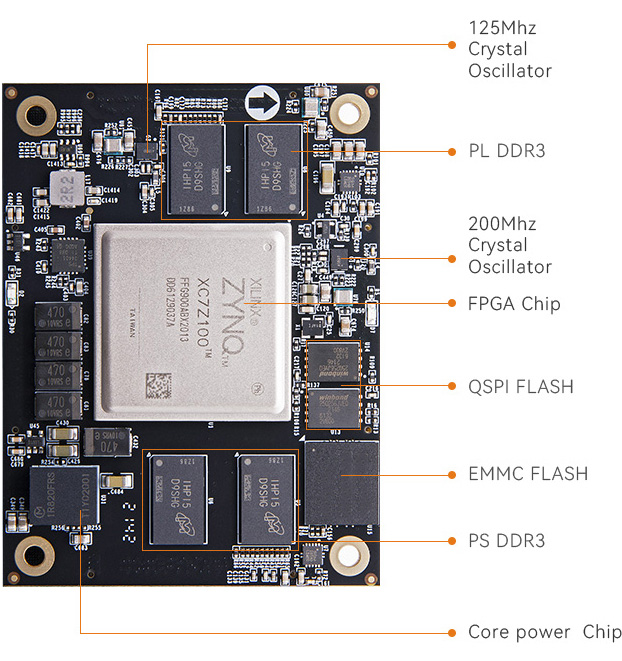

FPGA Board
AX7Z100
FPGA Chip
XC7Z100-2FFG900I
Kernel
Dual-Core ARM Cortex-A9 Main Frequency 800MHz
PL -end RAM
1GB DDR3, Data Rate 1600Mbps
PS -end RAM
1GB DDR3, Data Rate 1066Mbps
Speed Grades
-2
Chip Level
Industrial Grade
Working Temperature
-40°C~85°C
Logic Cells
444K
Look Up Tables (LUTs)
277400
CLB Flip-Flops
554800
Multiplier
2020
Transceivers
16-Channels, Support PCIE Gen2 x8
Block RAM
25.6Mbit
MIO
37
PL IO
162
Voltage Adjustable IO
96
LVDS
48 Pairs
DDR3
32bit Bus, Data Rate 1066Mbps
QSPI Flash
512Mbit QSPI FLASH, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as a Large-Capacity Storage Device in the ZYNQ System
Transceivers
16GTX, Each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

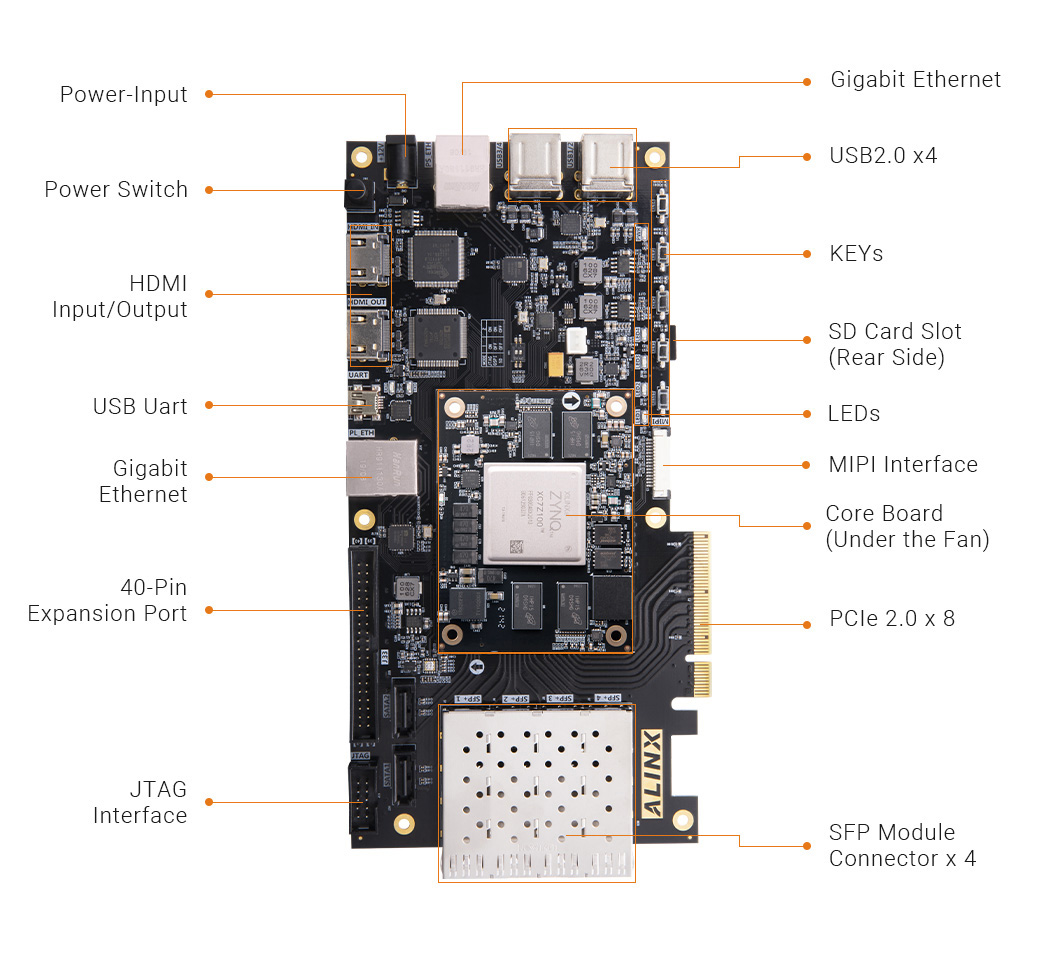

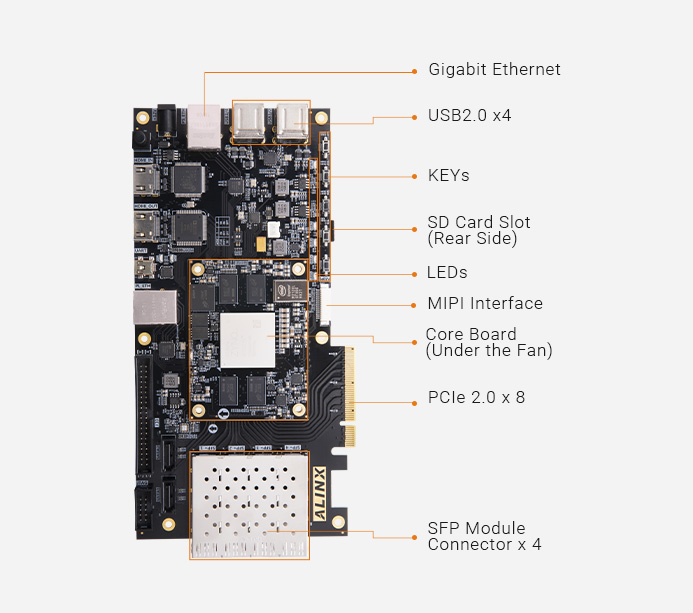

SFP Interface
4-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s
PCIe 2.0
PCIe 2.0 x8 Data Transmission Interface Single Channel Communication Rate up to 5GBaud
Ethernet Interface
Two 10 / 100M / 1000M Ethernet RJ-45 Interfaces for Data Exchange
JTAG
Standard JTAG Port for Debug and Download of FPGA Program
HDMI
HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats
USB 2.0 x4
Used for Connect USB Peripherals such as Mouse, Keyboard.
USB Uart
Used for Serial Communication with PC or External Devices
Crystal Oscillator
33.333Mhz Provide Stable Clock Source for the PS System
200Mhz Provide DDR Reference Clock for the PL Logic
125Mhz Provide Reference Clock for the GTX Transceiver
Micro SD Card Slot
SD TF Card to Store Operating System Image and File System
LED
9 LEDs lights, 2 LEDs in the Core Board, 7 LEDs in the Carrier Board.
KEYs
5 Keys and 1 Reset Key, 4 PL User Keys
40-Pin Expansion Ports
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).
Voltage Input
+12V DC
Current Input
Max. Current 2A
FPGA Board
1
USB Downloader Cable
1
Mini USB Cable
1

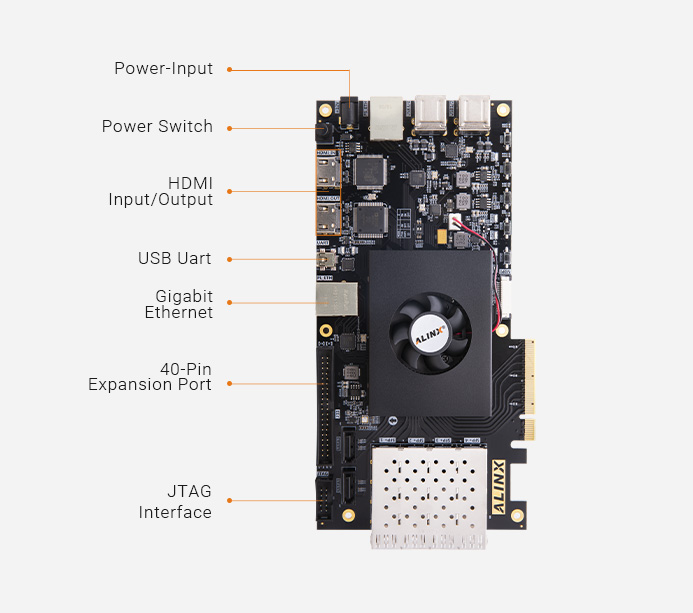

DC Fan ( Fixed on the Board )
1
12V Power Adapter
1
Card Reader
1
TF Card
1
PCIe Fence
1
Size Dimension
Core Board 3.15 inch x 2.36 inch, Carrier Board 9.25 inch x 4.33 inch
Number of Layers
12-Layer Core Board PCB, 4-Layer Carrier Board PCB
Industrial Ethernet, Video Transmission Gigabit Ethernet and SFP Communication High-Speed Data Transmission Exchange
Optical Fiber Test Eye Diagram Each Optical Fiber Data Communication is up to 10Gb/s
Meet PCIe Data Transmission and Video Image Processing
PCIe 2.0 x4 Read and write test
HDMI Video Input to PCIe Capture Display
PASS High and Low Temperature Test
Security, Video Image Collection and Transmission Data Processing, Face Detection
Develop and Manage the System Interface
AN9767 / AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module,
and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,
Run the System to Draw the Waveform Data, and is Displayed to the
Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
