XC7Z010
Model
AX7010Ean
6971390270523Price
$ 200Supports Python Development
AX7010 Supporting Verilog HDL Demos and Docuemnts
All Doucments Saved in Dropbox, after buy the board, email to get it.
Course S1 Basic Tutorial
01: Software Package Introduction and FPGA Board Inspection
02: Introduction to ZYNQ
03: Vivado development environment
04: PL's "Hello World" LED experiment
05: HDMI output experiment
06: Experience ARM, bare metal output "Hello World"
07: PS lights up the LED lights of the PL
08: PS timer interrupt experiment
09: PL key interrupt experiment
10: Ethernet Experiment ( LWIP )
11: Custom IP experiment
12: Use VDMA to drive HDMI display
13: Curing Programes
14: Install Virtual Machine and Ubuntu System
15: Ubuntu installs the Vivado software for Linux
16: Petalinux tool installation
17: NFS service software installation
18: Customizing Linux with Petalinux
19: Develop Linux programs using the SDK
20: GPIO experiment under Linux
21: HDMI display under Petalinux
22: Use the Debian desktop system
23: Making QSPIFlash boot Linux
24: NFS service software installation
Course S2 SDK Application Tutorial
01. Experience ARM, bare metal output "Hello World"
02: PS Timer Interrupt Experiment
03: Use of PS end MIO
04: Use of PS end EMIO
05: Use of PL end AXI GPIO
06: Ethernet Experiment
07: Custom IP experiment
08: PS side UART read and write control
09: Use of XADC
10: Use of Dual Core AMP
11: Use of“Free RTOS”under ZYNQ
12: PL read and write PS DDR data
13: Realize PS and PL data interaction through BRAM
14: Using VDMA to Drive HDMI Display
15: DMA loop test
16: Use of DMA-DAC waveform generator ( AN108 )
17: Use of DMA-ADC oscilloscope ( AN108 )
18: Use of DMA-ADC oscilloscope (AN9238)
19: Use of DMA-ADC oscilloscope (AN706)
20: Use the Scatter/Gather DMA Based on ADC Module ( AN108 )
21: Use the Scatter/Gather DMA Based on DAC Module（ AN9767 ）
22: OV5640 camera acquisition display (1)
23: OV5640 camera acquisition display (2)
24: Binocular camera Ethernet transmission
25: SD card read and write operation BMP picture display
26: SD card read and write operation camera capture
27. Audio Module AN831 Recording and Playback
28: Use of 7 inch LCD Module
29: 7-inch Touch Screen GUI and Touch Control
30: Ethernet Transmission ADC Acquisition Based on AN108 Module
31: Ethernet Transmission ADC Acquisition Based on AN9238 Module
32: Ethernet Transmission ADC Acquisition Based on AN706 Module
33: Remote update QSPI Flash based on UDP / TCP
Course S3 Linux Application Tutorial
01: Install virtual machines and Ubuntu systems
02: Install Linux version of Vivado software on Ubuntu
03: PetaLinux Tool Installation
04: NFS Services Software Installation
05: Customizing Linux systems using PetaLinux
06: Developing Linux programs using the SDK
07: Developing Linux programs using the SDK
08: HDMI display under PetaLinux
09: Using Debian 8 desktop system
10: Creating QSPL Flash to Start Linux
11: QT application on ZYNQ
12: OpenCV Application（ USB Camera Display ）
13: Binocular Camera Module OpenCV Display
14: Touch screen module application ( AN0701 )
15: AXI DMA Read and Write Test
16: DMA-based ADC Waveform Display ( AN706 )
17: Autorun petalinux application
18: Appendix - Linux Common Commands
Course S4 PYNQ Tutorial
01: PYNQ Introduction
02: PYNQ Get Started Quickly
03: Run PYNQ
04: Amba file sharing
05: Frequently asked question
06: USB camera edge detection
07: USB camera face recognition
08: Custom Overlays based on register operations
09: Custom Overlays Contained DMA Operations
10: ADC acquisition and display the waveform
Course S5 Linux Driver Tutorial
01: Character Device
02: A new way of writing character devices
03: Device Tree and of Function
04: Pinctrl and gpio subsystem
05: Concurrent Processing
06: Gpio input
07: Timer
08: Interrupt
09: Blocking IO
10: Non-Blocking IO
11: Asynchronous IO
12: Platform
13: Platform and Device Tree
14: MISC device driver
15: Input subsystem
16: Pwm Drive
17: I2C Driver
18: USB Driver
19: SPI Drive
20: Uart Driver
21: Block Device Driver
22: NIC driver
23: DMA Driver
24: Multi-touch screen driver
25: LCD Drive
Product Package
AN831 Collection Package
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video package
Luxury Package
FPGA Board
●
●
●
●
●
●
AN831
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular camera
●
●
7-inch LCD
●
●
Package supporting module, click to learn more

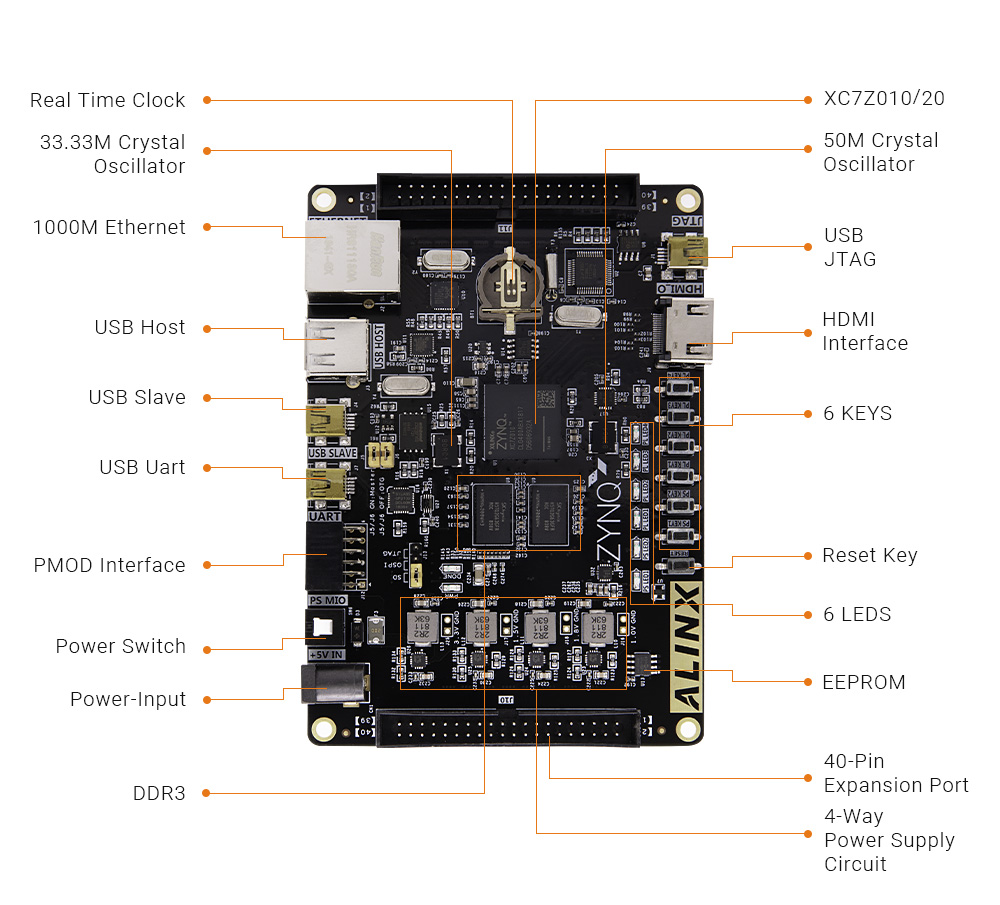

FPGA Board
AX7010
FPGA Chip
XC7Z010-1ClG400I
Kernel
Dual-Core ARM Cortex-A9
RAM
DDR3 512MB, 32bit Bus, Data Rate 1066Mbps
Logic Cells
28k
Look-Up Tables ( LUTs )
17600
CLB Flip-Flops
35200
Multiplier
80
Block RAM
2.1Mb
PS MIO
8
PL IO
94
JTAG
1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader Use USB Cable and Onboard JTAG, Debug and Download ZYNQ System
Gigabit Ethernet
10 / 100 / 1000M Adaptive Ethernet Interface with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment
HDMI
HDMI Image and Video Input / Output Interface, Supports 1080@60Hz
USB HOST
Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk
USB OTG
Used for OTG Communication with PC or USB Device
ＵSB Uart
Used for Serial Communication with PC or External Devices
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220（ Voltage 3V, buy it yourself ）
EEPROM
EEPROM 24LC04 with IIC Interface
LED
6 User LEDs, 2 Controlled by PS, 4 Controlled by PL
Keys
7 Keys, 1 CPU Reset Key, 2 PS Control keys, 4 PL Control Keys
Crystal Oscillator
33.333Mhz, Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic
TF Card Slot
Insert Micro SD TF Card, Store Operating System Image and File System
PMOD
12-Pin Connectors ( 0.1 inch Pitch ), Expand the MIO of ZYNQ PS System
Expansion Port
Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the IOs of ZYNQ PL Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules.
Voltage Input
+5V DC
Current Input
Max. Current 2A
FPGA Board
1
TF CARD
1
Mini USB Cable
2
Card Reader
1
5V Power Adapter
1
Transparent Protection Board
1

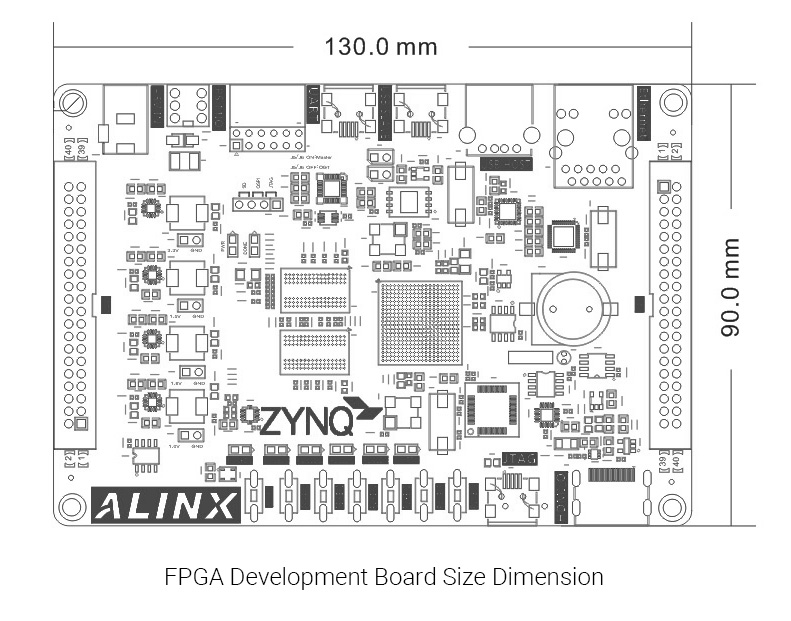

Size Dimension
5.12 inch x 3.54 inch
Number of Layers
8-Layer PCB, Reserved Independent Power Layer and GND Layer
With a Super Combination of Memory DDR3
CPU Main Frequency 666MHz; RAM 512MB

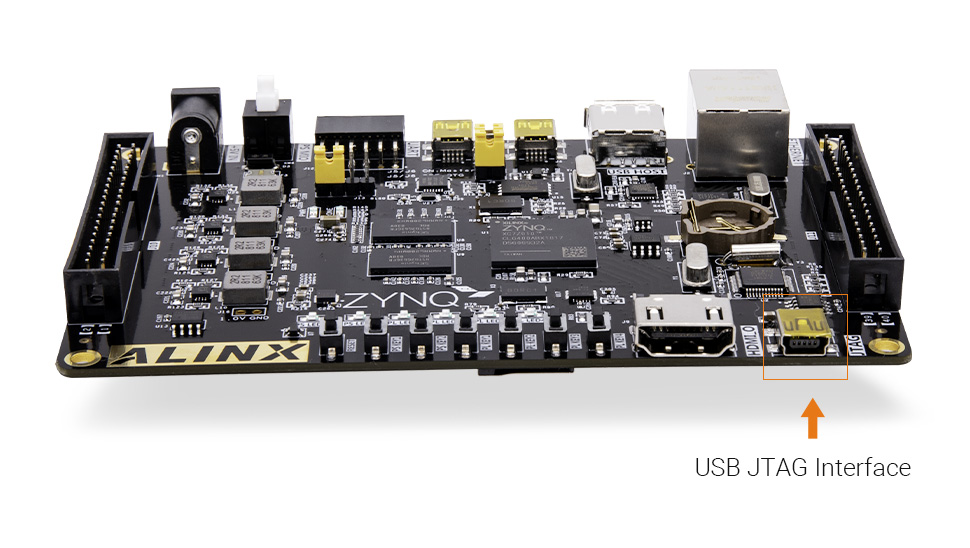

Integrated Download and Debug Circuit Complete Functions and Fast Speed
Intelligent Identification, Medical Security, Vehicle Digital, Industrial Control, Smart Grid
Dual Lens Camera Module On-Board Demo
The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the ZYNQ Development Board. The ZYNQ Development Board Runs the Linux Operating System, and the Video Data is Displayed Using QT to Realize Binocular Display Simultaneously.
AN9767 / AN706 Module On-Board Demo
The Signal Source Output Signal is Connected to the AN9767 / AN706 Module, and is Displayed to the Monitor through the HDMI Interface of the ZYNQ Development Board. Run the Linux Operating System and use QT to Draw Waveform Data. The Whole Process Involves Data Transmission Between PL and PS, and Software Development under the Linux System.
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
