Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU5EV

XCZU5EV

Model
ACU5EV
Email
David.ding@alinx.com
Temperature class
-40℃~85℃
Ean
6971390278819
Price
$ 1140

Details
Download
Service

Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

Quad Core ARM Cortex-A53+ Dual Core ARM Cortex-R5

Mali-400 MP2 GPU, 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4K x 2K (60fps) videc Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, High-speed Data Exchange and Storage and other Embedded Vision

·ARM CPU
4x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
·GPU Graphics Processor
Mali?-400 MP2 GPU

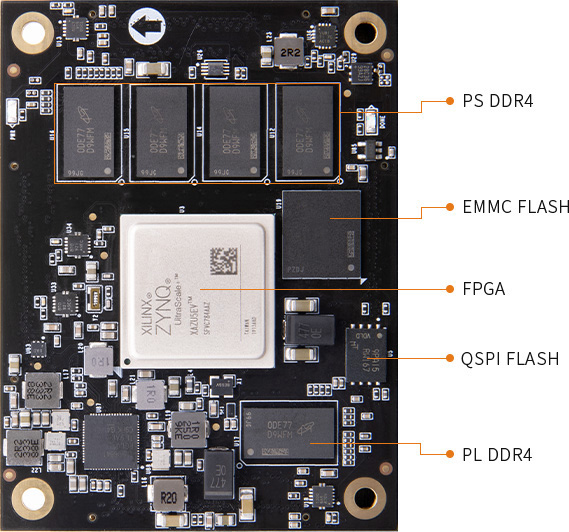

·5GB DDR4
PS 4GB DDR4, PL 1GB DDR4
·FLASH Storage
8GB EMMC FLASH, 64MB QSPI FLASH

key Features

Corresponding Development Board

·AXU5EV-E

*Learn about the corresponding development board, Click to see details>>

·AXU5EV-P

*Learn about the corresponding development board, Click to see details>>

Product Performance

Main Parameters

Core board

ACU5EV

FPGA Chip

XCZU5EV-2SFVC784I

Processor Core

4x Cortex?-A53, 1.333GHz; Dual Core Cortex?-R5, 533MHz

Processor Core

Mali?-400 MP2

RAM

PS DDR4 4GB, 64bit, 2400Mbps
PL DDR4 1GB, 16bit, 2133Mbps

PS-end High Speed Connection

PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS-end General Connection

2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL PCIe Gen3

PCIe Gen3 x4

PL GTH Transceiver

12.5Gb/s x4

Chip Level

Industrial Grade

Temperature

-40°c~85°c

Speed Grades

-2

Logic Cells

256K

Look Up Tables (LUTs)

117K

DSP Slices

1248 ( 18x 25MACCs )

CLB Flip-Flops

234K

Block RAM

5.1Mb

EMMC FLASH

8GB

QSPI FLASH

256Mbit

HP I/O

HD I/O

Interface and Function

VCU

Video Codec Unit ( VCU ), Integrated H.264 / H.265 video codec

QSPI Flash

256 Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports

Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator

33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input

+5V DC

Package List

FPGA SoM Board

Structure Size

Size Dimension

3.15 inch x 2.36 inch

Connector Height

0.12 Inch

Number of Layers

16-Layer Core Board PCB


XILINX VITIS-AI DPU

AI Recognition and Detection, Deep Computational Learning

Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things

Vehicle Identification

Infrared Vehicle Recognition

Pedestrian Recognition

Indoor Person Recognition

Fire Detection

Hard Hat Detection

Concrete Defect Detection

PCB Defect Detection

Super Combination with Mali?-400 MP2 GPU, 64bit DDR4 RAM

Industiral Grade Chip Dual ARM Application Processor

4x ARM Cortex-A53,1.2GHz; Dual Core Cortex?-R5, 500MHz; PS 4GB DDR4, 64bit, Data rate 2400Mbps; PL 1GB DDR4, 16bit, Data rate 2133Mbps

HD Video Concept Design

H.264 / H.265 Video Codec

Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications


Get Started Quickly ，Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
