Xilinx Kintex UltraScale FPGA Development board Evaluation Boards & Kits FMC HPC PCIE XCKU040 AXKU042

    XCKU040

    • Model

      AXKU042
    • Email

      David.ding@alinx.com
    • Ean

      6971390271759
    • Price

      $ 1400

    Related


    Xilinx Kintex UltraScale FPGA PCIE 3.0 High end development board

    • ·2x 10G SFP+Optical fiber interface

    • ·4GB DDR4, 64bit

    • ·2x LPC,1x HPC FMC Expansion Interface




    Technical support

    All supporting materials for the development board are provided through Baidu Netdisk. After purchasing, please contact customer service to request them.


    01. LED Flowing Water Lamp Experiment under Vivado
    02. Vivado Button Experiment
    03. Serial port transceiver experiment
     04. Button shake elimination experiment
    05. LM75 temperature test
    06. SD card reading and writing experiment
    07. I2C interface EEPROM experiment
               08. DDR4 Reading and Writing Test Experiment


    09. FPGA on-chip ROM read and write test
    10. FPGA on-chip RAM read and write test
    11. FPGA on chip FIFO read and write test
    12. Gigabit Ethernet Transmission Experiment
    13. GTH Fiber Optic Communication Test Routine
    14. GTH fiber optic data transmission routine
                   15. PCIe testing program

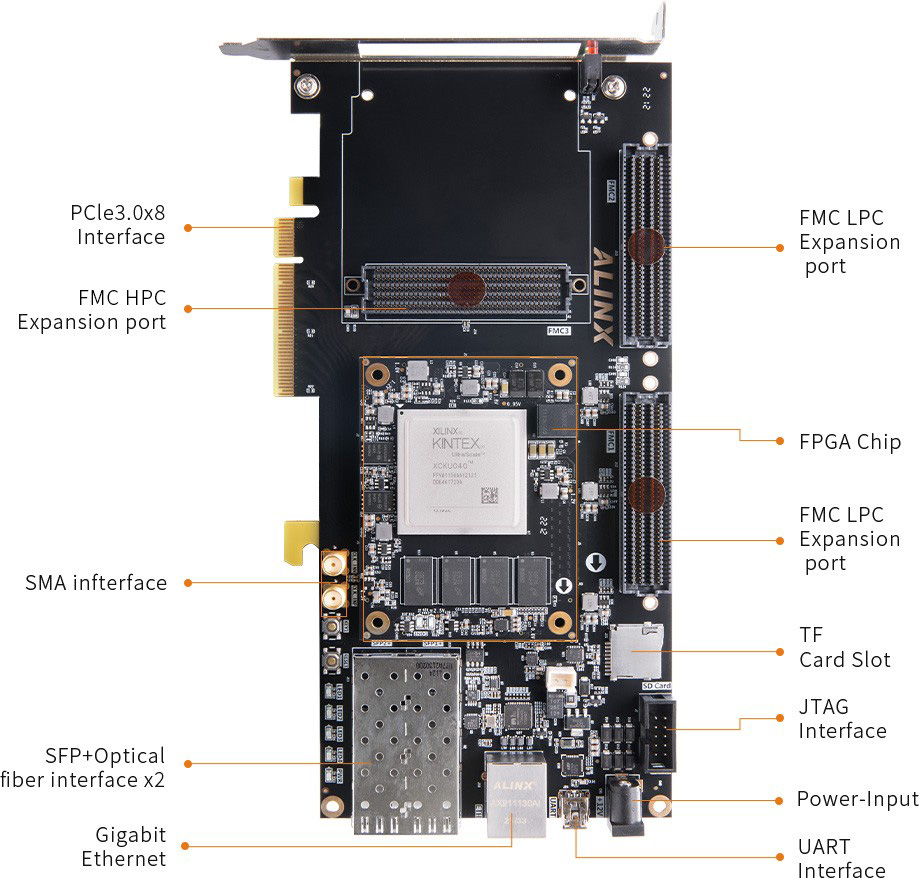

    Functional Interface

    ·FPGA Chip



    *For more information on the Core Board click >>

    ·Development board




    Product Parameters

    Core Board Parameters

    FPGA Chip

    XCKU040-2FFVA1156I

    Chip level

    Industrial Grade

    DDR4

    4GB DDR4, 64bit

    Logic Cells

    530K

    CLB LUTs

    242,400

    CLB Flip-Flops

    484,800

    Max. Distributed RAM (Kb)

    7,050

    Block RAM (36Kb each)

    600

    Total Block RAM

    21.1Mb

    DSP Slices

    1920

    transceiver

    20x 12.5Gbps

    PCI Express

    PCIE 3.0

    HR IO

    255

    HP IO

    99

    LVDS

    120

    Interface and Function

    DDR4

    4x 1GB DDR4

    QSPI Flash

    Two 128Mbit QSPI flash memory chips can be used to store FPGA chip configuration files and user data

    Optical fiber interface

    2-way SFP + optical fiber interface to realize 2-way high-speed optical fiber communication interface. The receiving and transmitting speed of each channel of optical fiber data communication is as high as 12.5Gb/s

    FMC Extension interface

    Three standard FMC expansion ports, including two LPC expansion ports and one HPC expansion port. External Xilinx or alinx FMC daughter boards ( HDMI input and output module, binocular camera module, high-speed AD module, etc )

    PCIE X 8 Interface

    1-way PCIE3.0 x8 interface for PCIE data communication with PCs

    USB Uart

    1 Uart to USB interface for communication with computer and user debugging

    Ethernet interface

    One 10 / 100m / 1000m Ethernet RJ45 interface is used for Ethernet data exchange with computers or other network devices

    SMA interface

    2-way SMA External Interface for External High Speed Input and Output Signals

    Crystal Oscillator

    Two 156.25Mhz differential crystal oscillator, which gives the transceiver a reference clock

    JTAG

    10-pin 2.54mm standard JTAG port for downloading and debugging of field programmers

    Temperature Sensor

    Sensor Chip LM75A, Used to Detect the Ambient Temperature

    EEPROM

    One EEPROM for LC bus communication and storage of customer-defined information

    SD Card Slot

    1-way Micro SD card holder for data read, write and storage of SD card by GA

    LEDs

    1 power indicator, 4 user lights, 2 panel lights

    KEYs

    1 reset button, 1 normal IO connected to the GA

    Power Supply Parameters

    Voltage Input

    +12V DC

    Current Input

    Max. Current 3A

    Package List

    FPGA Board

    1

    DC Fan ( Fixed on the Board )

    1

    Mini USB Cable

    1

    USB Downloader Cable

    1 Set

    12V Power Adapter

    1

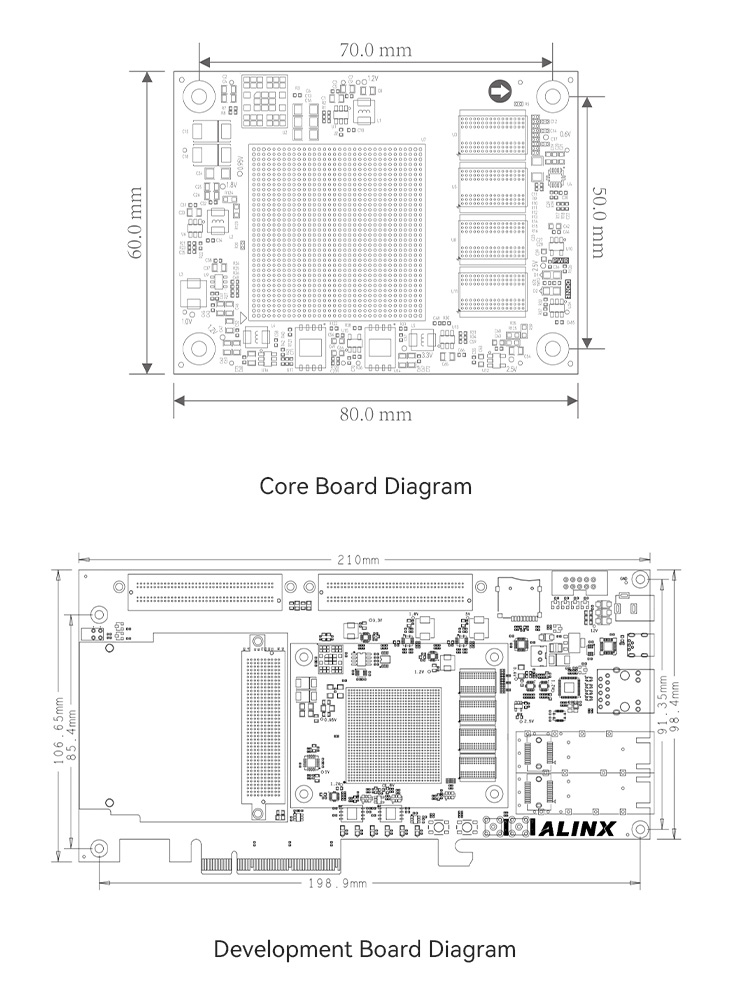

    Structure Size

    Size Dimension

    210mm x 106.65mm

    Number of Layers

    Core panel 18 PCB board design, extension panel 12 PCB board design, reserve separate power layer and GND layer


    Rich extension interface

    High-Speed Transmission

    High speed optical fiber communication, video processing, high-speed data transmission processing, etc




    Support the requirements of high-speed data transmission and exchange, data storage, video transmission processing and industrial control, and the verification in the early stage of project development

    Rich peripheral interfaces: 2× 10G SFP+optical interface, 3 FMC extension interfaces ( 1 HPC, 2 LPC ), 1 Gigabit Network port, 1 UART serial port, 1 SD card interface, LED keys and so on

    SFP Optical Fiber Interface

    SFP Transmission Communication



    The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
